OrderableProgram Generator for Windows (SCWin)
Overview

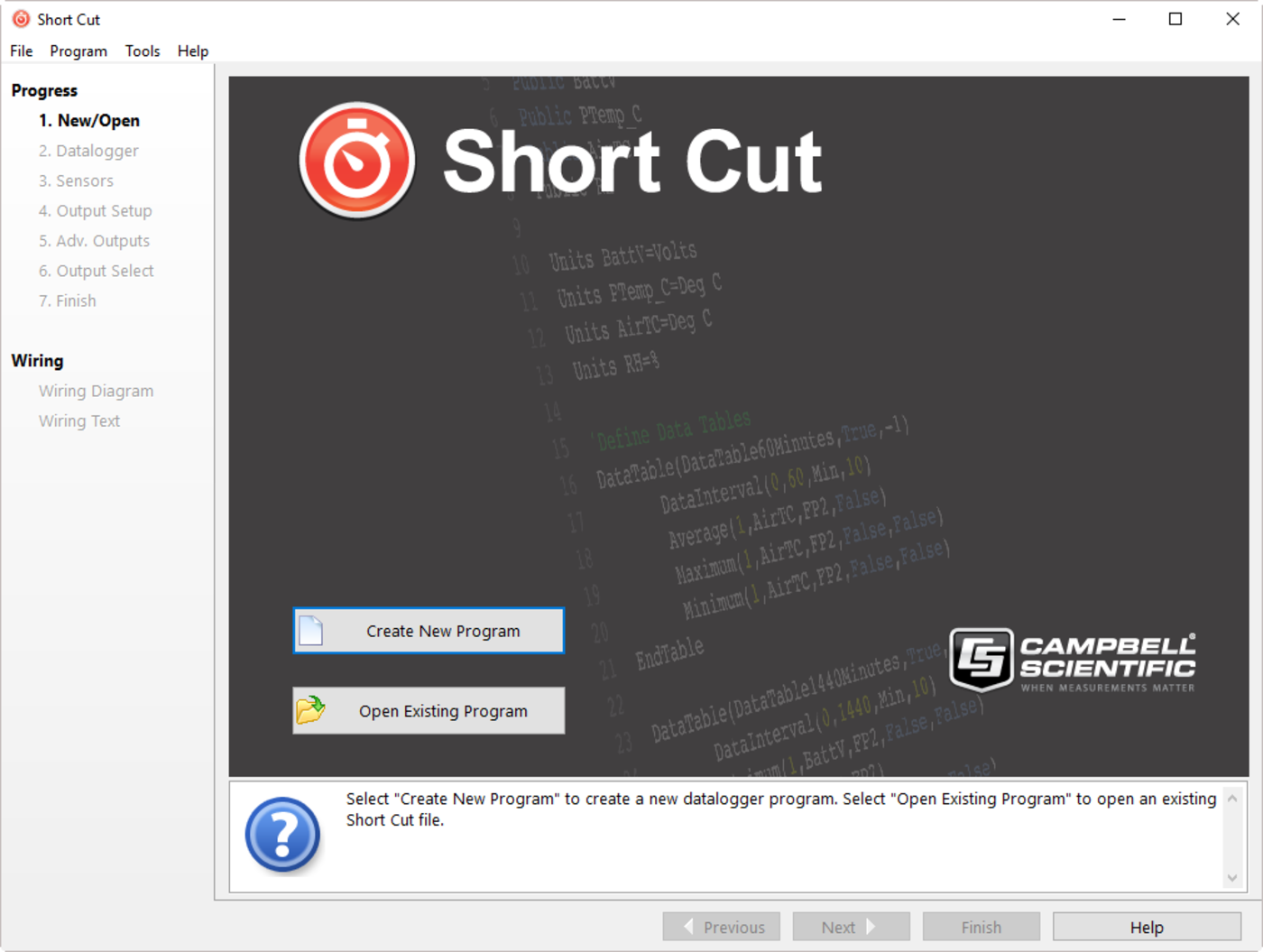

Short Cut Program Generator (SCWin) is a free, menu-driven, PC-compatible software package that simplifies the creation of data logger programs; it creates a data logger program in seven easy steps.
Note: Short Cut is included with PC400 and LoggerNet software, so no additional download of Short Cut is necessary if you are using either of these programs. To download Short Cut separately, visit the Downloads section below or click the Download Now button above.
Key Advantages
Simple way to generate data logger programs
Technical Description
Originally intended to support meteorological and hydrological applications, the initial releases of Short Cut (SCWin) supported over 120 sensors. Now, with additional program generation capabilities, Short Cut supports programming for our multiplexers, AVW200-series Vibrating Wire Interfaces, ET107 stations, ET106 stations, MetData1 stations, and most sensors that can be measured by our data loggers.
Short Cut allows the user to select sensors and choose output data. Short Cut then creates a wiring diagram and a program file for transfer to the data logger. It also includes support for algebraic entry of expressions.
Benefits
- Creates a data logger program in seven easy steps.
- Generates a printable wiring diagram.
- Supports both standard sensors and generic measurements (e.g., bridge, pulse).
- Supports the AM25T, AM16/32B, AM16/32A, AM16/32, AM416, and AM32 multiplexers.
- Supports CDM and GRANITE VOLT Analog Input Modules.
- Supports GRANITE TEMP Thermocouple Modules.
- Supports the AVW200 2-Channel Vibrating Wire Analyzer Module.
- Supports ET106, ET107, and MetData1 Weather Stations.
- Includes a reference crop evapotranspiration calculation module and other mathematical calculations.
- Can be downloaded free of charge; see Downloads section or Download Now button on web page.
Specifications
- Operating System
- Windows 11 and 10
(Both 32- and 64-bit operating systems are supported.)
- Requirement
- .NET 4.0
- Purchased Separately
- Free download
- Software Level
- Entry
- Communications Supported
- N/A
(program generator only)
- Scheduled Data Collection Supported
- N/A
(program generator only)
- Data Display Supported
- N/A
(program generator only)
