SDS511
SDS511
End of lifeDual CS I/O Port Adapter
Pricing
- Model:
- SDS511
- Item Number:
- 17144
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview

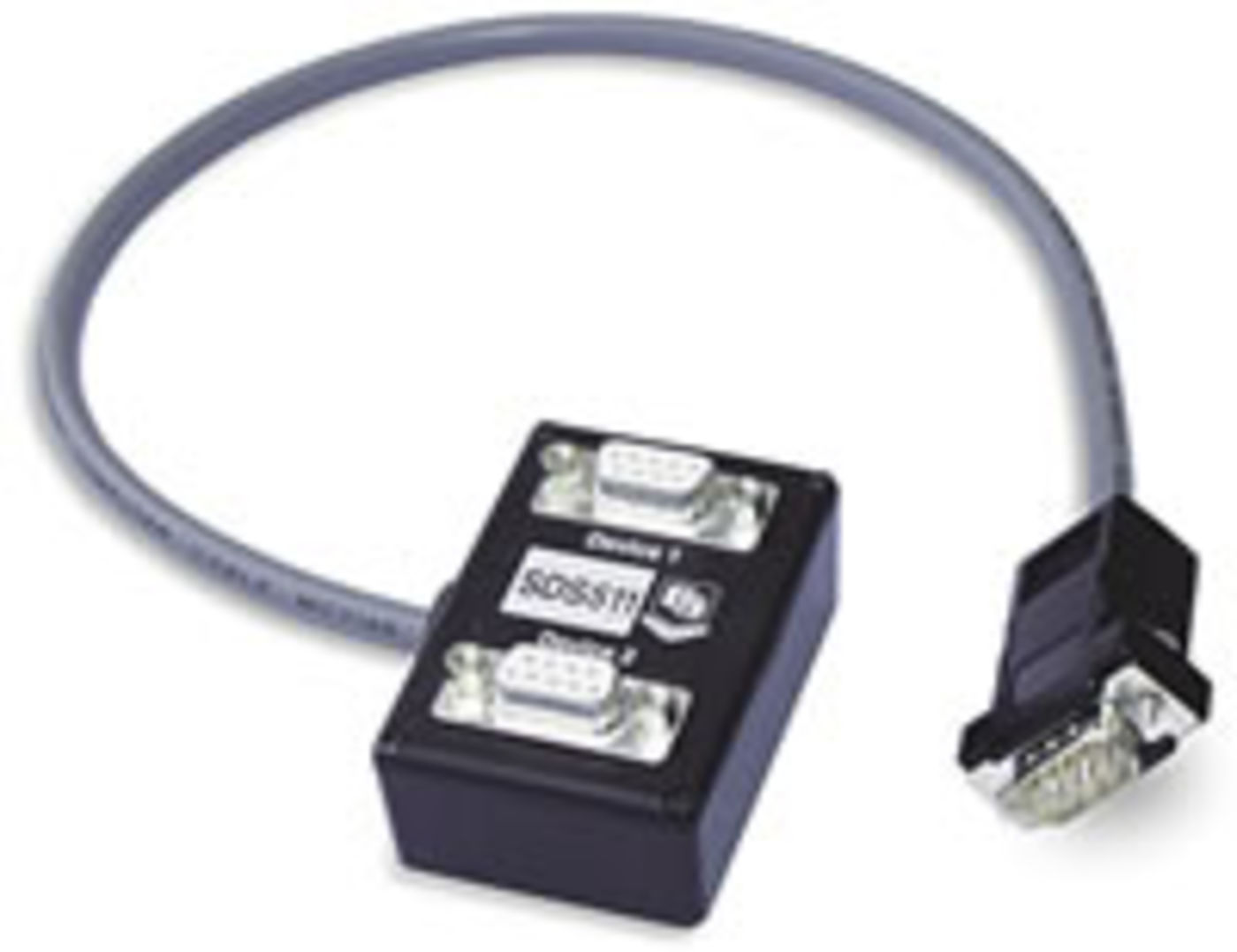

The SDS511 dual port adapter allows two communication devices to be connected to one data logger CS I/O port. Communications are determined on a first-come-first-served basis. The adapter DOES NOT support concurrent communications between the two devices and the CS I/O port. Therefore, Campbell Scientific recommends the SDS511 for devices that only access the CS I/O port intermittently.
Technical Description
The SDS511 dual port adapter allows two communication devices to be connected to one data logger CS I/O port. Communications are determined on a first-come-first-served basis (that is, the adapter DOES NOT support concurrent communications between the two devices and the CS I/O port). Therefore, the SDS511 is recommended for devices that only access the CS I/O port intermittently.
Benefits
- Allows two communication CS I/O devices to be connnected to one data logger CS I/O port
- Recommended for devices that access the CS I/O port intermittently for a short duration
- Supports modem enabled (ME) device
Specifications
- Supply Voltage
- 5 Vdc
(supplied from the data logger)
- Typical Current Drain
- < 5 mA
(active)
- RH Range
- 0 to 90% RH
(non-condensing)
- Operating Temperature Range
- -25° to +55°C
- Cable Length
- 30.5 cm
(12 in.)
- Body Dimensions
- 4.3 x 6.4 x 3.3 cm
(1.7 x 2.5 x 1.3 in.)
- Weight
- 91 g
(3 oz)
