SDMX50SP
50 Ohm Coaxial Multiplexer with Strain-Relief Bracket
SDMX50SP
End of life50 Ohm Coaxial Multiplexer with Strain-Relief Bracket
Pricing
- Model:
- SDMX50SP
- Item Number:
- 10986
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
SDMX50SP 50 Ohm Coax Multiplexer w/Strain Relief Bracket

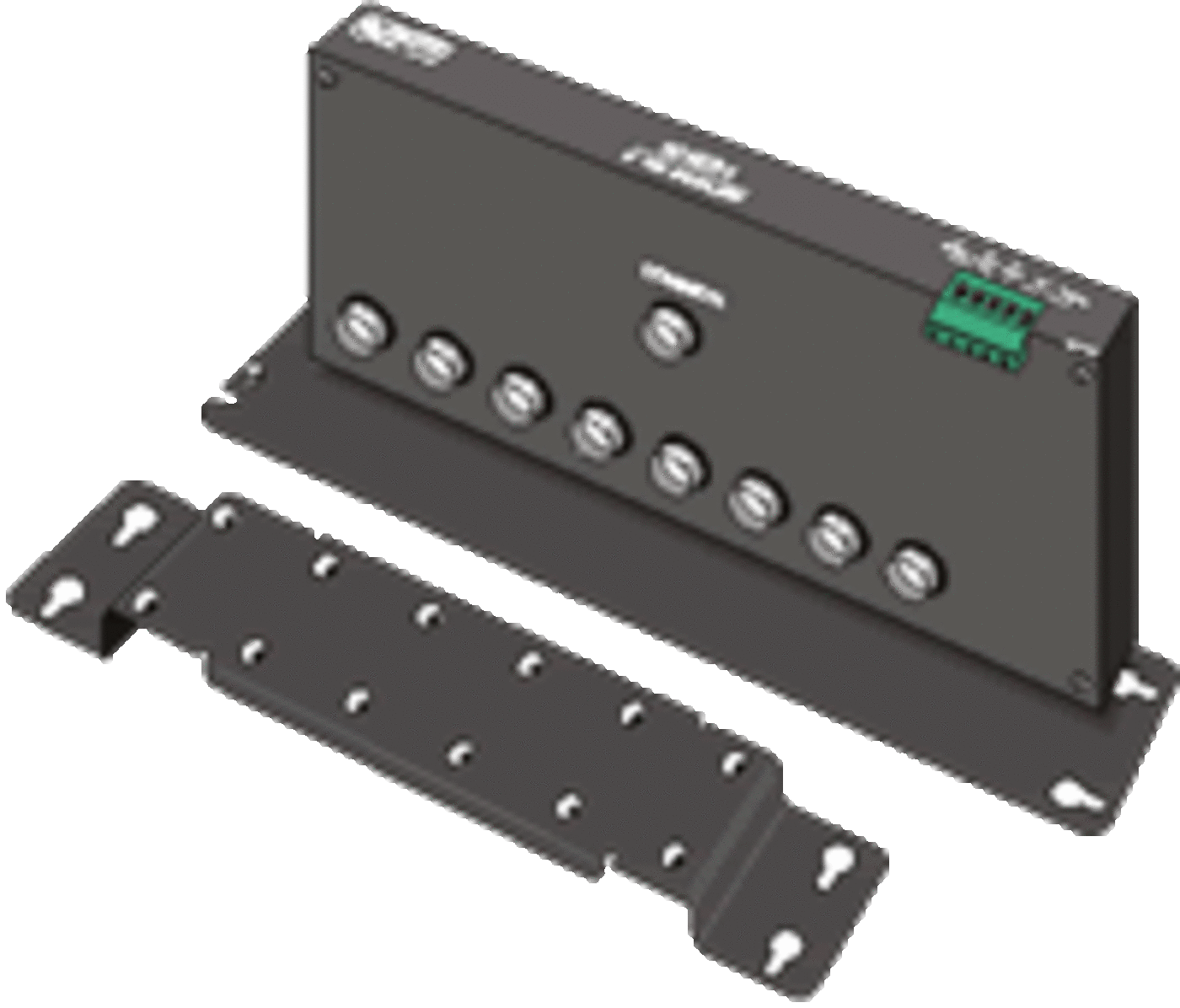

The SDMX50SP is one of three 50 ohm, coaxial, 8:1 multiplexers that can be used in a TDR100-based system. It consists of a surge-protected multiplexer circuit board enclosed in a metal housing and a separate strain-relief bracket. Both the multiplexer housing and strain relief bracket have holes drilled at a 1” spacing. This allows the SDMX50SP to be mounted onto a wall or attached to the backplate of a user-supplied enclosure or Campbell Scientific enclosure (e.g., ENCTDR100, ENC12/14, ENC16/18).
Specifications
- Multiplexer Housing Dimensions
- 24.9 x 12.2 x 4.6 cm
(9.8 x 4.8 x 1.8 in.) with mounts
- Strain Relief Bracket Dimensions
- 20.3 x 4.3 x 1.3 cm
(8.0 x 1.7 x 0.5 in.)
- Weight
- 590 g
(1.3 lb)
Power Requirements
- Input Power
- 12 Vdc
- Quiescent Current Drain
- < 1 mA
- Current Drain during Switching
- ~ 90 mA
(All multiplexers of the same level switch simultaneously for less than 1 s.)
