SDMX50LP
50 Ohm Coaxial Multiplexer with 10 x 12 Backplate (no enclosure)
SDMX50LP
End of life50 Ohm Coaxial Multiplexer with 10 x 12 Backplate (no enclosure)
Pricing
- Model:
- SDMX50LP
- Item Number:
- 10987
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
SDMX50LP 50 Ohm Coax Multiplexer w/10 x 12 Back Plate (No Enclosure)

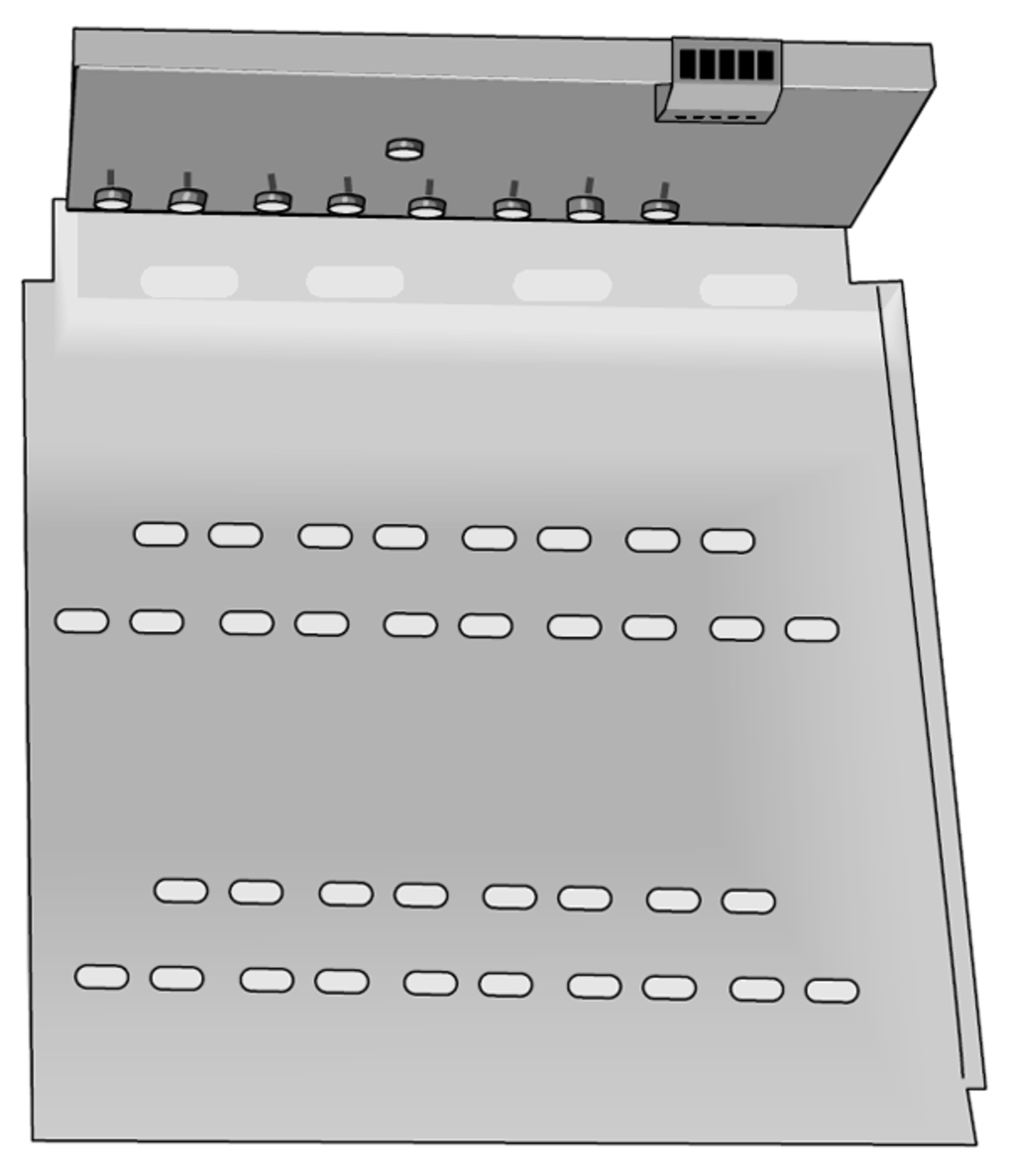

The SDMX50LP is one of three 50 ohm coaxial, 8:1 multiplexers that can be used in a TDR100-based system. This multiplexer was designed to be mounted inside of a user-supplied enclosure. It consists of a surge-protected multiplexer circuit board attached to one end of a powder-coated backplate. The multiplexer circuit board extends about 5” (13 cm) from the backplate, resulting in an L-shaped unit. Holes in the backplate provide strain relief for the coaxial cables.
Specifications
- Strain Relief Bracket Dimensions
- 26.7 x 27.9 x 1.3 cm
(10.5 x 11 x 0.5 in.)
- Circuit Board Dimensions
- 24.9 x 12.2 x 4.6 cm
(9.8 x 4.8 x 1.8 in.)
Power Requirements
- Input Power
- 12 Vdc
- Quiescent Current Drain
- < 1 mA
- Current Drain during Switching
- ~ 90 mA
(All multiplexers of the same level switch simultaneously for less than 1 s.)
