SDMX50
SDMX50
End of life50 Ohm Coaxial Multiplexer with Enclosure
Pricing
- Model:
- SDMX50
- Item Number:
- 17245
- Warranty:
- 1 year
Overview
The SDMX50 is available in a very limited supply. The SDMX50 will be replaced by the SDM8X50.

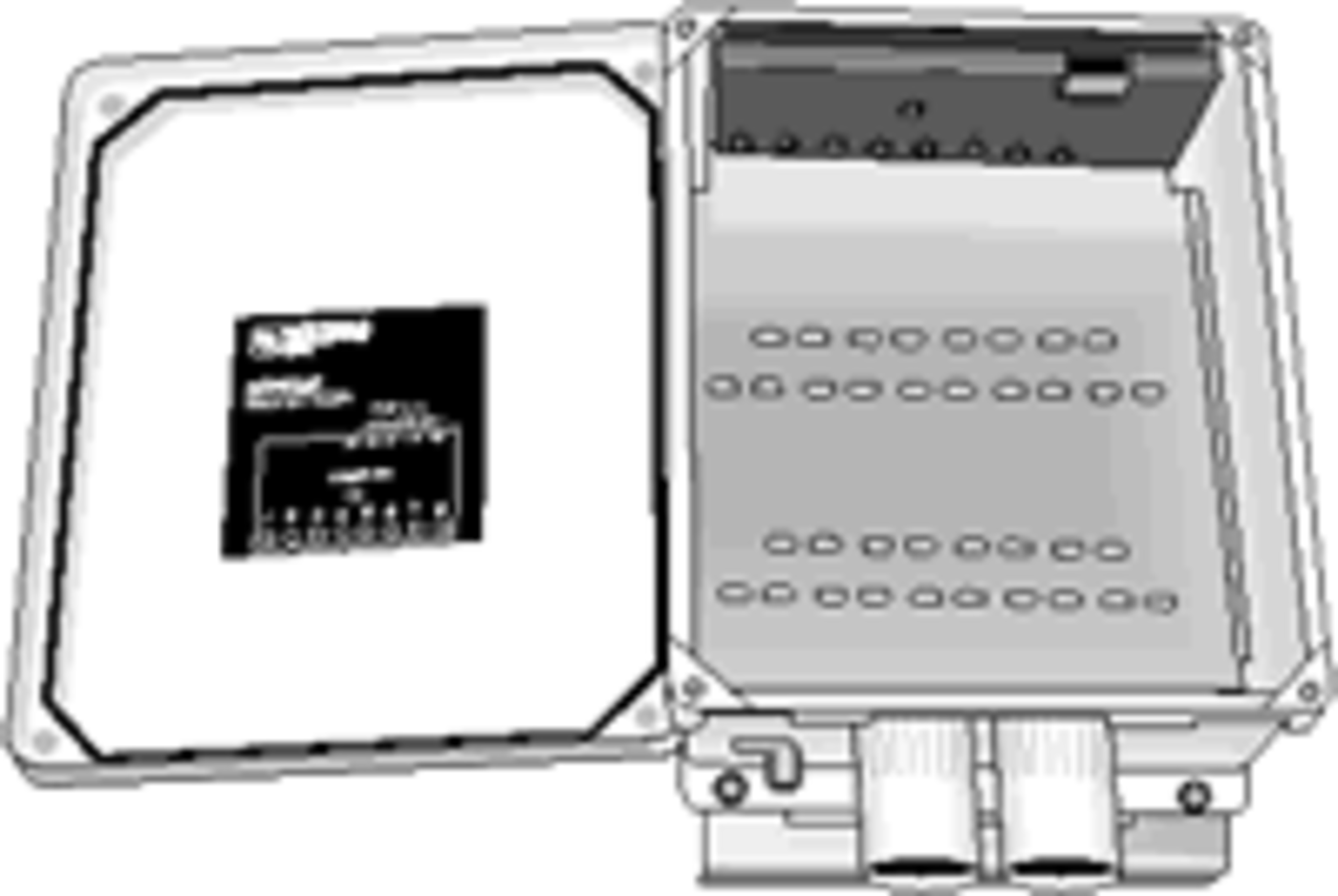

The SDMX50 is one of three 50 ohm, coaxial, 8:1 multiplexers that can be used in a TDR100-based system. It consists of a surge-protected multiplexer circuit board mounted in a 10" x 12" x 5" environmental enclosure. The enclosure's backplate provides a strain-relief point for the coaxial cables. Cable ties and desiccant are included.
Specifications
- Outside Dimensions
- 40.4 x 29.2 x 17.5 cm
(15.9 x 11.5 x 6.9 in.) with mounts
- Inside Dimensions
- 25.4 x 30.4 x 12.7 cm
(10 x 12 x 5 in.) for enclosure
- Weight
- 4.4 kg
(9.8 lb)
Power Requirements
- Input Power
- 12 Vdc
- Quiescent Current Drain
- < 1 mA
- Current Drain during Switching
- ~ 90 mA
(all multiplexers of the same level switch simultaneously for less than 1 s)
