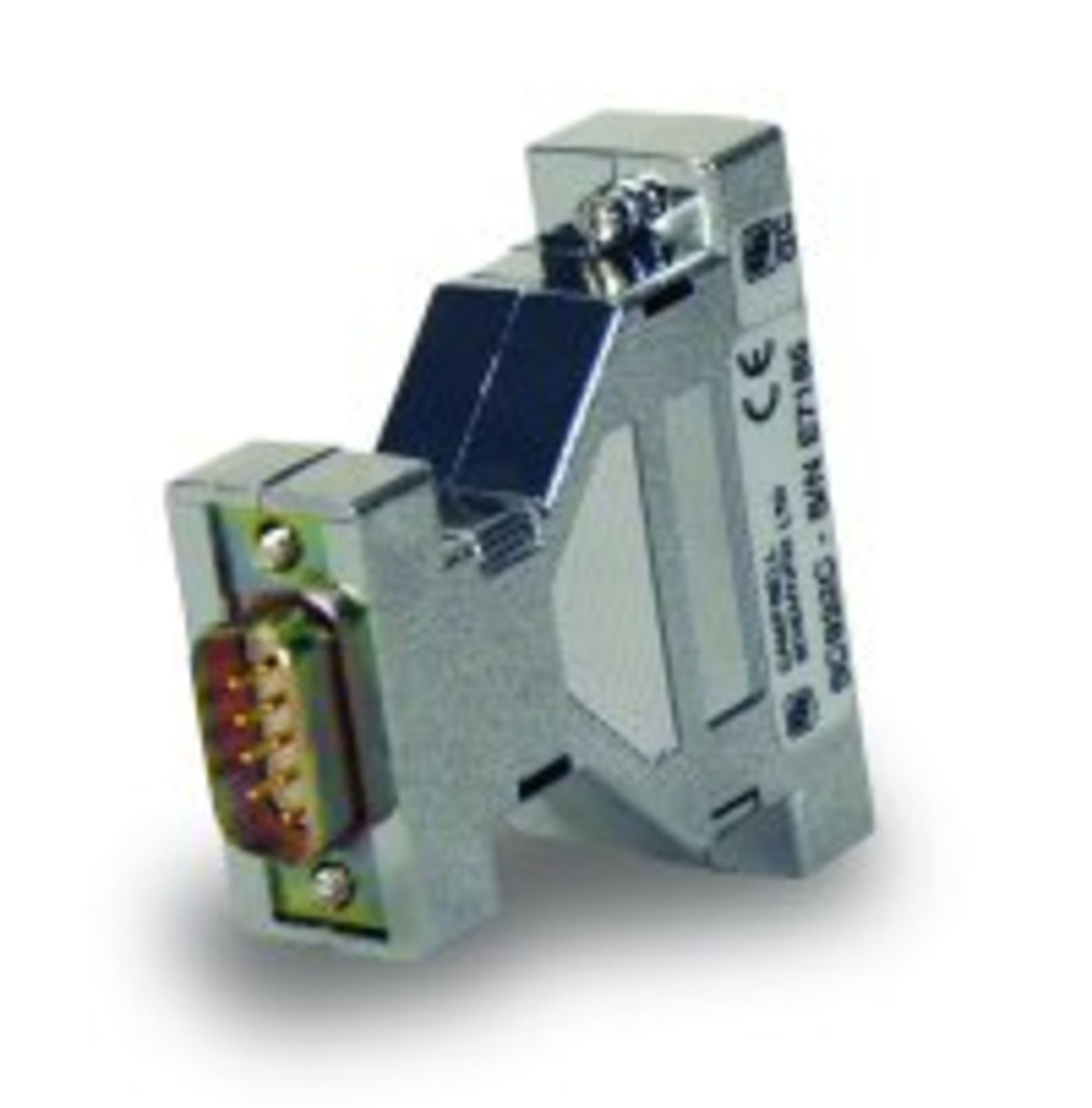

SC932C
RetiredRAD Modem Interface without Mounting Hardware
Pricing
- Model:
- SC932C
- Item Number:
- 10596
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
Replacement SC932C RAD Modem Interface w/o Mounting Hardware
The SC932C supports communications between a data logger and a device configured with an RS-232 DCE serial port. The SC932C is typically used with the ET107 or ET106 Weather Stations, and it is a component of the 10589 ET Short Haul Modem Kit.
The SC932C is only recommended for applications where there are space limitations; the SC932A is recommended for all other applications.
Specifications
- Data Rates
- Up to 38,400 baud
(limited by data logger)
- Operating Temperature Range
- -25° to +50°C
- Humidity
- Up to 95%
(non-condensing)
- Power Requirements
- Sources power from data logger 5V supply via a 9-pin interface.
- Dimensions
- 5.08 x 5.08 x 0.64 cm
(2.0 x 2.0 x 0.25 in.)
- Weight
- 36.3 g
(0.08 lb)
