SC12R-6
SC12R-6
End of lifeRobust CS I/O Cable, 6 ft
Pricing
- Model:
- SC12R-6
- Item Number:
- 10084
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
The SC12R-6 connects two or more 9-pin peripherals to the CS I/O port of a Campbell Scientific data logger. The SC12R-6 may be "daisy-chained" to connect one additional peripheral with each additional cable.
This cable is similar to the SC12, but it has a 6 ft length between connectors instead of a 2 ft length.
Technical Description

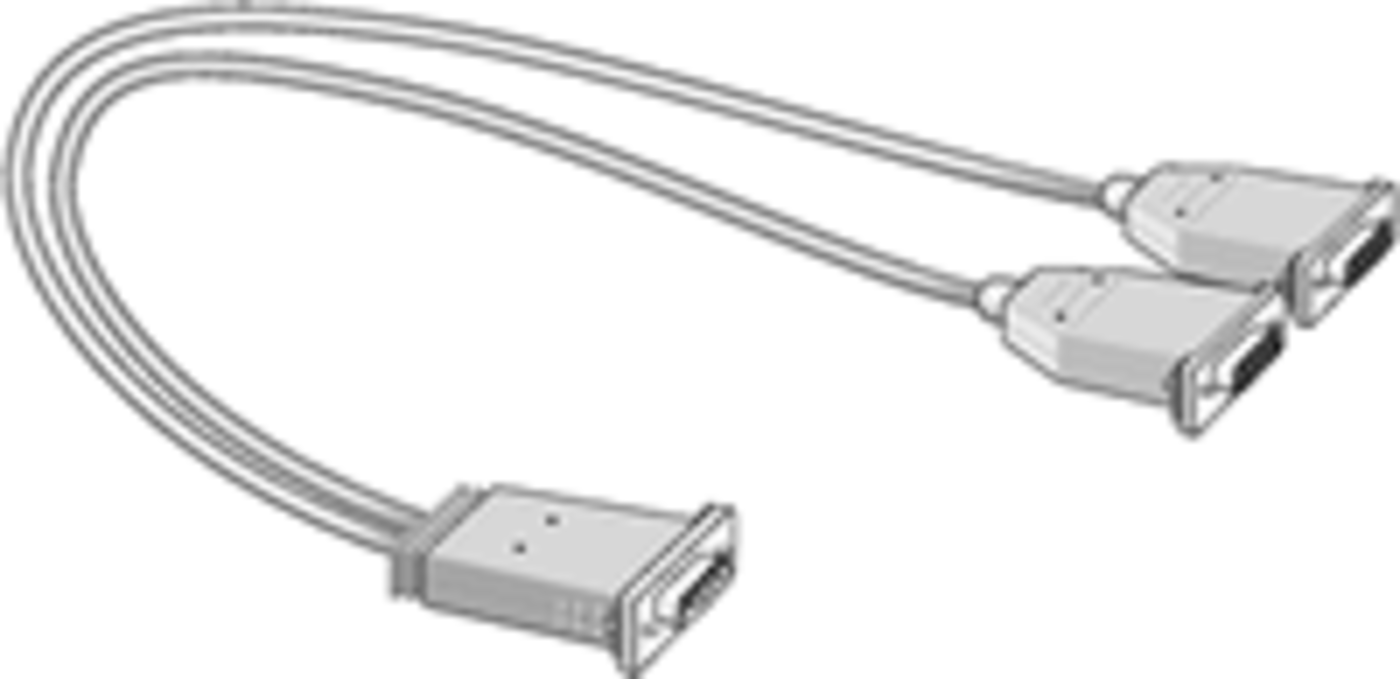

The SC12R-6 cable is similar to the SC12, but has a 6-ft length between connectors instead of a 2 ft length. This cable has one 9-pin pin (male) connector that attaches to the data logger's CS I/O port and two 9-pin socket (female) connectors that can attach to peripherals with a 9-pin RS-232 port. Additional peripherals can be connected by attaching one of the two socket (female) connectors with the pin (male) connector of an additional SC12R-6 or SC12 cable.
Some customers have found the longer SC12R-6 particularly useful for DSP4 Heads Up Display applications.
Benefits
- Provides one 9-pin pin (male) connector and two 9-pin socket (female) connectors
- "Robust" cable withstands environmental conditions better than ribbon cables
Specifications
- Connectors
- One 9-pin pin (male), two 9-pin socket (female)
- Operating Temperature Range
- -65° to +150°C
- Length
- 182.9 cm
(72.0 in.)
- Weight
- 227 g
(8 oz)
