SC12

The SC12 is our standard cable for connecting the data logger's 9-pin serial I/O port to most peripherals with a 9-pin port. It is supplied with many of our standard communications peripherals.  Its 9-pin pin (male) connector attaches to the data logger's CS I/O port, and the two 9-pin socket (female) connectors can attach to peripherals or interfaces.

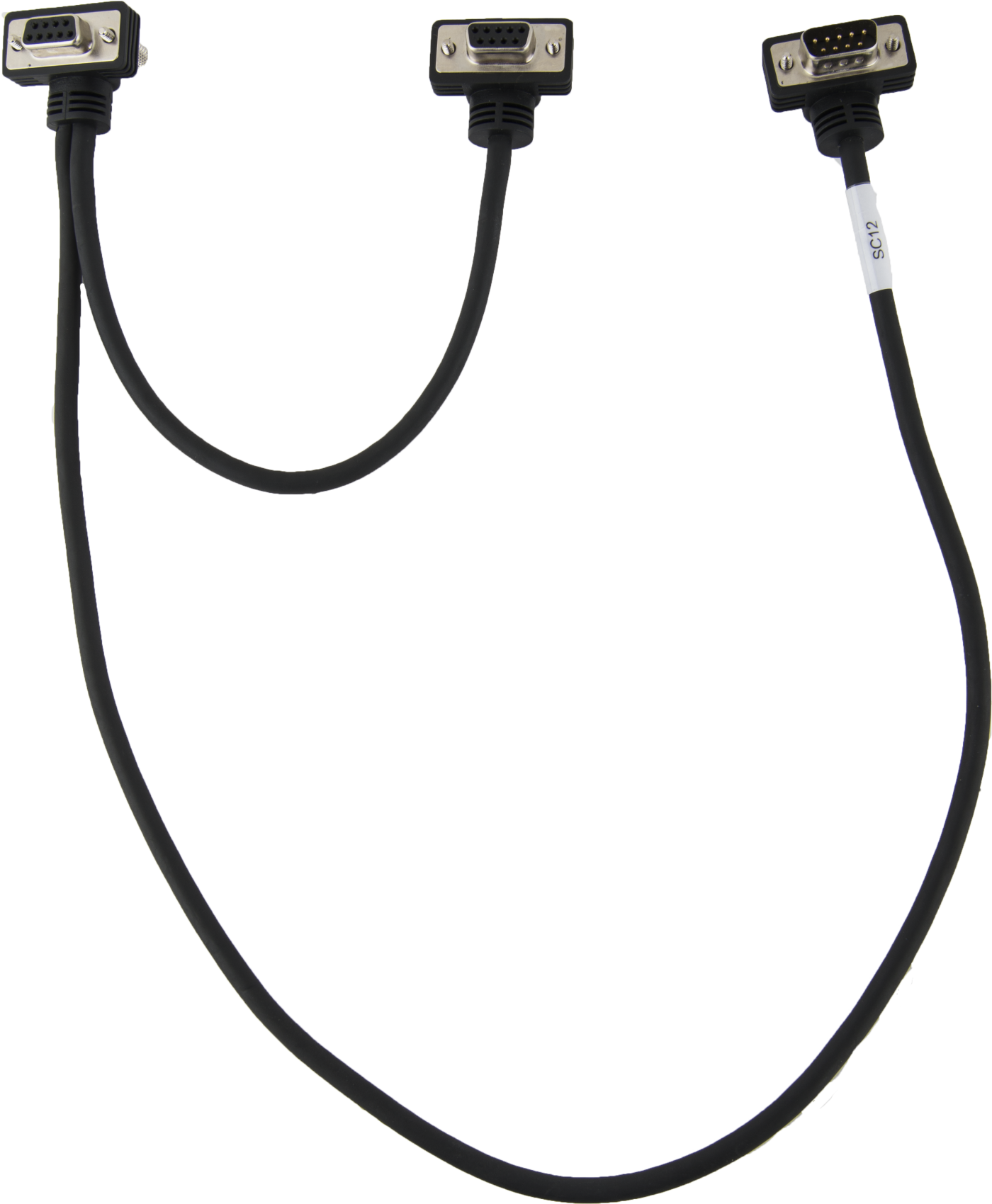

The SC12 has one 9-pin pin (male) connector that attaches to the data logger's CS I/O port and two 9-pin socket (female) connectors that can attach to peripherals with a 9-pin RS-232 port. Additional peripherals can be connected by attaching one of the two socket (female) connectors with the pin (male) connector of an additional SC12 cable. The SC12 is compatible with any data logger that has a CS I/O port.

Prior to June 2003, the SC12 was a ribbon cable. On June 18, 2003, Campbell Scientific began shipping a redesigned SC12 cable. The redesigned SC12 is a black molded cable that is more rugged and resistant to chemicals than the original ribbon cable. Although the two cables are largely interchangeable, the new black version is not compatible with the ET107 and some of our older products (see Compatibility).

The redesigned SC12 cable has resulted in the obsolescence of the SC12R cable. However, the SC12R-6 cable will continue to be available. The SC12R-6 features a six foot length for applications where the peripherals must be separated by several feet.
