RetiredOptically Isolated USB Interface
Pricing
- Model:
- SC-USB
- Item Number:
- 17418
- Warranty:
- 1 year
Overview

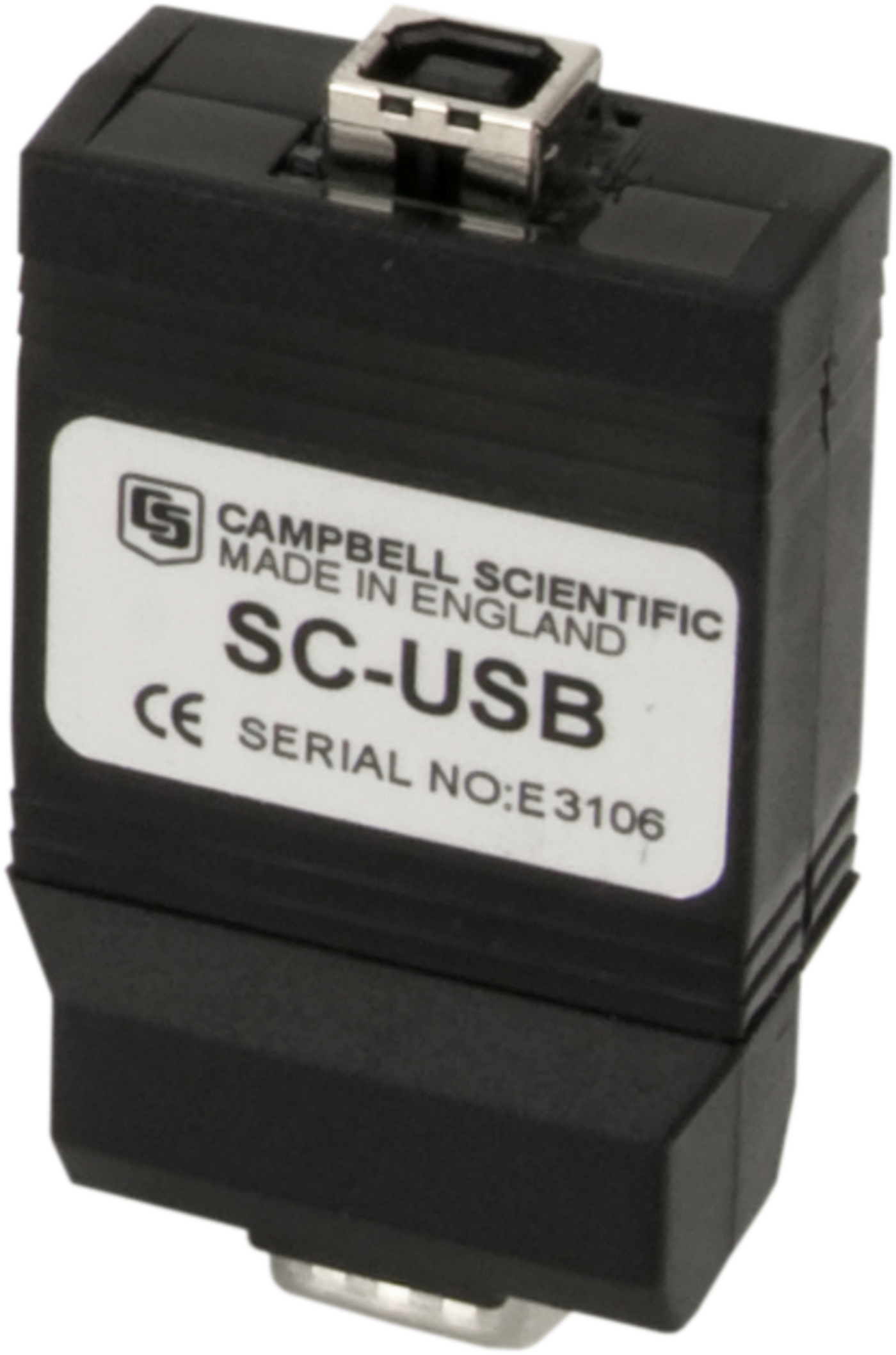

The SC-USB allows Campbell Scientific data loggers to communicate directly with computers that have a USB interface. The SC-USB is optically isolated, which helps eliminate noise pickup associated with PC power supplies and ground connections. The SC-USB can be used in place of an SC32B interface.
Technical Description
The SC-USB Optically Isolated Interface is used to connect a data logger's CS I/O port to a PC's USB port. Multiple devices can be connected to the SC-USB in parallel. Because the connection is optically isolated, the SC-USB interface can replace an SC32B/USB converter combination. Optical isolation helps eliminate noise pickup associated with PC power supplies and ground connections.
The SC-USB supports synchronous high-speed data transfer for up to 1 Mbps (when supported by data logger). Asynchronous communication is supported from 9600 to 115200 bps. The USB transfer rate is up to 12 Mbps.
Benefits
- Connects a PC to the CS I/O port of a data logger
- Helps protect components from electrical damage
- High data transfer rates—up to 1 Mbps
Specifications
- Power
- Drawn from the PC and data logger
- CS I/O Port
- Opto-isolated (signal isolation only) from the PC’s USB port to 47 Vac or dc
- Operating Temperature Range
- -25° to +50°C
- Cable Description
- Type-A male to type-B male
- Campbell Scientific Protocols Supported
- Modem-Enable
(ME)
- Campbell Scientific Protocols Supported
- Synchronous Device Communications protocol
(SDC)
SDC only works with data logger operating systems created since October 2002 (CR10X 1.18 or higher, CR23X 1.15 or higher, etc.) - Campbell Scientific Protocols Supported
- Concurrent-SDC
(CSDC)
CSDC only works with PakBus dataloggers and the CR5000. - Cable Length
- 1.8 m
(6 ft)
- Dimensions
- 7.5 x 4 x 2 cm
(3 x 1.6 x 0.8 in.)
- Weight
- 85 g
(3.0 oz)
Current Drain
- Drawn from Data Logger
- < 1 mA
(standby)
- Drawn from Data Logger
- < 20 mA
(active)
- Drawn from PC
- < 18 mA
(standby)
- Drawn from PC
- < 85 mA
(active)
Communication Rates
- Asynchronous
- 9600 bps to 115 kbps
- Synchronous
- Up to 1 Mbps
