SC-IRDA
SC-IRDA
End of lifeCS I/O to Infrared Interface
Pricing
- Model:
- SC-IRDA
- Item Number:
- 17205
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

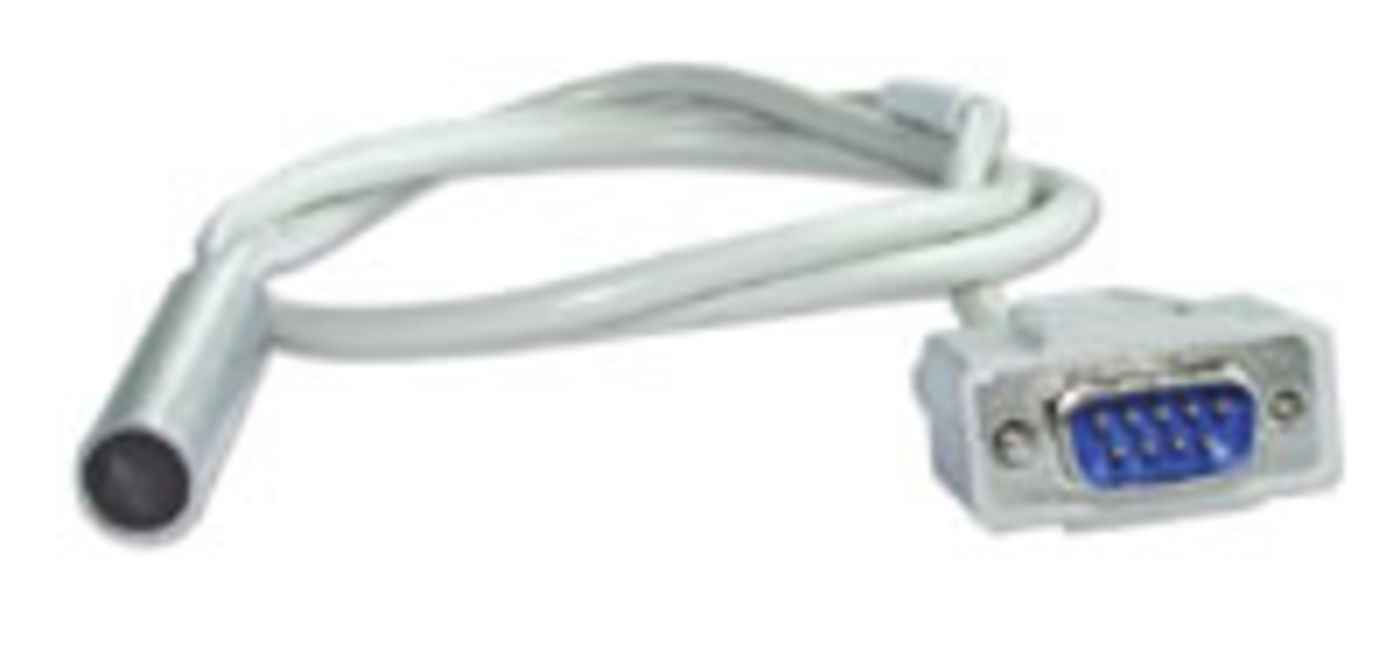

The SC-IRDA is an infrared device that allows a PDA handheld to communicate with a data logger without opening the enclosure door. Typically this interface is placed in a compression fitting that has been added to the side of an enclosure. The SC-IRDA infrared sensor is sealed against moisture allowing it to withstand exposure to rain and snow.
Technical Description
The SC-IRDA allows a PDA to communicate with a data logger housed inside an environmental enclosure without opening the enclosure's door. Typically this infrared device is placed in a compression fitting that has been added to the side of an enclosure. The SC-IRDA is sealed against moisture allowing it to withstand exposure to rain or snow.
Benefits
- Allows PDA handheld to communicate with a data logger
- Transmits at a distance of up to 8 inches
Specifications
- Power
- Supplied by data logger 5 V
(on CS I/O port)
- Typical Current Drain
- 0.17 mA
(standby)
- Typical Current Drain
- 6.2 mA
(active)
- Baud Rate
- 9600
(default)
- Baud Rate
- Rates up to 19200 selectable via software.
- Communication Range
- Up to 20 cm (8 in.) with typical lighting
- Acceptance Angle
- 30º
- Communication Standard
- Communication conforms to the IRDA low-power SIR standards
(specifications as supported by most Palm PCs and laptops)
- PDA Handheld Requirements
- Must have an IRDA sensor and an infrared chipset compatible with the SC-IRDA.
- CE Compliance
- Complies with EMC standard EN61326:1996.
