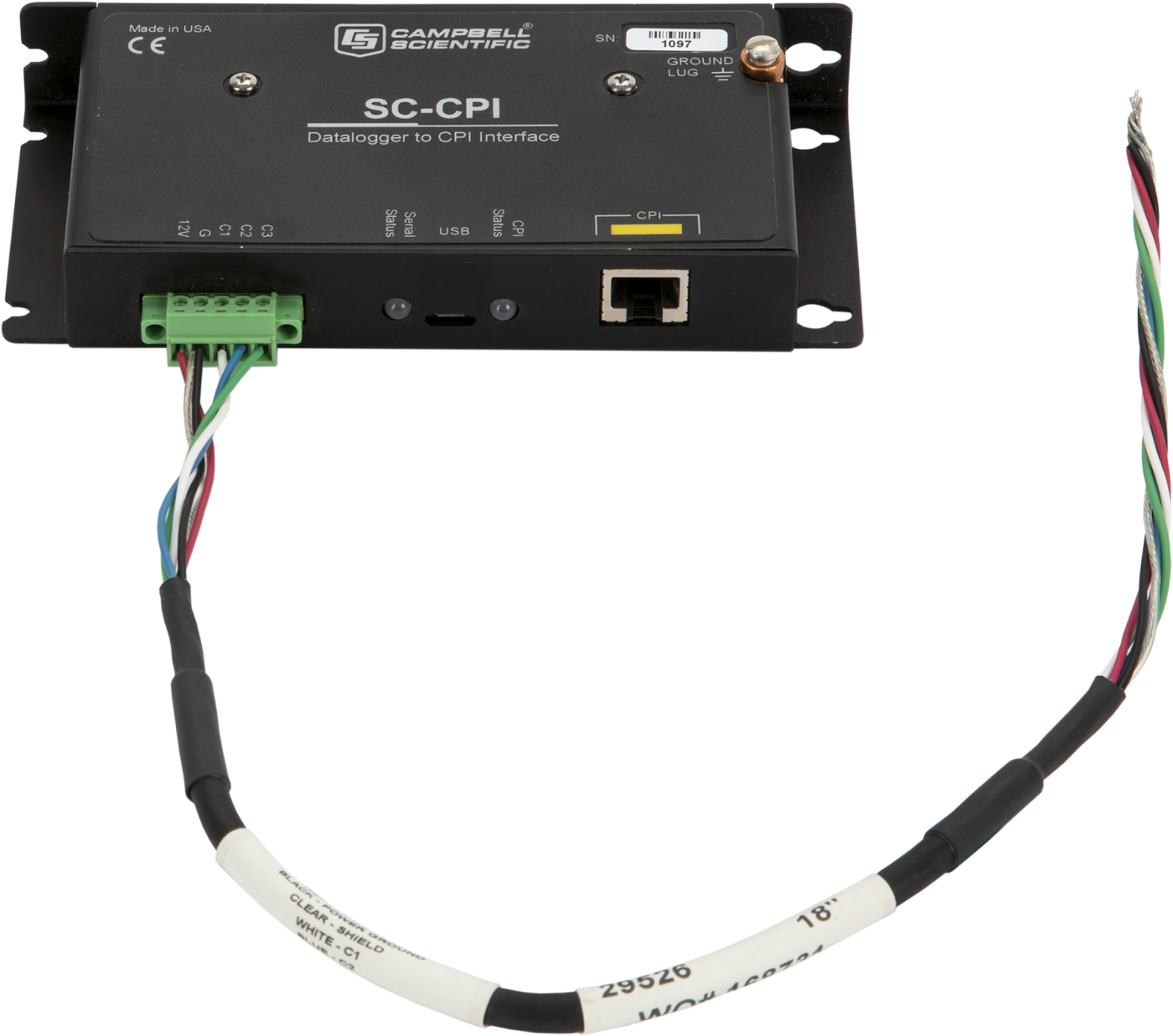

SC-CPI

Name: SC-CPI
Brand: Campbell Scientific
SKU: SC-CPI
Availability: Discontinued

Datalogger-to-CPI Interface

SC-CPI

RetiredConfigurable

Datalogger-to-CPI Interface

Pricing

Configuration

+50CSC-CPI-ST

Qty

Select a configuration to add to your quote

Model:: SC-CPI
Item Number:: SC-CPI
Warranty:: 1 year
Lead time:: 14 days

Overview

Datalogger Serial to CPI Interface

The SC-CPI adds CPI bus functionality to your CR800, CR850, CR1000, and CR3000 dataloggers, which is necessary for them to connect to the CDM (Campbell Distributed Module) devices and other CPI-enabled sensors. The SC-CPI connects to the data logger using the C1, C2, and C3 ports.

The SC-CPI is not required for, or supported by, data loggers with a native CPI interface. Campbell Scientific strongly recommends that CDMs be connected to data loggers with a native CPI interface, such as the CR6.

Key Advantages

Data Logger to CDM Bridge
Synchronized high-speed measurements

Benefits

Enables a CR800, CR850 CR1000, or CR3000 to be part of a CPI/CDM network
Provides detailed CPI communication diagnostics
Supports monitoring of the serial or CPI load
Indicates if CPI frame errors occur
Provides information about each CPI module that it detects in its network

Specifications

Temperature Range: -25° to +50°C
(standard)
Temperature Range: -55° to +85°C
(extended)
Current Drain: 50 mA
(active)
Dimensions: 15.94 x 7.49 x 3.18 cm
(6.28 x 2.95 x 1.25 in.) including ground lug
Weight: 0.188 kg
(0.415 lb)
