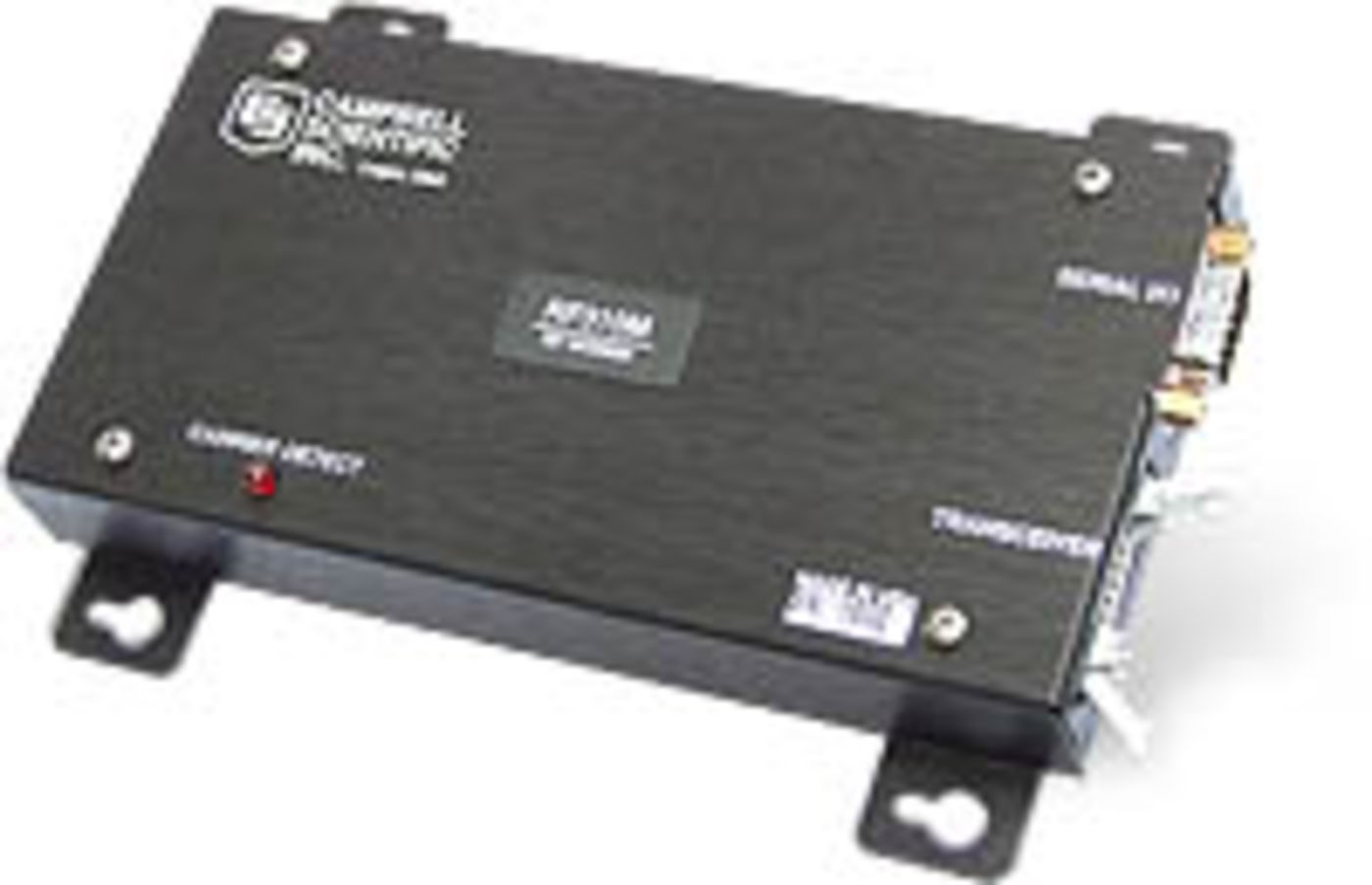

RF310M
RF310M
End of lifeConfigurableRF Modem
Pricing
- Model:
- RF310M
- Item Number:
- RF310M
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
The RF310M functions as the communication interface between a data logger and an RF310, RF312, or RF313 radio. Extended temperature testing is available for extreme environments.
Technical Description
The RF310M functions as the communication interface between a mixed-array data logger and an RF310, RF312, or RF313 radio. It's typically powered with the 5 Vdc provided by the data logger's CS I/O port. When the modem is at a non-data-logger repeater site, a PS100 Power Supply fitted with an A100 adapter is used to power the RF310M. Each RF310M contains dip switches that allow the user to address the modem with a number between 0 and 255.
Specifications
- Power
- 35 mA at 5 Vdc
(from pin 1 on the data logger's CS I/O 9-pin connector)
- Standard Operating Temperature Range
- -25° to +50°C
- Extended Operating Temperature Range
- -55° to +70°C
- Dimensions
- 16.3 x 8.4 x 2.5 cm
(6.4 x 3.3 x 1.0 in.) without mounts
- Dimensions
- 17.3 x 11.9 x 2.5 cm
(6.8 x 4.7 x 1.0 in.) with mounts and connectors
- Weight
- 227 g
(8 oz)
