REDWINGCDPD

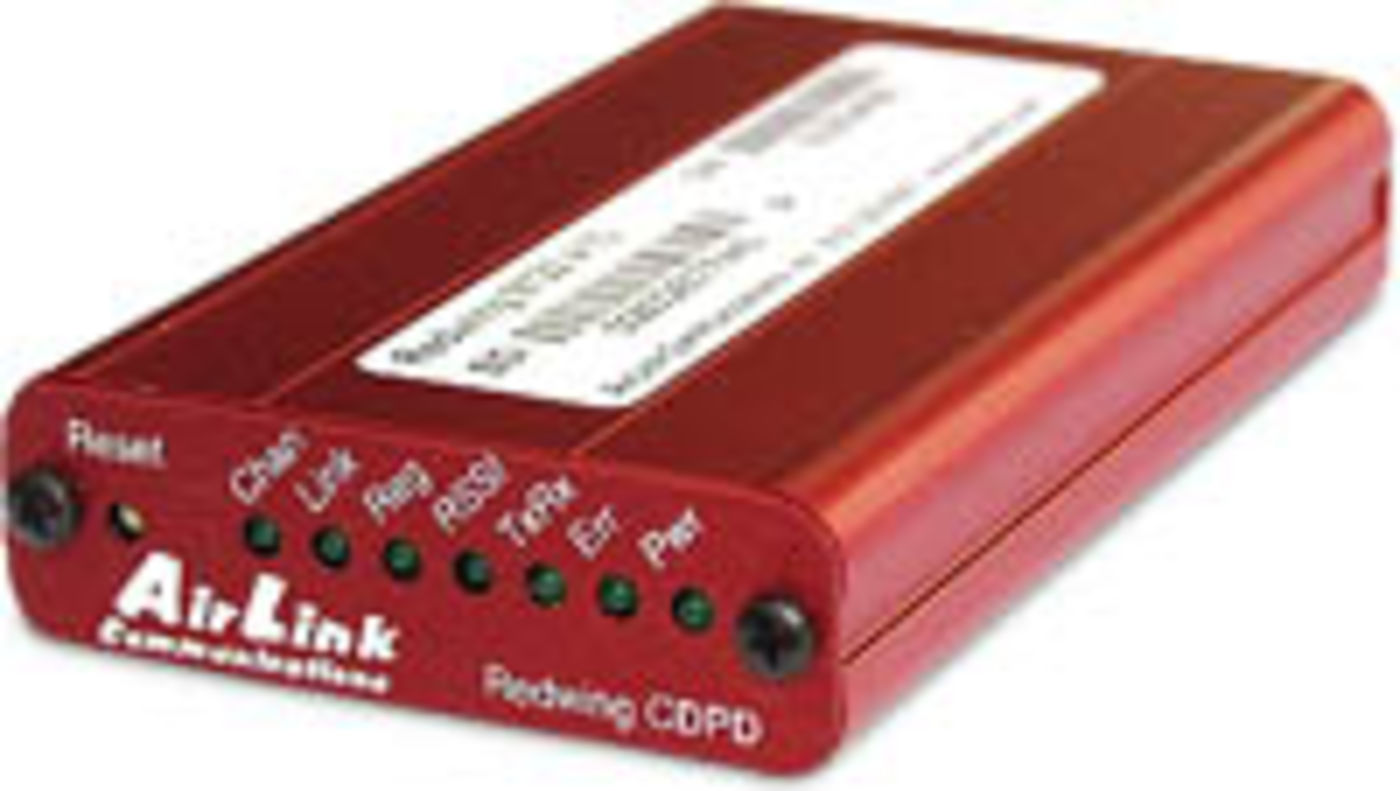

Airlink CDPD Cellular Digital Modem
REDWINGCDPD
End of lifeAirlink CDPD Cellular Digital Modem
Pricing
- Model:
- REDWINGCDPD
- Item Number:
- REDWINGCDPD
- Lead time:
- 21 days
Overview
The RedwingCDPD supported telecommunications between a data logger and a cellular digital packet data (CDPD) network. This CDPD modem was IP based; the cellular provider needed to assign an IP address for the site. The Redwing had many of the same features as its predecessor, the Raven II.
The RedwingCDPD modem was retired 11 March 2004 because of the discontinuation of CDPD services.
Specifications
- Transmit Power
- 600 mW
- Transmit
- 824 to 849 MHz
- Receive
- 869 to 894 MHz
- Data Rates
- 19.2 kbps via TCP/IP, 1,200 to 38,400 bps via serial interface
- Input Voltage
- 9 to 30 Vdc
- Input Current
- 30 to 450 mA
- Typical Current Drain @ 12 Vdc
- 60 mA
(while receiving)
- Typical Current Drain @ 12 Vdc
- 280 mA
(during transmission)
- Operating Temperature Range
- -30° to +70°C
(with transmissions limited to a 10% duty cycle above 60°C)
- Humidity
- 5% to 95%
(non-condensing)
- RF Protocol
- CDPD 1.1
- Serial Interface
- RS-232, DB-9F
- RF Antenna Connector
- 50 ohm TNC female
- Serial Protocols
- AT Commands, SLIP, PPP
- Status LEDs
- Power, Channel Acquired, Link Status, Network Registration, RSSI, Transmit/Receive, Block Errors
