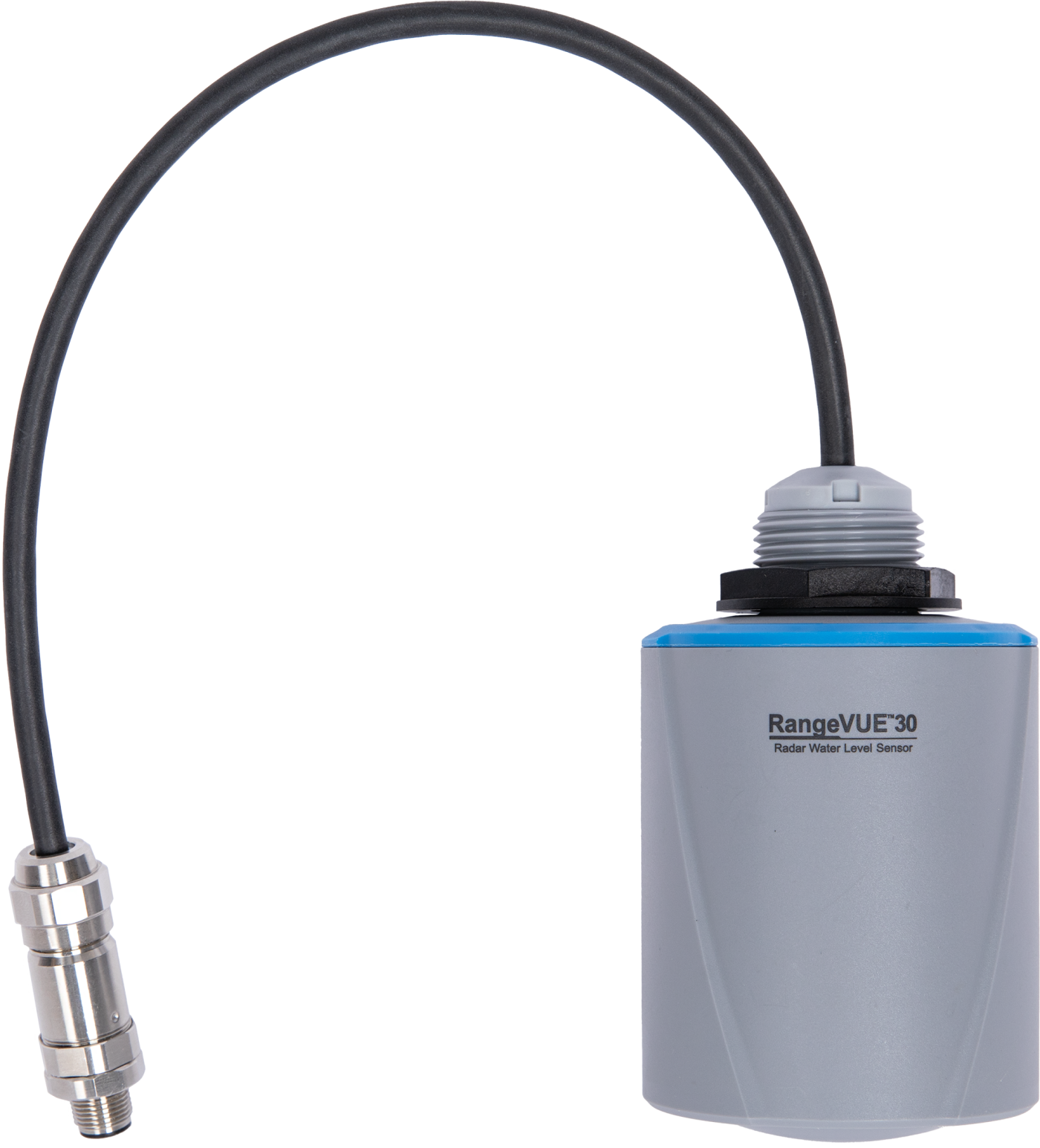

RangeVue 30
SDI-12, Radar Water-Level Sensor
RangeVue 30
OrderableSDI-12, Radar Water-Level Sensor
Overview
RangeVue30 SDI-12 Radar Water Level Sensor, Range 30m (98.4ft) (-40 to +80C)
As a non-contact, radar water-level sensor, you can use the RangeVue™30 to monitor the water level of rivers, lakes, and reservoirs. With 80 GHz radar technology, the RangeVue 30 directly measures the distance between the sensor face and the water surface. This distance can be used to determine water level or stage. The sensor is ideal for areas where submersible sensors can be damaged due to corrosion, contamination, flood-related debris, or lightning.
Key Advantages
Non-Contact Water-Level Monitoring
Distance up to 30 meters
Distance up to 30 meters
Benefits
- Non-contact water-level measurement
- Meets United States Geological Survey (USGS) Office of Surface Water (OSW) requirements for accuracy
- SDI-12 version 1.4 functionality
- Configurable over SDI-12
- Bluetooth-configurable over smartphone, tablet, or PC
Specifications
- Measurement Description
- Distance
- Output Options
- SDI-12
- Measurement Range
- 30 m
(98.4 ft)
- Accuracy
- ±2 mm
(±0.0065 ft)
- Resolution
- 1 mm
(0.0033 ft)
- Radar Frequency
- W-band
(80 GHz)
- Beam Angle
- 4°
- Input Voltage
- 8 to 30 Vdc
- Current Drain
- 10 mA
(at 12 Vdc)
- Operating Temperature Range
- -40° to +80°C
- Mechanical Rating
- IP66/68 IEC 60529, Type 4X/6P UL 50
- Material
- PVDF, FKM
- Cable Termination
- 4-Pin A-Coded M12 Connector
- Threads
- 1 NPT
