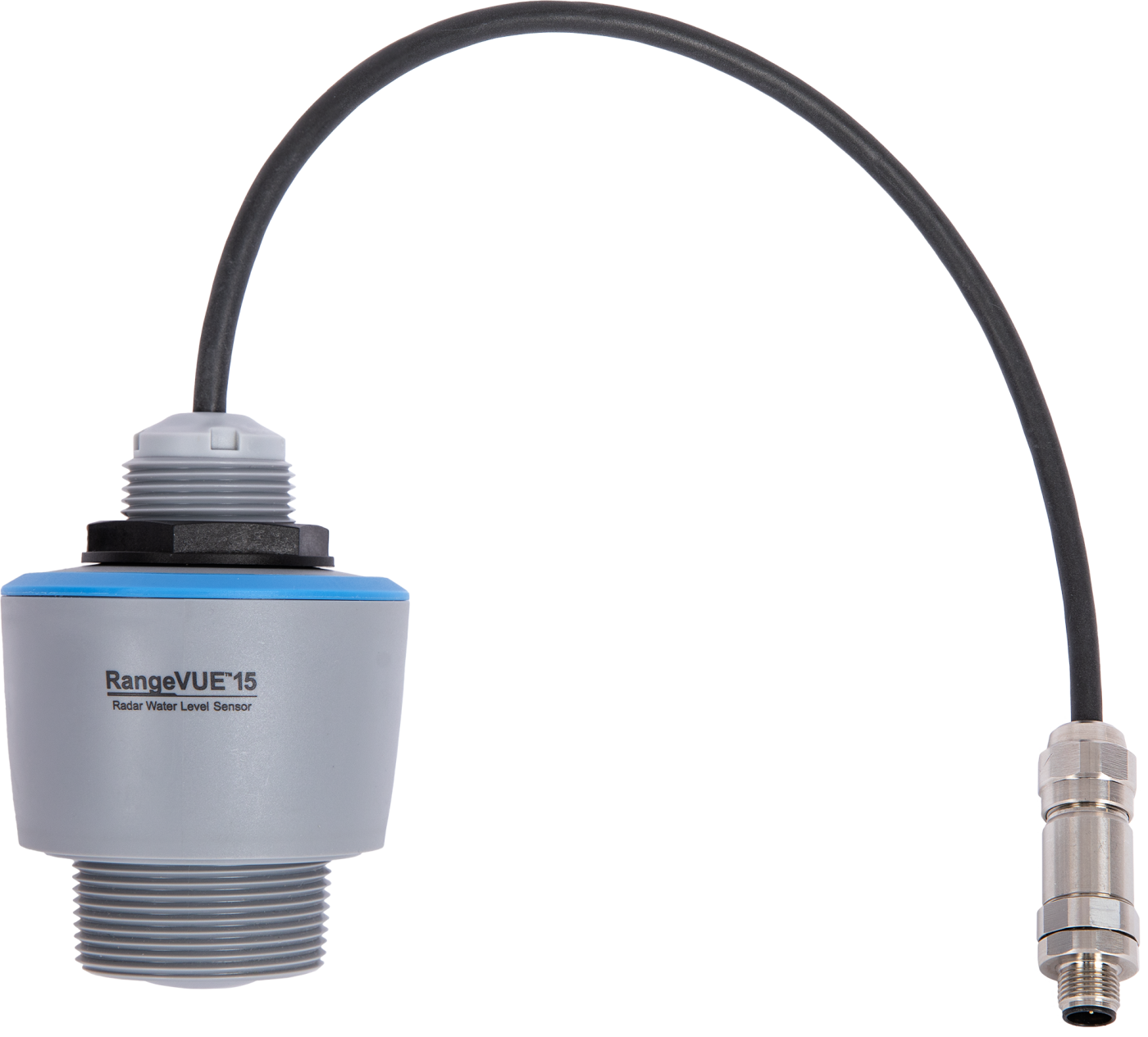

RangeVue 15
SDI-12, Radar Water-Level Sensor
RangeVue 15
OrderableSDI-12, Radar Water-Level Sensor
Overview
RangeVue15 SDI-12 Radar Water Level Sensor, Range 15m (49.2ft) (-40 to +80C)
The RangeVue™15 is a non-contact, radar water-level sensor used for monitoring the water level of rivers, lakes, and reservoirs. Using 80 GHz radar technology, it directly measures the distance between the sensor face and the water surface. This distance can be used to determine water level or stage. The sensor is ideal for areas where submersible sensors can be damaged due to corrosion, contamination, flood-related debris, or lightning.
Key Advantages
Non-Contact Water-Level Monitoring
Distance up to 15 meters
Distance up to 15 meters
Benefits
- Non-contact water-level measurement
- Meets United States Geological Survey (USGS) Office of Surface Water (OSW) requirements for accuracy
- SDI-12 version 1.4 functionality
- Configurable over SDI-12
- Bluetooth-configurable over smartphone, tablet, or PC
Specifications
- Measurement Description
- Distance
- Output Options
- SDI-12
- Measurement Range
- 15 m
(49.2 ft)
- Accuracy
- ±2 mm
(±0.0065 ft)
- Resolution
- 1 mm
(0.0033 ft)
- Radar Frequency
- W-band
(80 GHz)
- Beam Angle
- 8°
- Input Voltage
- 8 to 30 Vdc
- Current Drain
- 10 mA
(at 12 Vdc)
- Operating Temperature Range
- -40° to +80°C
- Mechanical Rating
- IP66/68 IEC 60529, Type 4X/6P UL 50
- Material
- PVDF, FKM
- Cable Termination
- 4-Pin A-Coded M12 Connector
- Threads
- 1 NPT, 1.5 NPT
