PVS5120CBL-L

PVS5120C/D Control Cable
PVS5120CBL-L

PVS5120CBL-L

End of lifeConfigurable

PVS5120C/D Control Cable

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
PVS5120CBL-L
Item Number:
30432
Warranty:
1 year
Lead time:
14 days

Overview

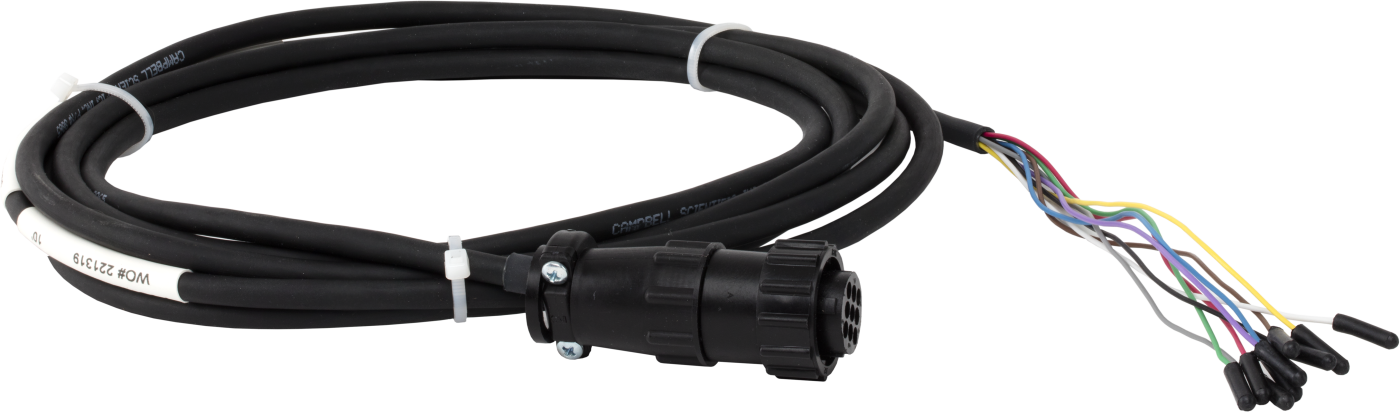

PVS5120CBL-L PVS5120 External Control Cable

The PVS5120CBL control cable is a single cable used to communicate with, and control, all configurations of the PVS5120-series samplers. The PVS5120CBL cable has wires for the following: pulse in, pulse out, SDI-12, RS-485A, RS-485B, RS-485 Resistive Ground, Full/Fault Output, water present, and DC ground. Depending on which control type you choose, only a few of the wires may need to be connected to the data logger or PLC.

Note: If your application only requires that the sampler run on time-based control, and you do not need any diagnostic feedback, this cable is not needed to run the sampler.
