PS24
PS24
OrderableConfigurable24 Ah Power Supply with 10 x 12 in. Enclosure
Pricing
Configuration
Sign in for option pricing- Tripod Mast Mounting w/CH150-MM
- Tripod Mast Mounting w/CH200-MM
- CM1xx Leg Mounting w/CH150-LM
- CM1xx Leg Mounting w/CH200-LM
- Tower Mounting w/CH150-TM
- Tower Mounting w/CH200-TM
- 4-10 Inch Pole Mounting w/CH150-PM
- 4-10 Inch Pole Mounting w/CH200-PM
- ET Pole Mounting, 3 Inch w/CH150-EM
- ET Pole Mounting, 3 Inch w/CH200-EM
Select a configuration to add to your quote
- Model:
- PS24
- Item Number:
- 45302
- Warranty:
- 1 year
- Lead time:
- 14 days
- Compliance:
- requires charging source
Overview

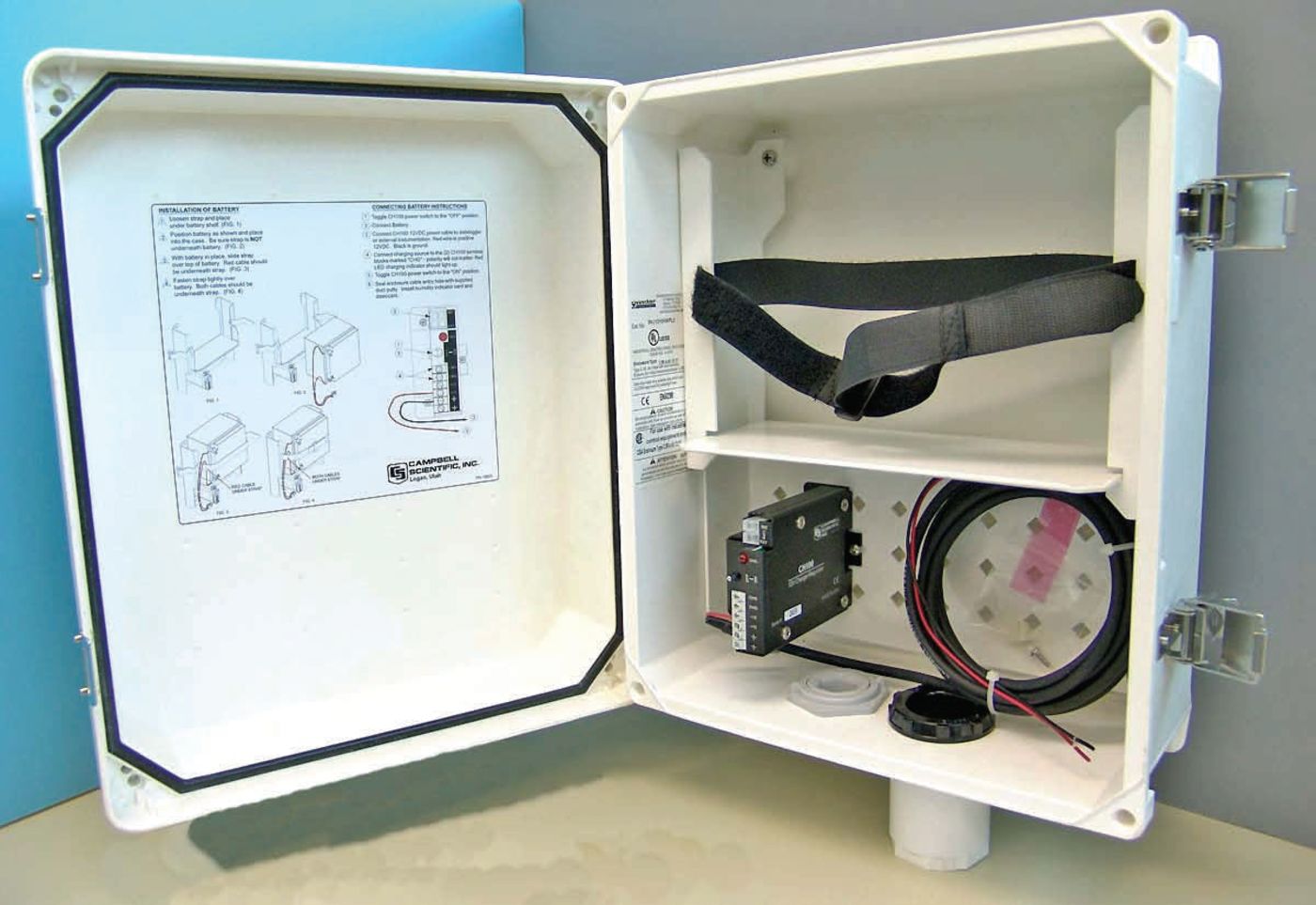

The PS24 consists of a 24 Ah battery, CH150 regulator, and a 10 by 12 in. environmental enclosure. This power supply is intended for systems such as the ET107 where the weather station's enclosure is not large enough to house a BP24 battery. See the Images section on the web page for an image of the battery that is included.
Technical Description
The PS24 enclosure has one 1.5 in. diameter conduit for cable entry and several options for mounting it on a tripod or tower. The sealed rechargeable battery should be recharged via an ac wall charger or a solar panel. The wall charger and solar panel are ordered separately as common accessories.
A 3.05 m (10.0 ft) cable is included that goes from the PS24 to a data logger or a device that needs 12V/Ground from the PS24.
Specifications
- Input Voltage
- 15 to 28 Vdc or 18 Vac RMS
(CHG terminals)
- Charging Output Voltage
- Temperature-compensated float charge for 12 V battery
- Charging Current Limit
- 1.2 A typical
- Power Out (+12 Terminals) Voltage
- Unregulated 12 V from battery
- Battery Nominal Rating
- 24 Ah
- Enclosure Rating
- NEMA 4X
(modified for cable entry)
- Operating Temperature Range
- -40º to +60ºC
- Weight
- 10.2 kg
(22.4 lb)
