CM106 Guy Kit with 15 ft Cables
27117
RetiredCM106 Guy Kit with 15 ft Cables
Pricing
- Model:
- 27117
- Item Number:
- 27117
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
ACC CM106 Guy Kit, 15ft
The 27117 guy kit provides additional support for the CM106 tripod mast in high-wind conditions.
Technical Description
The 27117 guy kit provides additional support for the CM06 tripod's mast in high wind conditions. The tables at right compare guyed and unguyed tripods.

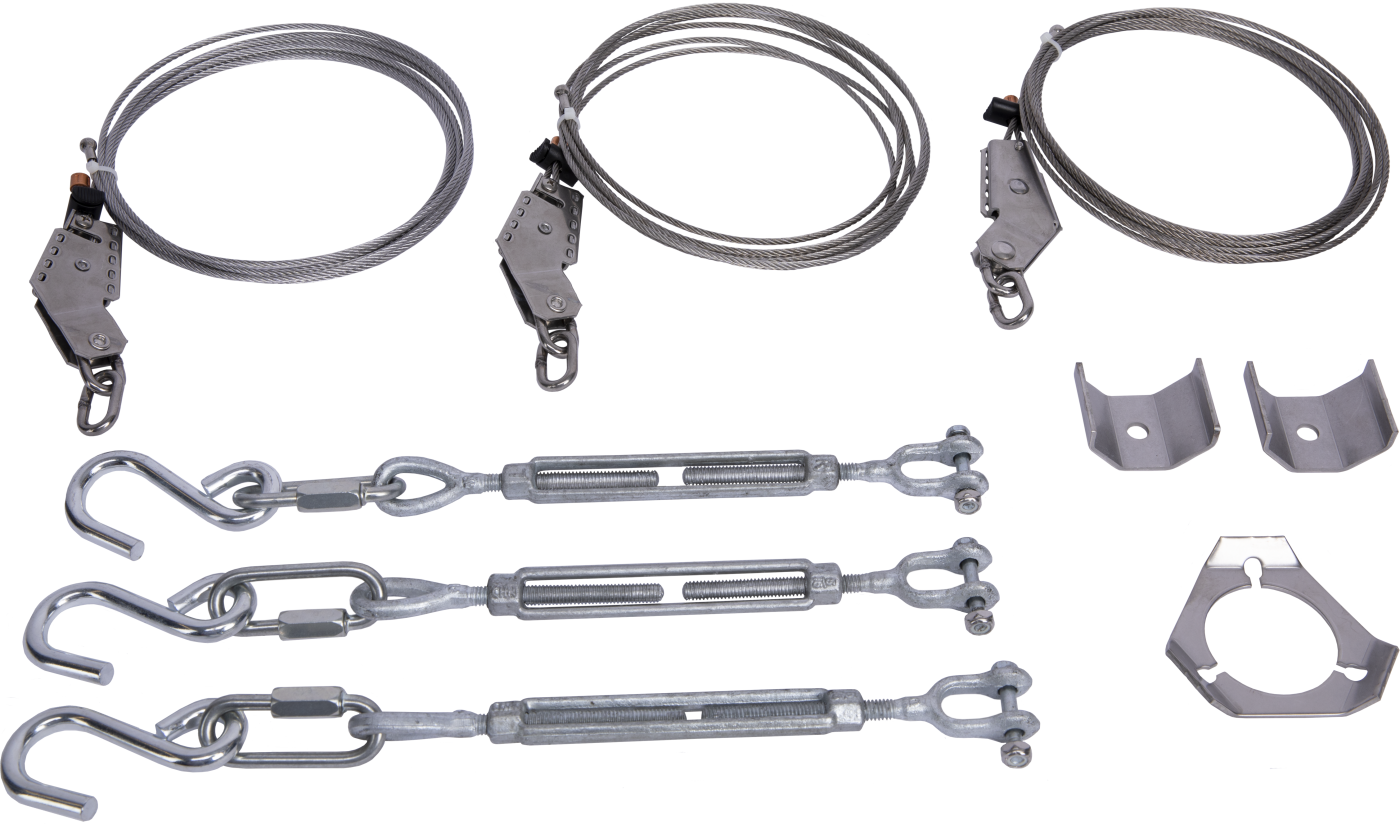

The 27117 guy kit includes three guy wires, guy bracket, guy collar, and three turnbuckles.
Specifications
- Cable Length
- 4.572 m
(15 ft)
- Weight
- 2.2 kg
(4.85 lb)
Allowable Wind Speeds for an Unguyed CM106
- Sustained Wind
- 29 m/s
(65 mph) with tripod mast extended
- Sustained Wind
- 36 m/s
(80 mph) with tripod mast retracted
- Wind Gust
- 38 m/s
(84 mph) with tripod mast extended
- Wind Gust
- 46 m/s
(104 mph) with tripod mast retracted
Allowable Wind Speeds for a Guyed CM106
- Sustained Wind
- 45 m/s
(100 mph) with tripod mast extended
- Sustained Wind
- 51 m/s
(115 mph) with tripod mast retracted
- Wind Gust
- 58 m/s
(130 mph) with tripod mast extended
- Wind Gust
- 67 m/s
(150 mph) with tripod mast retracted
