PD625
TGA Low Flow Sample Dryer
PD625
RetiredTGA Low Flow Sample Dryer
Pricing
- Model:
- PD625
- Item Number:
- 16315
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview

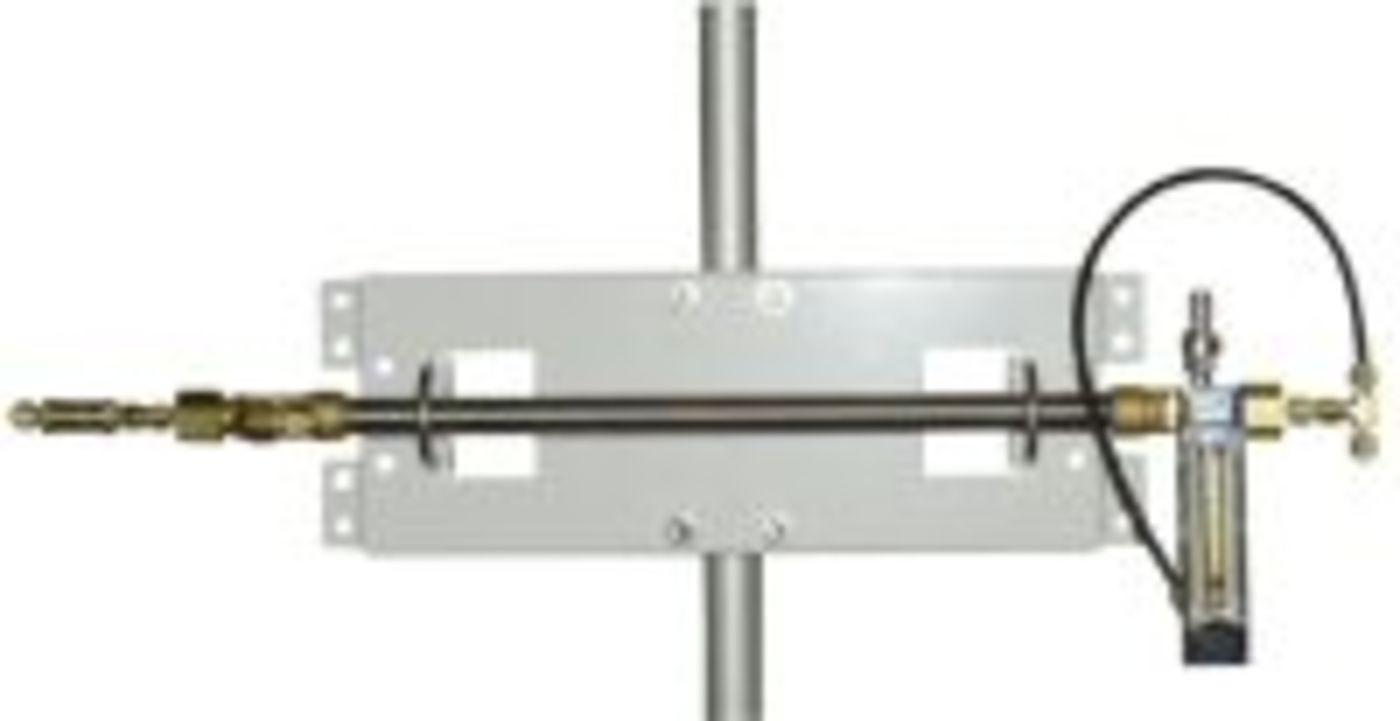

PD625 TGA Low Flow Sample Dryer
The PD625 is an air sample dryer designed for lower flow rates than the PD200T but higher flow rates than the PD1T and PD1T-1.5. The PD625 is appropriate for lower-flow applications, and it is often used in a two-dryer configuration. The dryer contains an inlet filter and a 50-tube, 24 in. Nafion® dryer element that has a drying capacity of one-eighth that of the PD200T.
Specifications
- Sample Inlet
- 0.635 cm
(0.25 in.) Swagelok
- Sample Outlet
- 0.635 cm
(0.25 in.) Swagelok
- Purge Outlet
- 0.9525 cm
(0.375 in.) Swagelok
- Pressure Drop
- 10 mbar per liter per min
(at standard temperature and pressure)
- Flow Rate
- 2 L per min
(for -15°C dew point)
- Sample Volume
- 10 mL
(0.338 oz) internal volume of dryer tubing
- Purge Flow Meter Range
- 0 to 5 L per min
- Length
- 76 cm
(30 in.)
- Weight
- 4.4 kg
(9.7 lb)
