8025
3 V 24 mm Coin Cell Lithium Battery
8025
Orderable3 V 24 mm Coin Cell Lithium Battery
Overview
BATT LITHIUM 3V 0.32Ah Coin Cell CR2430 (-20 to +60C)

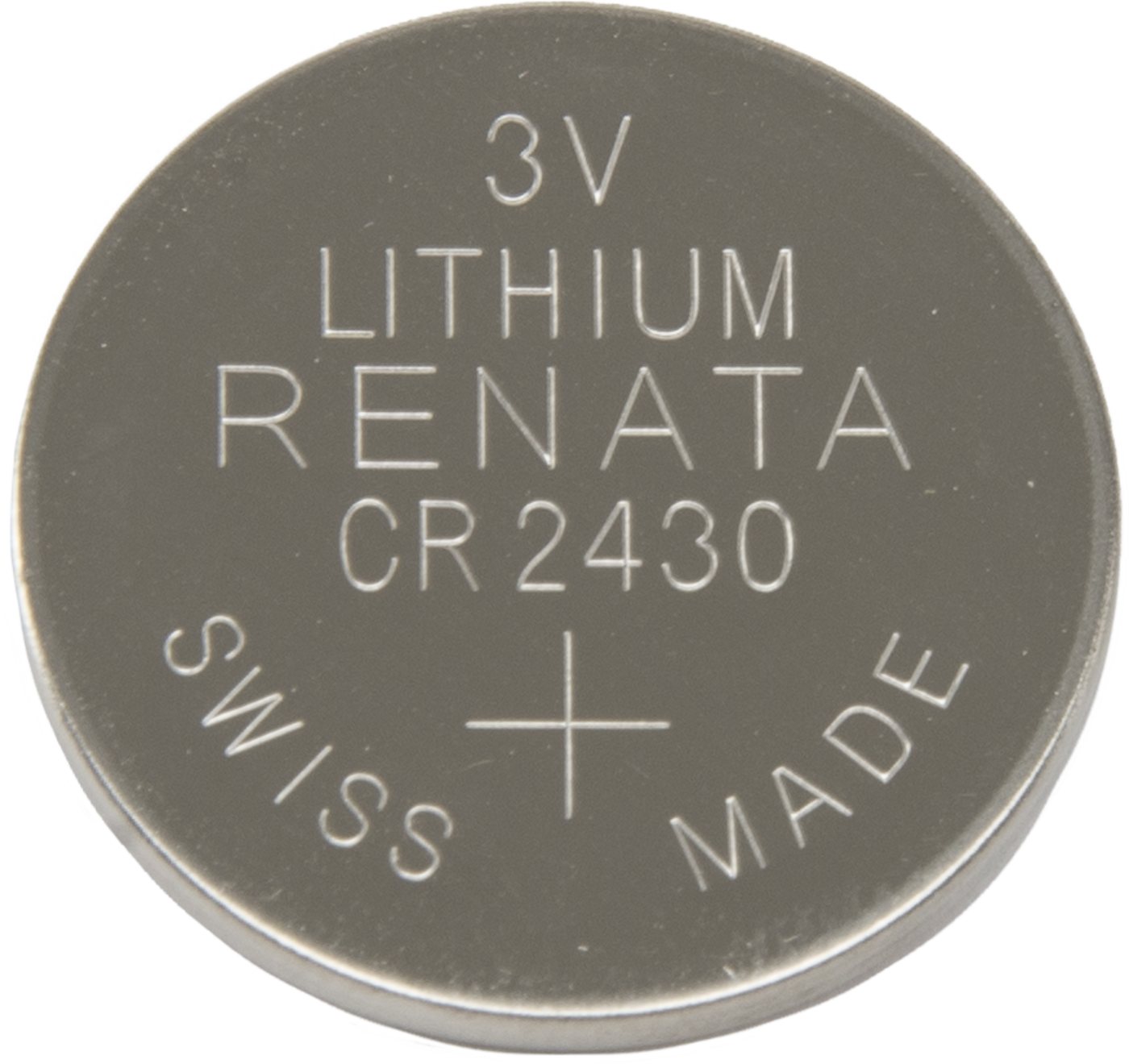

The 8025 is a 3 V Coin Cell 24 mm CR2430 lithium battery.
This lithium battery is included in our CR9000(X), CR10X, and CR510 dataloggers. The 8025 powers the clock and RAM when the primary 12 Vdc power supply is not connected.
The battery should be replaced when its voltage falls below 2.4 Vdc.
Specifications
- Model
- CR2430
- Capacity
- 270 mAhr
- Self Discharge Rate
- 1% of capacity per year
- Operating Temperature Range
- -20° to +60°C
- Storage Temperature Range
- -40° to +60°C
- Diameter
- 2.45 cm
(1 in.)
- Thickness
- 0.3 cm
(0.12 in.)
- Weight
- 4.54 g
(0.01 lb)
