6182
Replacement 7 Ah Sealed Rechargeable Battery for PS100 or PS150
6182
OrderableReplacement 7 Ah Sealed Rechargeable Battery for PS100 or PS150
Pricing
- Model:
- 6182
- Item Number:
- 6182
- Warranty:
- No Warranty
- Compliance:
- for ET107, ET106 s/n >= 2006
Overview

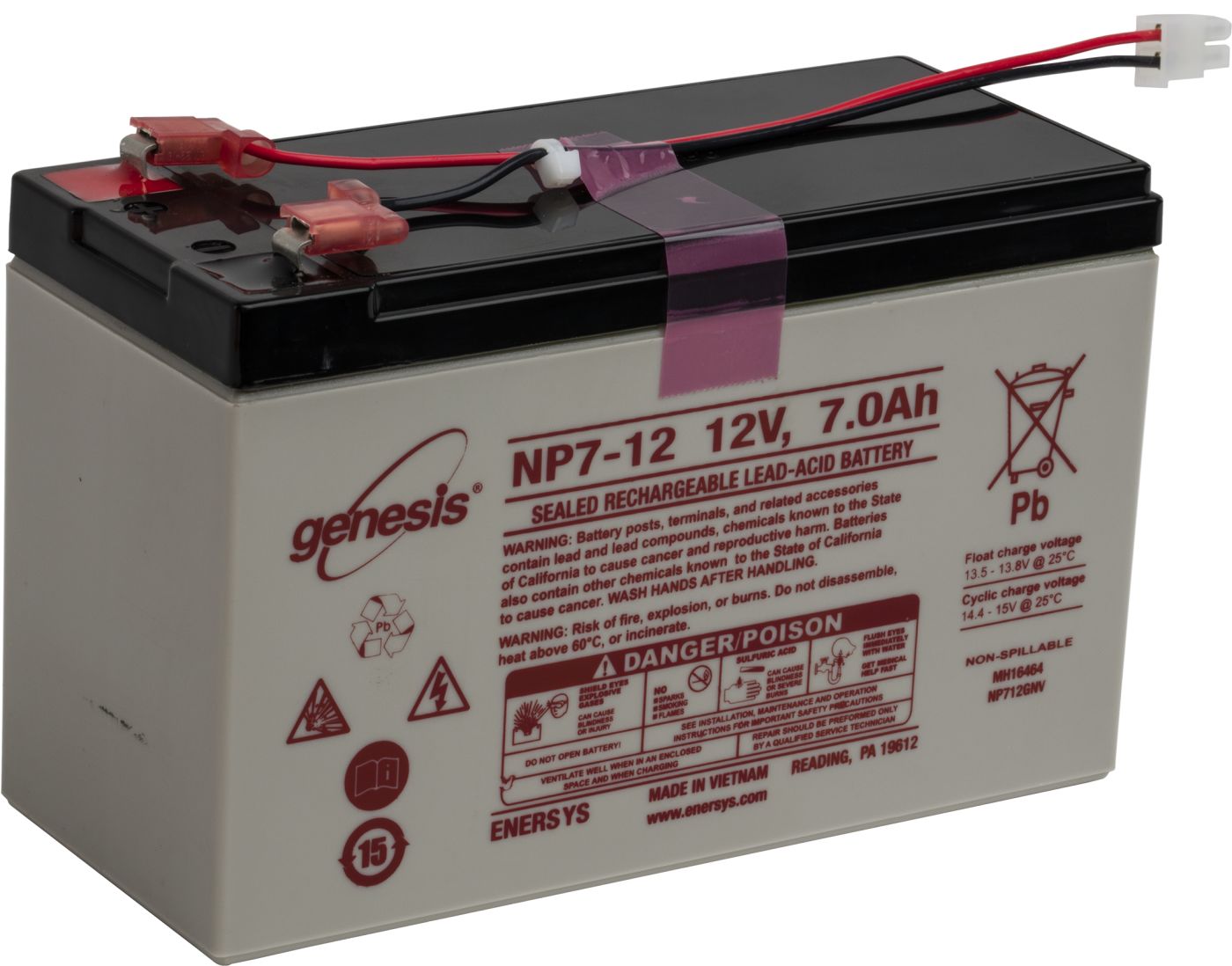

Replacement PS100/PS150 Sealed Rechargeable Battery, 7Ah
The 6182 is the internal 7 Ah sealed rechargeable battery contained in the PS100 and PS150 power supplies. This battery is available as a replacement part.
Technical Description
The 6182 battery was slightly redesigned in the Autumn of 2003, and now features the 17200 cable that connects the battery to the power supply. The 17200 cable is fitted with slip-on connections for the battery posts (in the earlier design, the leads were soldered onto the battery posts). The redesign allows the cable to be disconnected and replaced.
Specifications
- Output Voltage
- 12 Vdc
- Nominal Rating
- 7 Ah
- Weight
- 2.72 kg
(6 lb)
