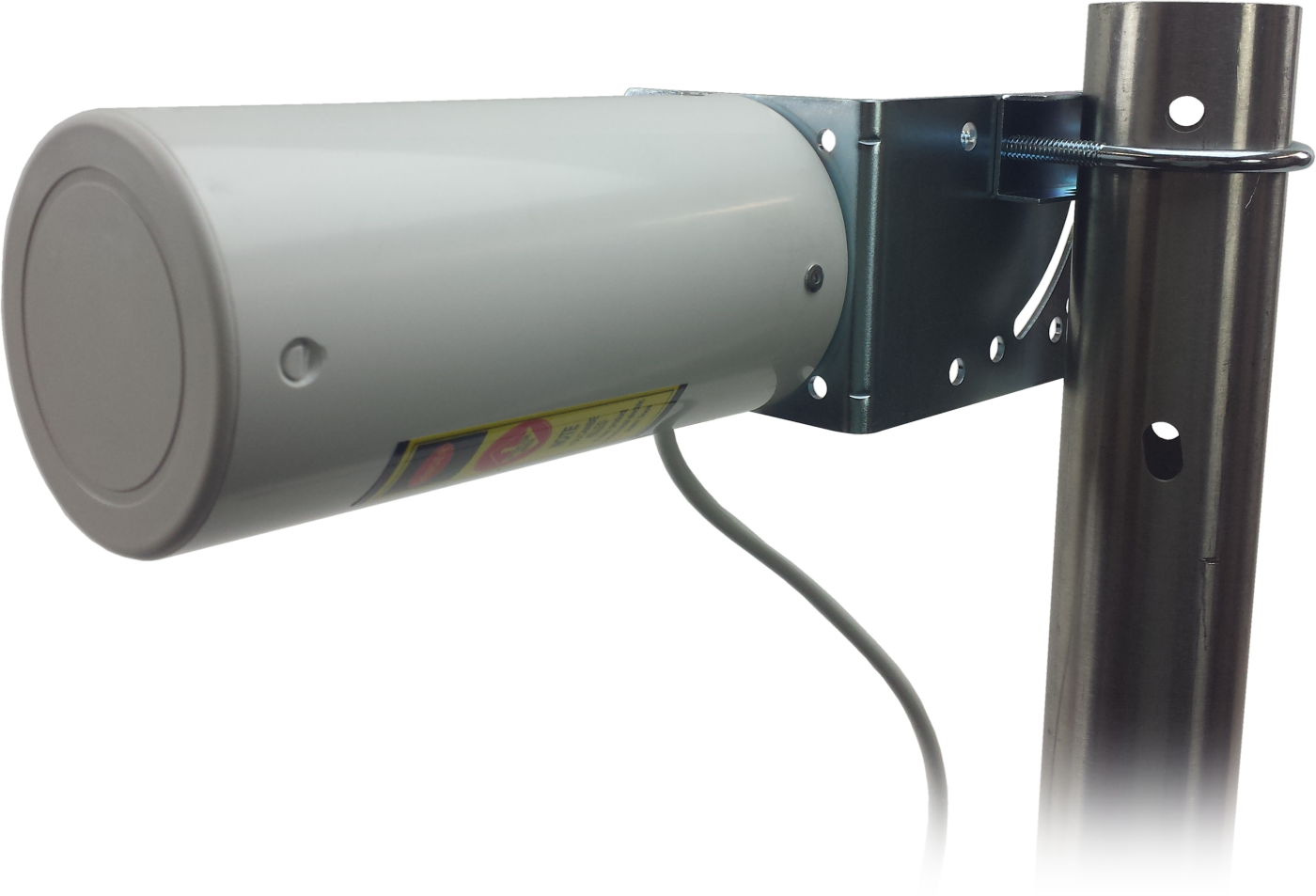

2.4 GHz 9 dBi Yagi Enclosed Antenna with Mounting Hardware
22072
Retired2.4 GHz 9 dBi Yagi Enclosed Antenna with Mounting Hardware
Pricing
- Model:
- 22072
- Item Number:
- 22072
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
ANT 2.4GHz 9dB Yagi Enclosed Type N Female w/Mounting Hardware, 0.3m (1ft)
The 22072 is a 6.8 dBd (9 dBi) directional Yagi antenna for use with our 2.4 GHz spread-spectrum products. The antenna's design makes it suitable for installing with either vertical or horizontal polarization. This antenna is directional, so precise aiming is mandatory.
Benefits
- Can be installed for either vertical or horizontal polarization
- Lightweight and includes tilt-and-swivel mast mount
- UV-stable, UL flame rated radome with 60° beam-width
- DC short lightning protection
- 12 in. coaxial lead terminated with an N-Female Connector
Specifications
- Radome Material
- UV-inhibited polymer
- Flame Rating
- UL 94HB
- Operating Temperature
- -40° to +85°C
- Mounting
- 32 to 51 mm (1.25 to 2.0 in.) diameter masts
- Polarization
- Vertical and horizontal
- Wind Survival
- > 241.4 kph
(> 150 mph)
- Compliance
- RoHS compliant
- Dimensions
- 152 x 76 mm
(6 x 3 in.)
- Weight
- 0.21 kg
(0.46 lb)
Electrical
- Frequency
- 2400 to 2500 MHz
- Gain
- 9 dBi
- -3 dB Beam Width
- 60°
- Impedance
- 50 ohm
- Maximum Input Power
- 50 W
- VSWR
- < 1.5:1
(average)
- Lightning Protection
- DC short
Wind Loading Data
- 160.9 kph (100 mph) Wind Speed
- 1.81 kg
(4 lb)
- 201.2 kph (125 mph) Wind Speed
- 2.72
(6 lb)
