End of life900 MHz 0 dBd Omnidirectional Antenna with Adhesive Mount
Pricing
- Model:
- 20644
- Item Number:
- 20644
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview

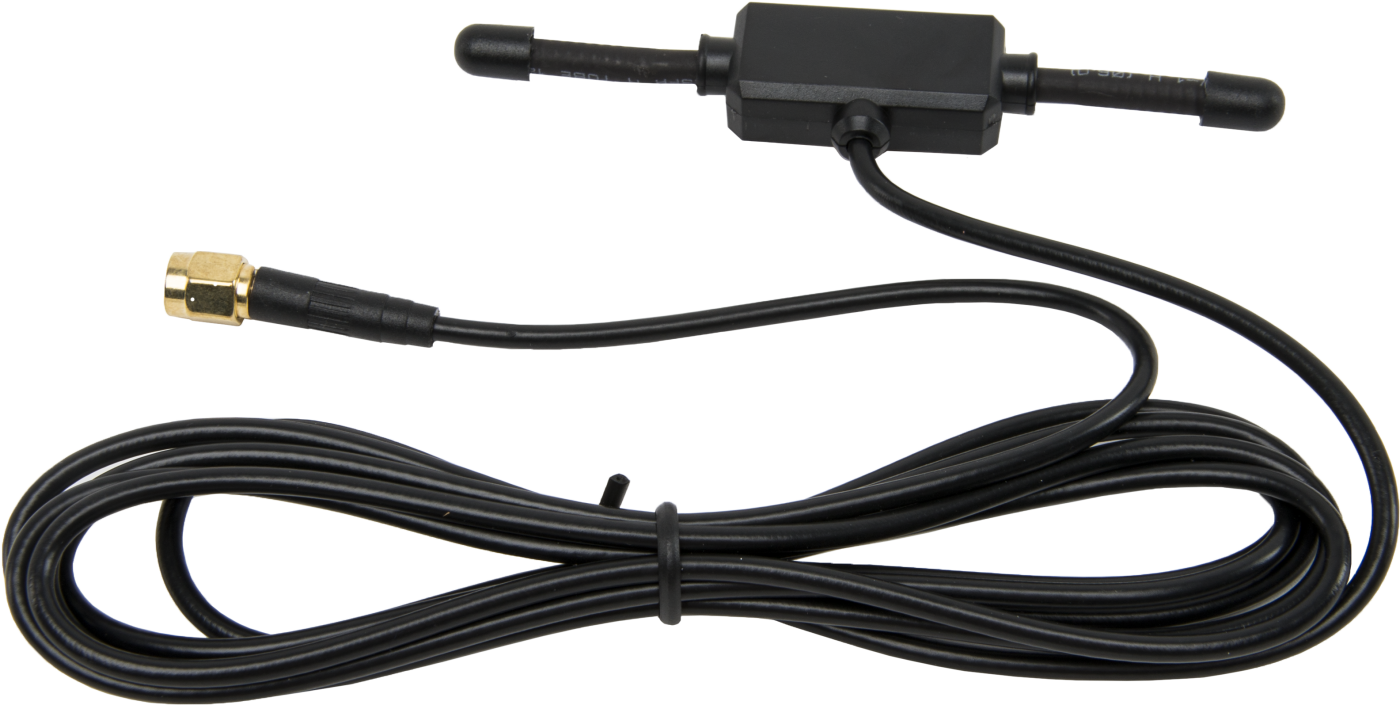

The 20644 is a 0 dBd, omnidirectional antenna used with the RF450 Spread-Spectrum Radio. Adhesive backing allows the antenna to adhere to a wall, rear-view mirror, window, or another suitable flat, non-conductive surface. The 20644 includes a 6.5 ft RG174 cable fitted with an SMA connector that attaches to the RF450 radio. The 20644 should be used indoors.
Technical Description
The 20644 is a unity gain, omnidirectional antenna used with the RF450 Spread Spectrum Radio. It has an adhesive backing that adheres to a wall, rear-view mirror, window, or another suitable flat, non-conductive surface. This indoor antenna is fitted with a cable that terminates an SMA female connector. The connector attaches directly to the RF450 radio.
Specifications
- Frequency Band Supported
- 900 MHz
- Gain
- 0 dBd
- Antenna Type
- Dipole, indooor antenna with adhesive backing and 1.98-m (6.5-ft) RG174 cable
- Cable Connector
- SMA Female
- Weight
- 45.36 g
(0.1 lb)
