End of life900 MHz 0 dBd 1/2 Wave Omnidirectional Antenna with SMA Connector
Pricing
- Model:
- 19512
- Item Number:
- 19512
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
The 19512 is a 0 dBd gain 1/2 wave antenna with an SMA connector and articulating base. It is designed for use with radios operating at 900 to 930 MHz. It is typically used with one of our 900 MHz radio products with an SMA antenna jack, such as the RF450. This small, low-cost antenna is typically used in applications where space is constrained and antenna gain is not required to maintain a strong RF link.

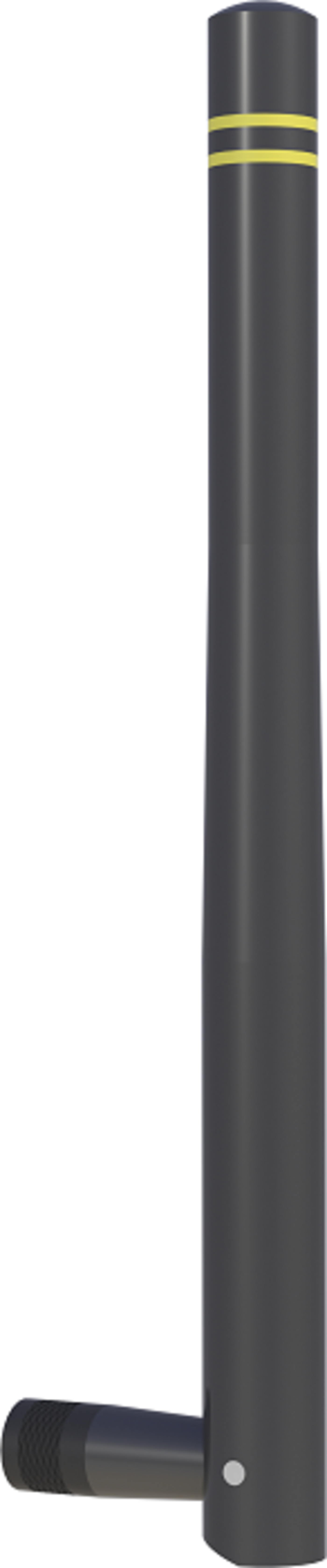

Note: The yellow stripes on the antenna indicate that this antenna operates with a center frequency of 916 MHz.
Technical Description
The 19512 is a 0 dBd gain 1/2 wave center-fed dipole antenna with an SMA male plug connector. It has an omnidirectional radiation pattern and a center frequency of 916 MHz. The articulating base allows the antenna to tilt 90 degrees and rotate 360 degrees. The antenna’s internal counterpoise eliminates external ground plane dependence. The internal O-ring seal on the connector improves the antenna's ruggedness when used in harsh conditions.
Note: The yellow stripes on the antenna indicate that this antenna operates with a center frequency of 916 MHz.
Specifications
- -NOTE-
- Electrical specifications measured with 10.16 cm x 10.16 cm (4 in. x 4 in.) reference ground plane.
- Connector
- SMA
- Center Frequency
- 916 MHz
- Frequency Range
- 900 to 930 MHz
- Gain
- 0 dBd
- Wavelength
- 1/2 wave dipole
- VSWR
- < 2.0 typical at center
- Impedance
- 50 ohm
- Operating Temperature Range
- -30° to +80°C
- Maximum Diameter
- 10.0 mm
(0.39 in.)
- Length when Straight
- 142 mm
(5.59 in.)
- Length when 90°
- 121 mm
(4.76 in.)
- Weight
- 13.61 g
(0.03 lb)
