19002
Enclosure Tripod Mast Mounting Kit
19002
OrderableEnclosure Tripod Mast Mounting Kit
Overview
ACC Enclosure Tripod Mast Mounting Kit (Ships as 26974 & 26976)
The 19002 is used to mount a Campbell Scientific enclosure to a tripod mast or to a user-supplied pole with a 1.25" to 2.1" outer diameter. The 19002 is option -MM when it's ordered with the enclosure.
Technical Description

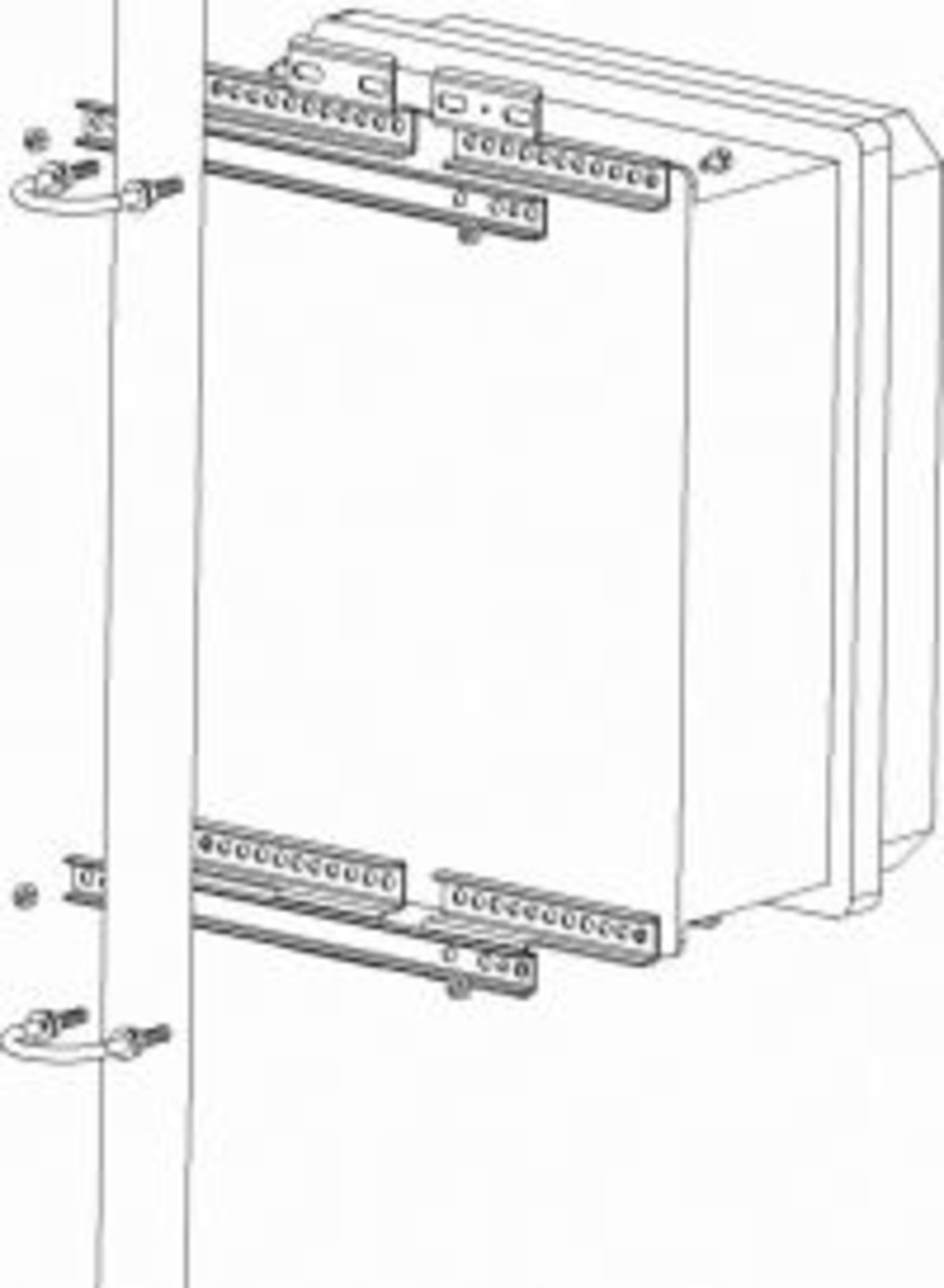

The 19002 consists of a three-piece bracket that attaches to the top of the enclosure and an identical three-piece bracket that attaches to the bottom of the enclosure. Each bracket is fastened to the mast or pole via a u-bolt.
Specifications
- Bracket Material
- Stainless steel
- U-bolt Size
- 5.08 cm
(2 in.)
- Dimensions
- 33.02 x 8.89 x 2.54 cm
(13.0 x 3.5 x 1.0 in.)
- Weight
- 1.02 kg
(2.25 lb)
