TGA Heated Intake Filter
18072
OrderableConfigurableTGA Heated Intake Filter
Pricing
Configuration
Sign in for option pricing- TGA Heated Intake Filter & OrificeTGA
- 0 TGA100A Heated Intake Filter -10 0.010 inch Orifice18072-10
- 18072-13 TGA100A Heated Intake Filter -13 0.013 inch Orifice18072-13
- 18072-7 TGA100A Heated Intake Filter -7 0.007 inch Orifice18072-7
- 18072-10 TGA Heated Intake Filter -10 0.010 inch Orifice18072-10
- 18072-7 TGA Heated Intake Filter -7 0.007 inch Orifice18072-7
- 18072-13 TGA Heated Intake Filter -13 0.013 inch Orifice18072-13
Select a configuration to add to your quote
- Model:
- 18072
- Item Number:
- 18072
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
TGA Heated Intake Filter & Orifice

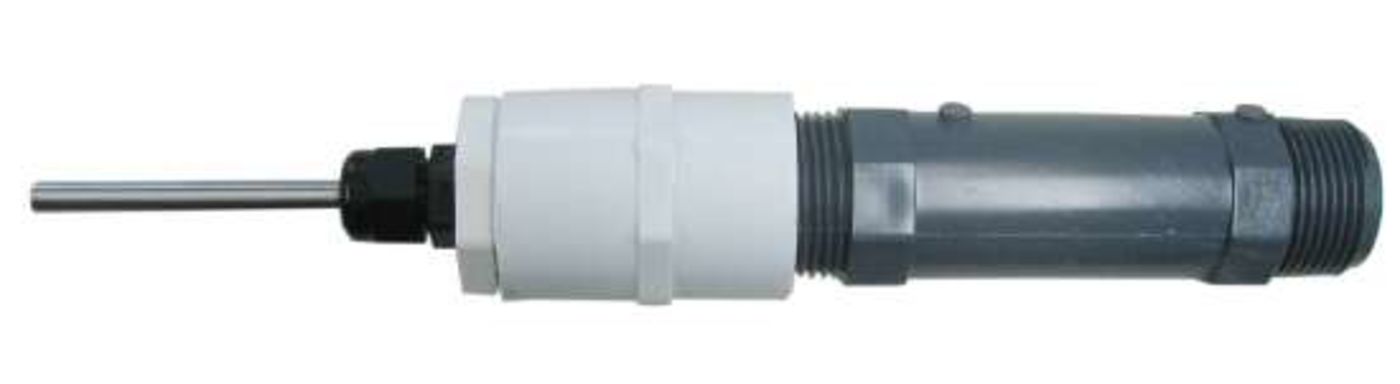

The 18072 Heated Intake Filter is used with trace-gas analyzer systems in low-flow applications, such as profile or gradient measurements. It is connected just downstream of the sample intake. The 18072 consists of a plastic housing that covers and insulates a heated filter and orifice assembly. The heater requires 12 Vdc, 0.5 W of power and includes a connector to attach a pn 18073 cable from a 12 Vdc source. Nominal flow for the three standard orifice sizes (0.007 in., 0.010 in., and 0.013 in.) is 0.26, 0.56, and 0.90 slpm (at sea level).
