Serial Cable, DB9 Pin (Male) to Pigtail
17855
OrderableSerial Cable, DB9 Pin (Male) to Pigtail
Overview
CABLE RS-232 or CS I/O DB9 Male to Pigtail, 0.6m (2ft)

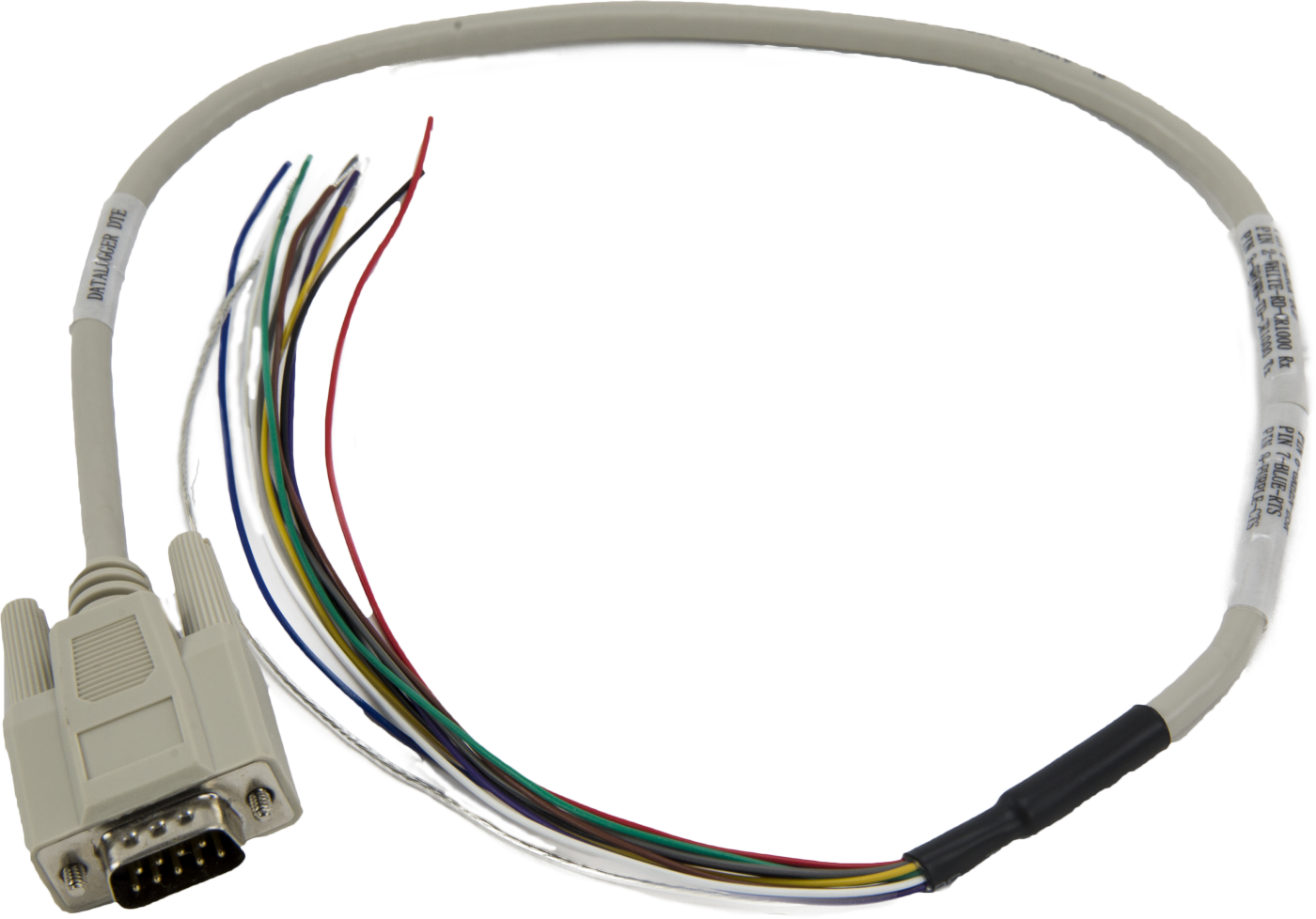

The 17855 provides a convenient method for wiring a DB9 connection to a terminal block. One end of the cable is fitted with a DB9 pin (male) connector. The other end of the cable has stripped and tinned leads. This cable is commonly used to connect the RS-232 port of an AVW200, cellular modem, or other serial DCE device to the terminals on a data logger.
Key Advantages
Wires a DB9 Connection to a Terminal Block
Technical Description
Stripped-Tinned Lead Connections:
| Lead Color | DB9 Pin Number | DTE Function |
| Black | 1 | DCD |
| White | 2 | RD |
| Brown | 3 | TD |
| Red | 4 | DTR |
| Yellow | 5 | GND |
| Green | 6 | DSR |
| Blue | 7 | RTS |
| Purple | 8 | CTS |
| Gray | 9 | RI |
| Clear | Shell | GND |
Specifications
- Length
- 0.6 m
(2 ft)
- Weight
- 63 g
