RetiredSC-IRDA Interface
Pricing
- Model:
- 17206
- Item Number:
- 17206
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

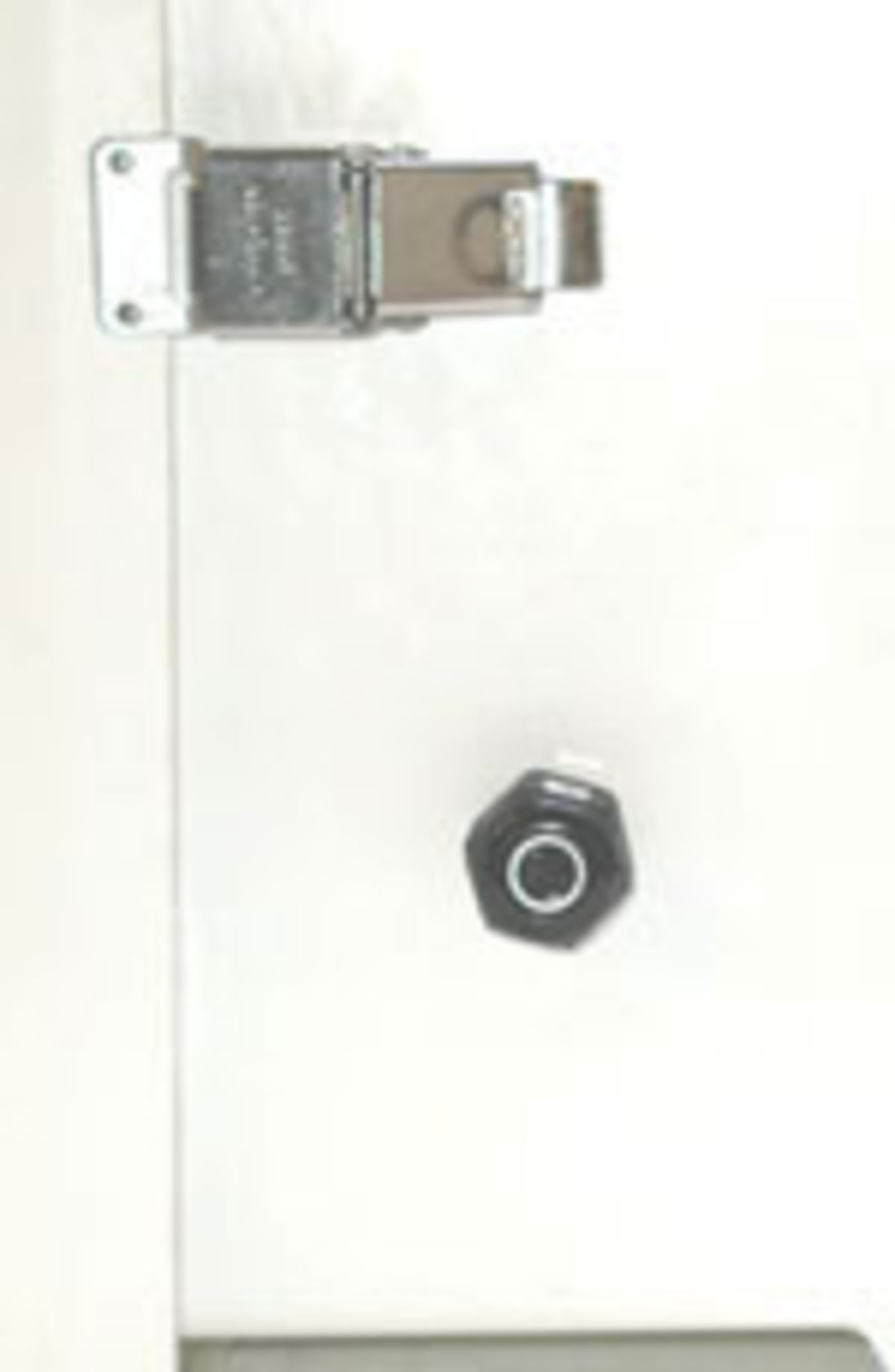

the 17206 is an SC-IRDA infrared interface factory installed in the enclosure bulkhead. When you purchase an enclosure and the 17206, Campbell Scientific will install the SC-IRDA in the enclosure bulkhead before the enclosure leaves the factory.The SC-IRDA is secured and sealed in the enclosure with a compression fitting. The SC-IRDA is an infrared interface that facilitates communication between the data logger and an infrared-equipped PDA. This device allows you to interrogate the data logger on site without opening the enclosure.
Technical Description
The 17206 must be ordered at the same time as a standard or prewired enclosure. When the 17206 is ordered, Campbell Scientific will install an SC-IRDA Infrared Interface in the enclosure's case. The SC-IRDA provides an infrared interface that facilitates communication between the data logger and an infrared-equipped PDA. This device allows you to interrogate the data logger on-site without opening the enclosure. PConnect software or PConnectCE software is required. The SC-IRDA is secured and sealed in the enclosure with a compression fitting.
Benefits
- Weather resistant to protect instruments
- Interrogate the data logger on site without opening the enclosure
Specifications
- Power
- Supplied by data logger 5 V
(on CS I/O port)
- Typical Current Drain
- 0.17 mA
(standby)
- Typical Current Drain
- 6.2 mA
(active)
- Baud Rate
- 9600 (default)
Rates up to 19200 selectable via software. - Communication Range
- Up to 20 cm (8 in.) with typical lighting
- Acceptance Angle
- 30º
- Communication Standard
- Conforms to the IRDA low power SIR specifications as supported by most Palm PCs and laptops.
- PDA Handheld Requirements
- Must have an IRDA sensor and an IR chipset compatible with the SC-IRDA.
(See PConnect or PConnectCE product brochure for other PDA requirements.)
- CE Compliance
- Complies with EMC standard EN61326:1996.
