Surge Suppressor Kit for UHF or VHF Radios
16980
End of lifeSurge Suppressor Kit for UHF or VHF Radios
Pricing
- Model:
- 16980
- Item Number:
- 16980
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
Surge Suppressor Kit For UHF or VHF Radios
The 16980 Surge Suppressor Kit can help protect our narrow-band radios from electrical transients conducted through the antenna cable. The kit contains an 18 in. coaxial cable that attaches the radio to the kit's surge suppressor. The other end of the surge suppressor attaches to the antenna cable (purchased separately).
Technical Description
The 16980 Surge Suppressor Kit can help protect our narrow-band radios from electrical transients conducted through the antenna cable. The kit contains an 18-inch coaxial cable that attaches the radio to the kit's surge suppressor. The other end of the surge suppressor attaches to the antenna cable (purchased separately).

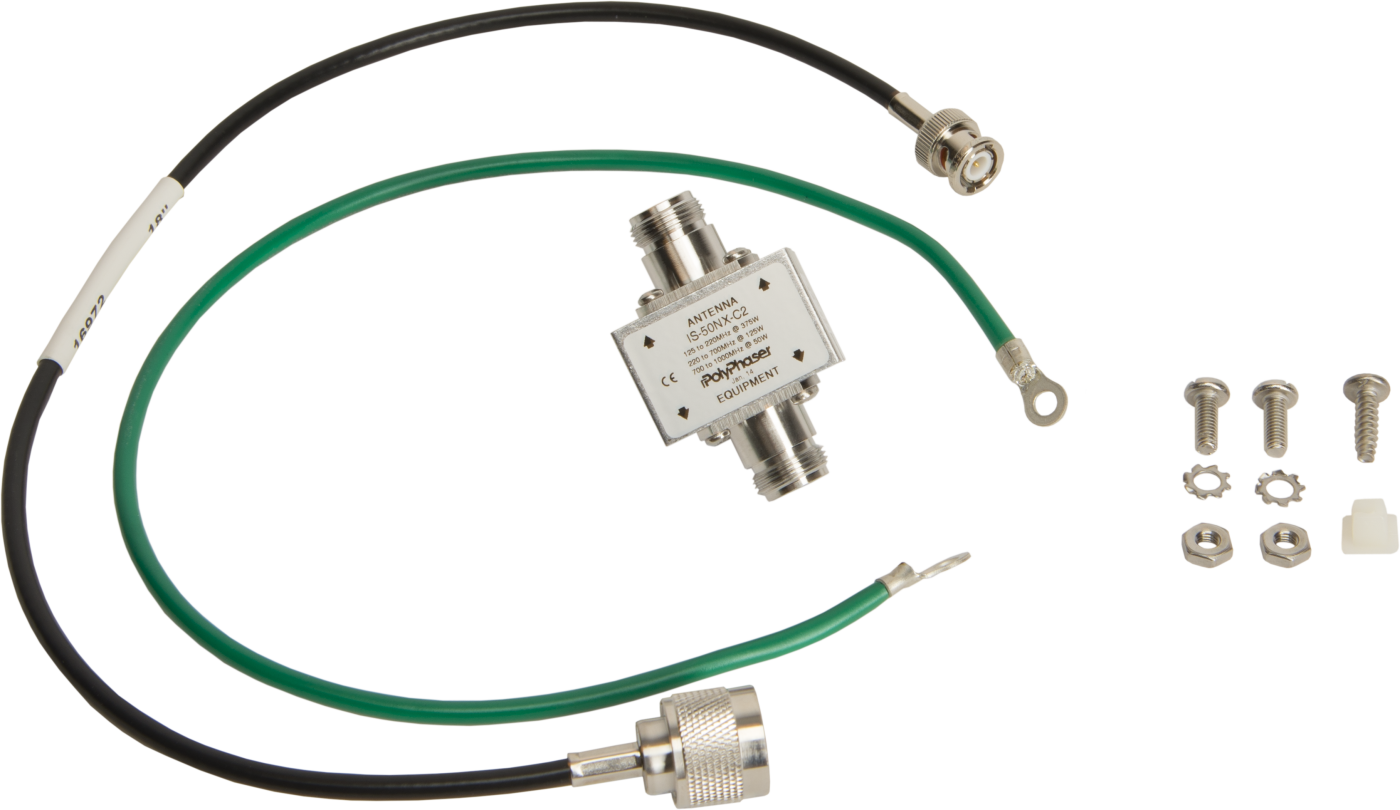

The 16980 Surge Suppressor Kit includes the following:
- Surge Suppressor (PolyPhaser® or similar). The surge suppressor is fitted with two type N female connectors.
- 18-inch RG58/U Coaxial Cable that connects the surge suppressor to the radio (fitted with BNC connector).
- pn 4335 ground wire (1.5 ft length)
- Screws and grommets that secure the ground wire and surge suppressor to an enclosure backplate
Specifications
- Surge Suppressor Connectors
- Type N female on both ends
- Cable Type
- RG58/U coaxial
- Cable Connectors
- BNC connects to the radio.
- Cable Connectors
- Type N male connects to surge suppressor.
Ships With
(2)- #15763 screw
- 16972 18\" cable
