15920
OrderableDIN Rail Mountable 3-Wire 4 mm Spring-Loaded Connector
Overview
CON DIN TRM Spring 3-Trm 1-Lvl 1-Circ 16-28 AWG Gray WAGO 279-681

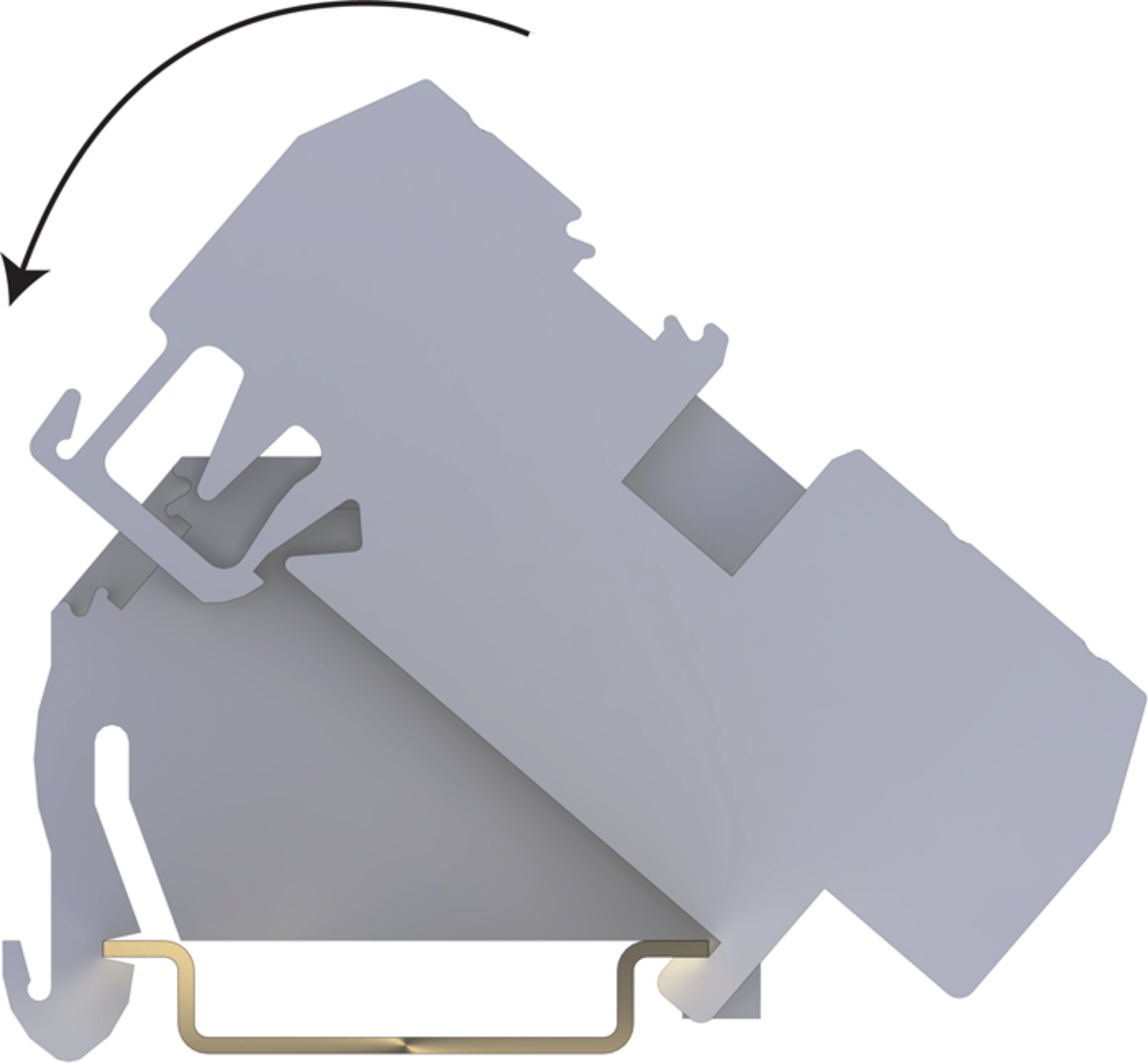

The 15920 is a DIN rail mountable terminal connector that can be used between sensors (or other devices) and a data logger. The 15920 is a three-wire, 4-mm spring-loaded connector. An 8125 flat-bladed screwdriver is used to open the spring-cages for wire entry.
Specifications
- Hardware Type
- Terminal block
- Why/When to Use
- Sensor connections
- Grounded
- No
- Number of Wires
- 3 (28 to 16 AWG)
- Connection Method
- Spring clamp
- Maximum Ferrule Size
- 22 AWG
- Mounting Width
- 3 mm
- Dimensions
- 6.22 x 0.38 x 6.22 cm
(2.45 x 0.15 x 2.45 in.)
- Weight
- 4.54 g
(0.01 lb)
