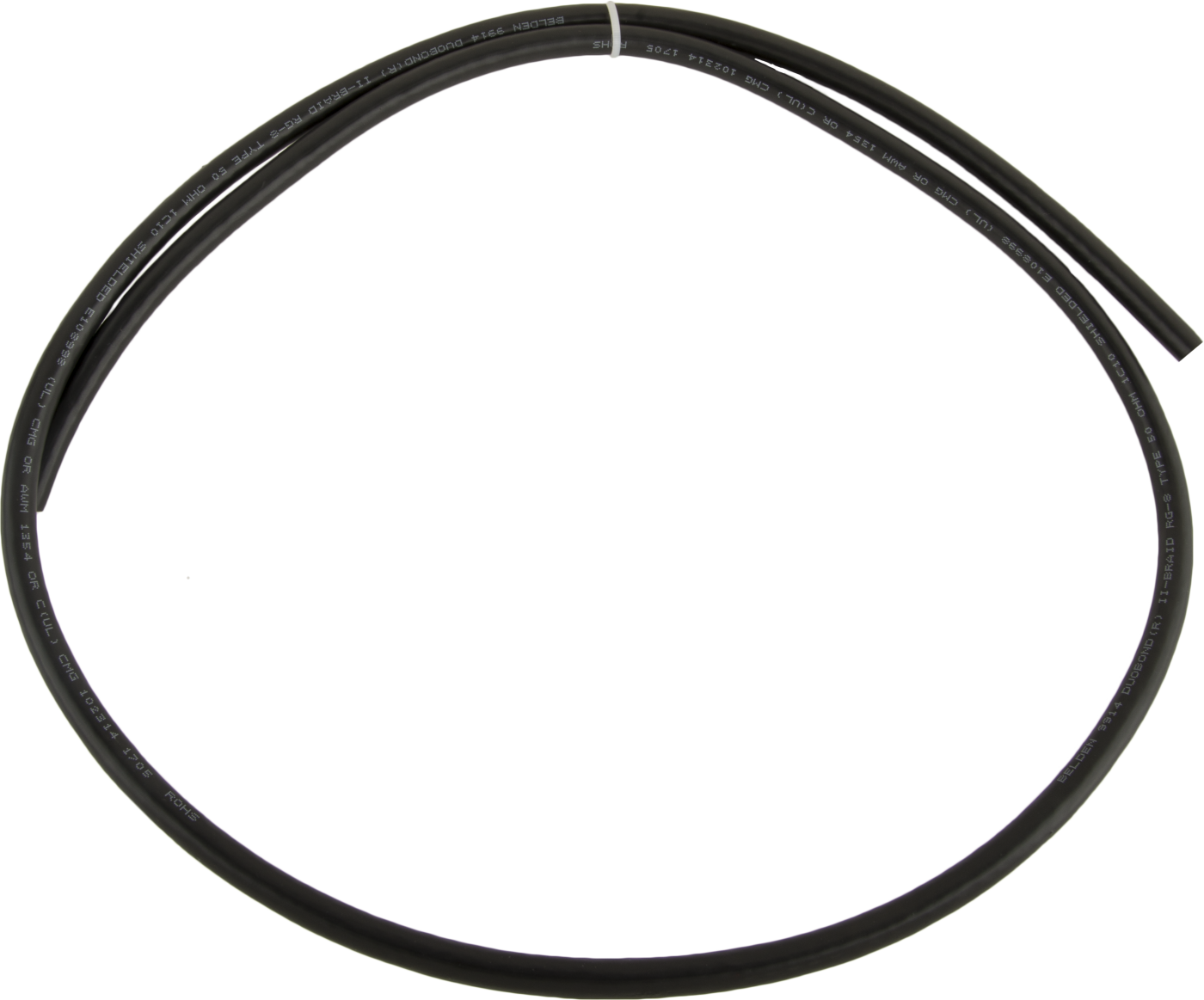

10 AWG RG8/U Shielded PVC Coaxial Cable
10270
Orderable10 AWG RG8/U Shielded PVC Coaxial Cable
Pricing
Pricing temporarily unavailable.
- Model:
- 10270
- Item Number:
- 10270
- Warranty:
- No Warranty
Overview
CABLE COAX 10 AWG Shielded PVC RG8 50 Ohm Black
The 10270 is the 50 ohm low-loss RG8 coaxial cable used to construct the COAXTDR-L and COAXNTN-L. The CS610 TDR Probe is also fitted with this cable. The Ordering Information lists the per foot price of raw cable. When purchased as raw cable, the 10270 is cut to user-specified length. The cable is not terminated in heat shrink, and connectors are not included.
Specifications
- Impedance
- 50 ohm
- Nominal Inductance
- 0.065 µH/ft
- Nominal Capacitance Conductor to Shield
- 24.8 pF/ft
- Nominal Velocity of Propagation
- 0.84
- Nominal Delay
- 1.24 ns/ft
- Operating Temperature
- -40° to +80°C
- Maximum Recommended Pulling Tension
- 112.04 kg
247 lb
- Minimum Bend Radius (minor axis)
- 10.16 cm
4 in.
- Conductor
- 10 AWG solid bare copper center conductor
- Insulation
- Gas-injected foam HDPE insulation
- Outer Shield
- 2-layer outer shield - Bonded Duofoil + tinned copper braid
- Jacket
- PVC jacket
- Nominal Diameter
- 1.024 cm
(0.403 in.)
- Weight
- 105 lb/1000 ft
