092-L

Barometer
092-L

092-L

RetiredConfigurable

Barometer

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
092-L
Item Number:
28040
Warranty:
1 year
Lead time:
14 days

Overview

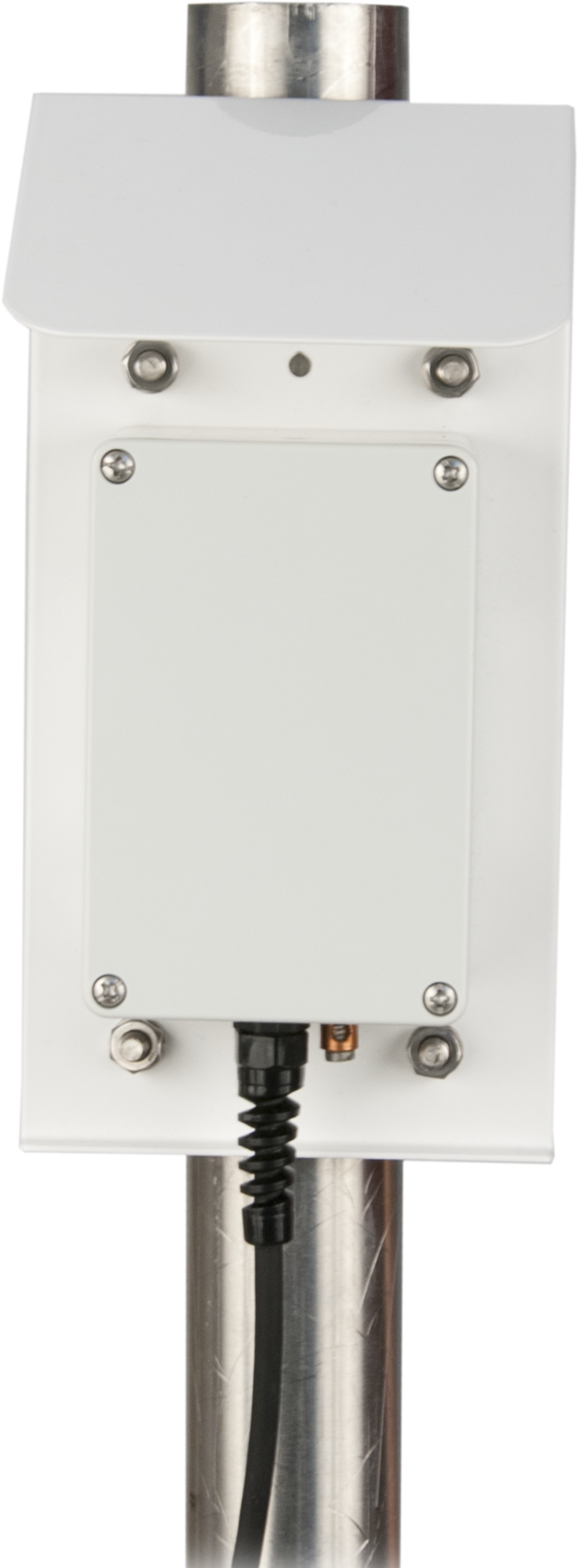

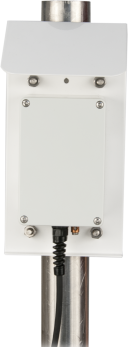

092-L Met One Barometer Sensor

The 092, manufactured by Met One, is a barometric pressure sensor that is commonly used with the WMS100 for wind-farm power performance measurements. It has a polycarbonate casing and a metal weather shield, so it is rugged and weatherproof. You can use it indoors or outdoors, and it provides digital and analog outputs.

Key Advantages

Suitable for Wind-Farm Power Performance Measurements

Specifications

Measurement Description
Barometric pressure
Signal Type/Output
Analog voltage
-NOTE-
1 hPa = 1 mBar
Pressure Range
600 to 1100 hPa
Elevation
Sea level to 3048 m

(10,000 ft)

Resolution
0.1 hPa
Long-Term Stability
±1.0 hPa in 1 year
Analog Output
0 to 1 Vdc, 0 to 2 Vdc, 0 to 2.5 Vdc, or 0 to 5 Vdc

(Analog output automatically adjusts from zero to full scale for range selected.)

Digital Output
RS-232, RS-485, and SDI-12
Digital Protocol
ASCII Terminal Mode, RTU for RS-232 and RS-485
Baud Rates
1200, 2400, 4800, 9600, 19.2k bps
Current Consumption
10 mA @ 12 Vdc

(typical)

Power Range
6 to 16 Vdc
Temperature Range
-40° to +55°C
Elevation
~609.6 m (2,000 ft) below sea level (as in a mine) to 3,657.6 m (12,000 ft) above sea level
Accuracy
±0.35 hPa

(@ 20°C)

Accuracy
±1.0 hPa

(±0.03 in Hg) over full range

Accuracy
±0.5 hPa

(over any 200 hPa range)

Dimensions
12.0 x 8.0 x 5.5 cm

(4.72 x 3.14 x 2.16 in.)

Weight
250 g

(8.8 oz)
