NL120
NL120
End of lifeConfigurableEthernet Interface
Pricing
- Model:
- NL120
- Item Number:
- 20744
- Warranty:
- 1 year
- Lead time:
- 7 days
- Compliance:
- requires datalogger peripheral port
Overview

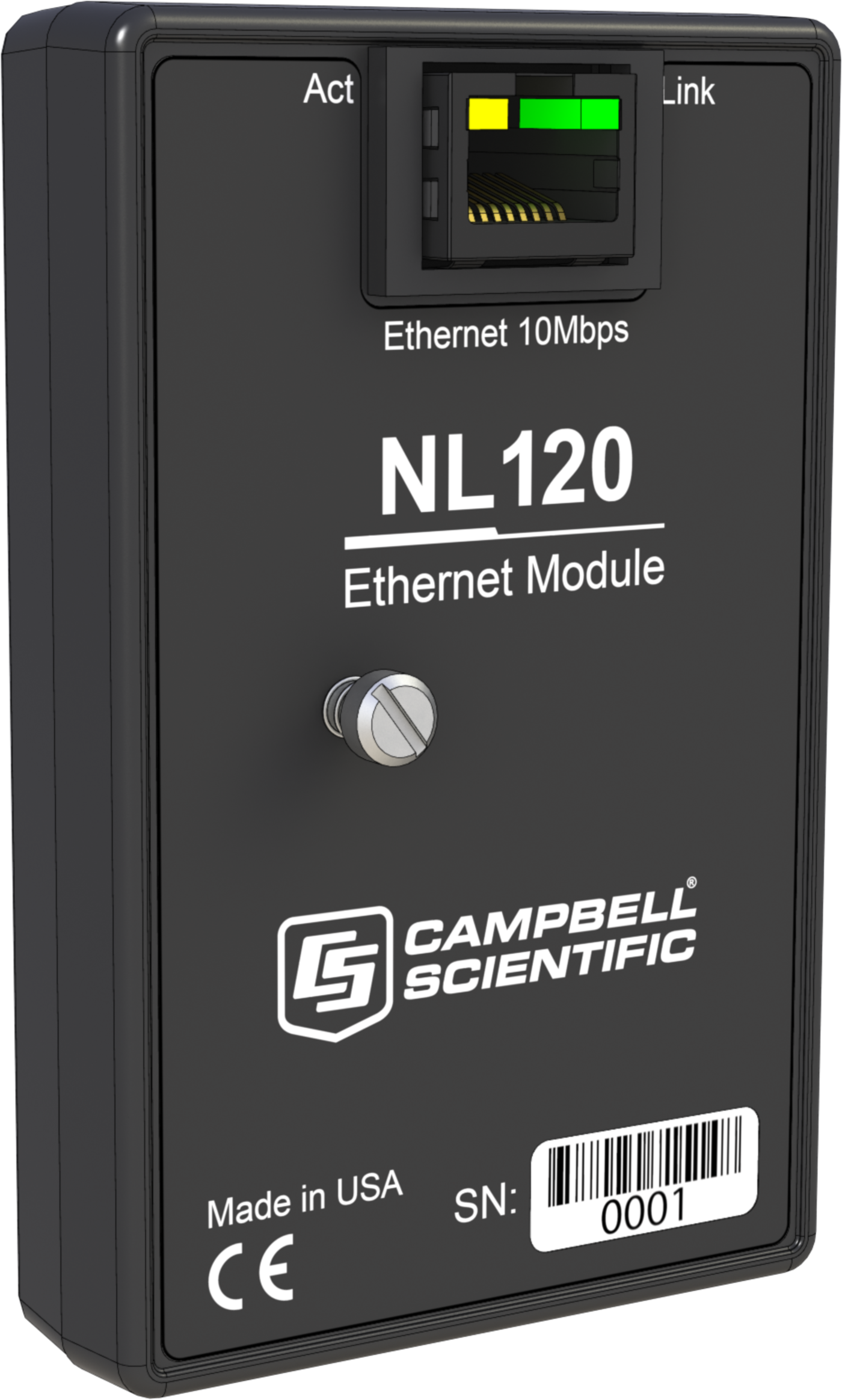

The NL120 allows the data logger to communicate over a local network or a dedicated Internet connection via TCP/IP. This small, rugged communication device connects directly to the 40-pin peripheral port on a CR1000 or CR3000 datalogger.
Key Advantages
Connects dataloggers to LAN or Internet via Ethernet
Technical Description
The NL120 uses a straight through cable when the cable is run from a hub to the NL120. A 10baseT Ethernet crossover cable is used if the cable is run directly from the computer to the NL120. For cable lengths longer than 9 feet, either a shielded 10baseT Ethernet cable or the 28033 surge protector needs to be used.
The NL120 is set up using the Device Configuration utility (DevConfig). DevConfig is bundled with our PC400, RTDAQ, and LoggerNet software and is available, at no charge, from: www.campbellsci.com/downloads
Benefits
- Compatible with CR1000 and CR3000
- Connects a data logger to a network
- Smallest Ethernet module available for the CR1000 and CR3000
Specifications
- Power Requirements
- 12 V
(supplied through the data logger’s peripheral port)
- Ethernet Speed
- 10Base-T (10 Mbps), half-duplex
- Typical Current Drain
- 20 mA
- Dimensions
- 10.2 x 6.4 x 2.8 cm
(4.0 x 2.5 x 1.1 in.)
- Weight
- 66.62 g
(2.35 oz)
EMI and ESD Protection
- European Standards
- Meets requirements for a class A device under European Standards.
- Application of Council Directive(s)
- 89/336/EEC as amended by 89/336/EEC and 93/68/EEC
- Standards to Which Conformity Is Declared
- EN55022-1; 1995 and EN50082-1: 1992
Software Requirements
- LoggerNet
- Version 3.2 or later
- PC400
- Version 1.3 or later
- DevConfig
- Version 1.5 or later
Accessories
(8)28900
CAT5e Ethernet Unshielded Cable with RJ45 Connectors, 10 ft
Orderable13659
CAT5e Ethernet Unshielded Crossover Cable, 7 ft
Limited availability28033
Ethernet In-line Surge Protection
Orderable28898
CAT6 Ethernet Unshielded Cable with RJ45 Connectors, 6 in.
Orderable28899
CAT6 Ethernet Unshielded Cable with RJ45 Connectors, 2 ft
Orderable18148
CAT5e Ethernet Crossover Cable, 25 ft
Orderable28901
CAT5e Ethernet Unshielded Cable, RJ45 to RJ45, 50 ft
OrderableCAT5UCBL
Unshielded CAT5e Cable with RJ45 Connectors
Retired
