Mesa 2
Mesa 2
End of lifeMS2-100 Rugged Tablet, Standard North American Model
Pricing
- Model:
- Mesa 2
- Item Number:
- 33404
- Warranty:
- 2 Years
Overview

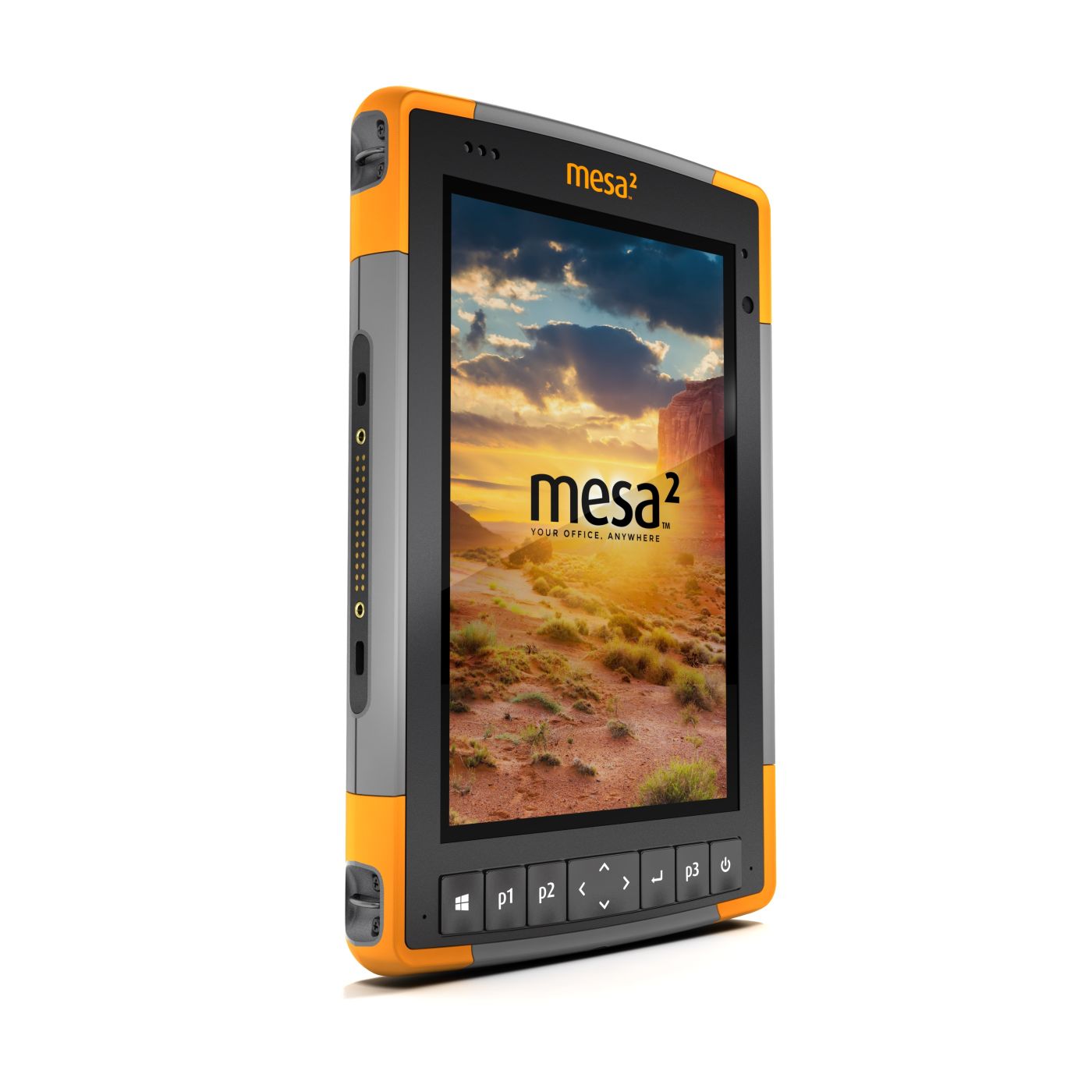

The Mesa 2 Rugged Tablet, manufactured by Juniper Systems, offers a sleek package with the highest-rated protection against water and dust, enabling it to endure the harshest environments in existence. Running Windows 10 (or Windows 8.1), the Mesa 2 brings powerful functionality to mobile data collection. The Mesa 2 features a large, 7 in., extra-bright display for easily viewing maps or images, all-day battery power lasting up to 15 hours, and unmatched ruggedness.
With a full Windows operating system, the entire data collection process can be carried out, from start to finish, on the Mesa 2. For example, a user can snap a photo, record field notes, or capture a GNSS location, and then analyze the data that was just collected using the Mesa 2. Its fast processor and lightweight, ergonomic design ensure maximum efficiency and minimal fatigue. The Mesa 2 packs all the functionality of a desktop computer into one ultra-tough tablet, making it a portable office for any environment.
Key Advantages
Withstands same outdoor conditions as Campbell Scientific equipment
Technical Description
Campbell Scientific offers four versions of the Mesa 2, which are outlined below.
MS2-100 STD N. America
This standard model offers Wi-Fi and Bluetooth technology and is configured for use in North America.
MS2-101 STD EU/CE
This standard model offers Wi-Fi and Bluetooth technology and is configured for use in the European Union and has a CE marking.
MS2-102 GEO N. America
This geo model is configured for use in North America and offers the following features:
- Wif-Fi and Bluetooth
- GNSS
- 8 MP rear camera
- 2 MP front camera
MS2-103 GEO EU/CE
This geo model is configured for use in European Union, has a CE marking, and offers the following features:
- Wif-Fi and Bluetooth
- GNSS
- 8 MP rear camera
- 2 MP front camera
Benefits
- Windows 10 operating system for powerful, versatile functionality
- Extra-large display for maximum visibility in any lighting conditions
- Portrait or landscape orientation with automatic screen rotation
- Projected capacitive multi-touch interface for use with gloves or small-tip stylus, and in wet conditions
- All-day battery life
- Superior ergonomics and lightweight design for maximum comfort and minimal fatigue
- IP68 rating for complete protection against water and dust
Specifications
- Display/Keyboard Description
- 17.78 cm (7 in.) display and touch sensor
- Processor
- Quad-core Intel Atom Z3745 processor
- Operating System and Software
- Microsoft Windows 8.1/10
- Languages Supported
- English, French, Spanish, German, Portuguese
- Memory and Data Storage
- 4 GB RAM (LPDDR3)
- Memory and Data Storage
- 64 GB or 128 GB flash storage options
- Memory and Data Storage
- User-accessible MicroSDXC card slot
- Graphics
- Intel HD Graphics
- Active Viewing Area
- 178 mm
(7 in.)
- Resolution
- WXGA
(1280 x 800)
- Wireless Connectivity Options
- Long-range Bluetooth Smart Ready wireless technology, v4.0 +EDR, Class 1.5, BLE support
- Wireless Connectivity Options
- Wi-Fi 802.11 a/b/g/n, 2.4 GHz and 5 GHz
- Wireless Connectivity Options
- 4G LTE, support for GSM or Verizon networks
- Battery
- Removable Li-Ion battery, 39 Whr
- Battery
- Operates 8 to 10 hours on one charge
- Ingress Protection
- IP68 waterproof and dustproof
- Temperature Range
- -20° to +50°C
(operating)
- Temperature Range
- -30° to +70°C
(storage)
- Ports
- USB 3.0 x 1
- Ports
- 3.5 mm audio jack
- Ports
- 12 Vdc power input jack
- Ports
- Docking port connections
(Pwr, USB 2.0, and HDMI)
- Ports
- Optional RS-232 9-Pin D-Sub connector with 5 Vdc power output
- Certifications and Standards
- FCC Class B
- Certifications and Standards
- CE Marking
(applicable EMC, R&TTE, and LVD directives)
- Certifications and Standards
- Industry Canada
- Certifications and Standards
- EN60950 Safety
- Certifications and Standards
- RoHS 2 Compliant
- Designed for MIL-STD-810G Test Procedures
- Method 500.5 Low Pressure (Altitude)
- Designed for MIL-STD-810G Test Procedures
- Method 501.5 High Temperature
- Designed for MIL-STD-810G Test Procedures
- Method 502.5 Low Temperature
- Designed for MIL-STD-810G Test Procedures
- Method 503.5 Temperature Shock
- Designed for MIL-STD-810G Test Procedures
- Method 506.5 Rain
- Designed for MIL-STD-810G Test Procedures
- Method 507.5 Humidity
- Designed for MIL-STD-810G Test Procedures
- Method 510.5 Sand and Dust
- Designed for MIL-STD-810G Test Procedures
- Method 512.5 Immersion
- Designed for MIL-STD-810G Test Procedures
- Method 514.6 Vibration
- Designed for MIL-STD-810G Test Procedures
- Method 516.6 Shock
- Dimensions
- 215 x 137 x 35 mm
(8.48 x 5.40 x 1.36 in.)
- Weight
- 680 to 907 g
(1.5 to 2.0 lb) depending on battery configuration
GEO Version: Camera
- Rear
- 8 MP
(with LED illumination)
- Front
- 2 MP
GEO Version: GPS/GNSS
- Typical Accuracy
- 2 to 5 m
(6.56 to 16.4 ft)
- Antenna Type
- uBlox NEO-M8N GNSS receiver and integrated antenna
- Receiver Type
- Integrated real-time SBAS receiver
(WAAS, EGNOS, etc.)
- Tracking Channels
- 72 GNSS tracking channels
