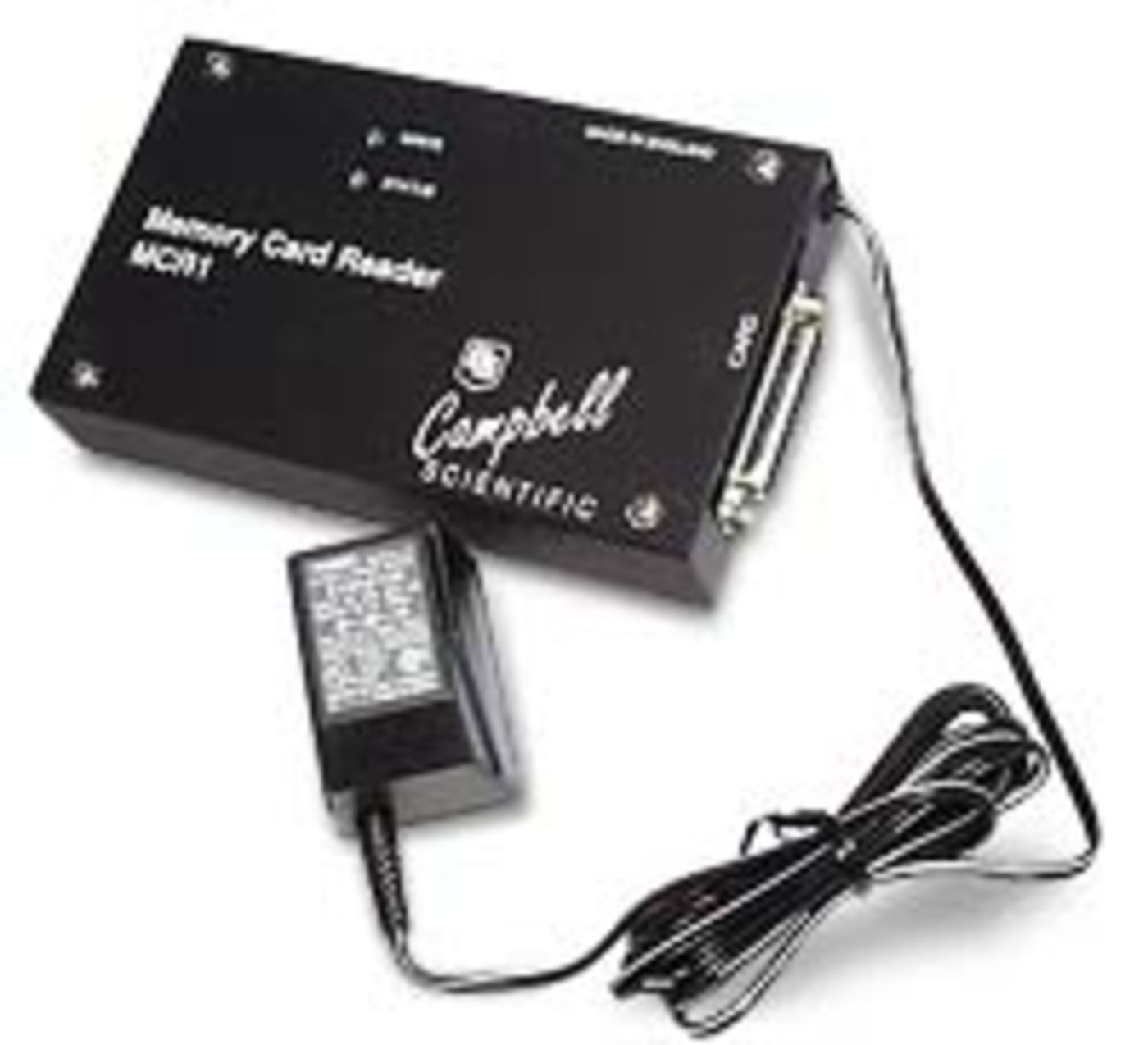

MCR1
MCR1
End of lifeCSL Memory Card Reader for Mixed-array Dataloggers & DSP4
Pricing
- Model:
- MCR1
- Item Number:
- 17273
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
The MCR1 is only compatible with our mixed-array data loggers and the DSP4 Heads Up Display. (See the Compatibility information.) In a single package, it includes both the CSM1 and a SC532(A). The MCR1 connects to an IBM-compatible computer via a 7026 cable (supplied). AC power and SMS software are required.
Please note that availability varies by country; please contact a Campbell Scientific office or representative to discuss your data storage requirements.
Technical Description
The MCR1 is only compatible with our mixed-array data loggers and the DSP4 Heads Up Display. (See the Compatibility information.) In a single package, it includes both the CSM1 and a SC532(A). The MCR1 connects to an IBM-compatible computer via a 7026 cable (supplied). AC power and SMS software are required.
Please note that availability varies by country; please contact a Campbell Scientific office or representative to discuss your data storage requirements.
Specifications
- Memory Configuration
- Fill-and-stop; data segregated into files by filemarks
- Baud Rate
- Data transfer is typically 9600 or 19,200 baud.
Contact Campbell Scientific for information on using the module with Burst Mode.
- Supply Voltage
- 110 Vac to 7.5 Vdc adapter (factory installed) or 6 to 17 Vdc (with modification by user)
- Interface Type
- 25-pin, D-type sub-miniature socket, RS-232C DCE interface
- RS-232 Output Levels
- 5 V
(minimum with 3000 Ω load)
Current Drain @ 25°C
- Quiescent
- RTS low = 16 mA
(maximum)
- Active
- memory test (worst case) = 30 mA
(typical)
RS-232 Input Levels
- Low Threshold
- 0.8 V
(maximum)
- High Threshold
- 2.0 V
(minimum)
- Maximum Input Limit
- 30 V
- Minimum Input Resistance
- 3500 Ω
