LWS

Leaf-Wetness Sensor
Archive

LWS

OrderableConfigurable

Leaf-Wetness Sensor

Best for general applications. No painting required.

Pricing

Sign in for pricing

Configuration

Sign in for option pricing

Select a configuration to add to your quote

Model:
LWS
Item Number:
45342
Warranty:
1 year
Lead time:
30 days

Overview

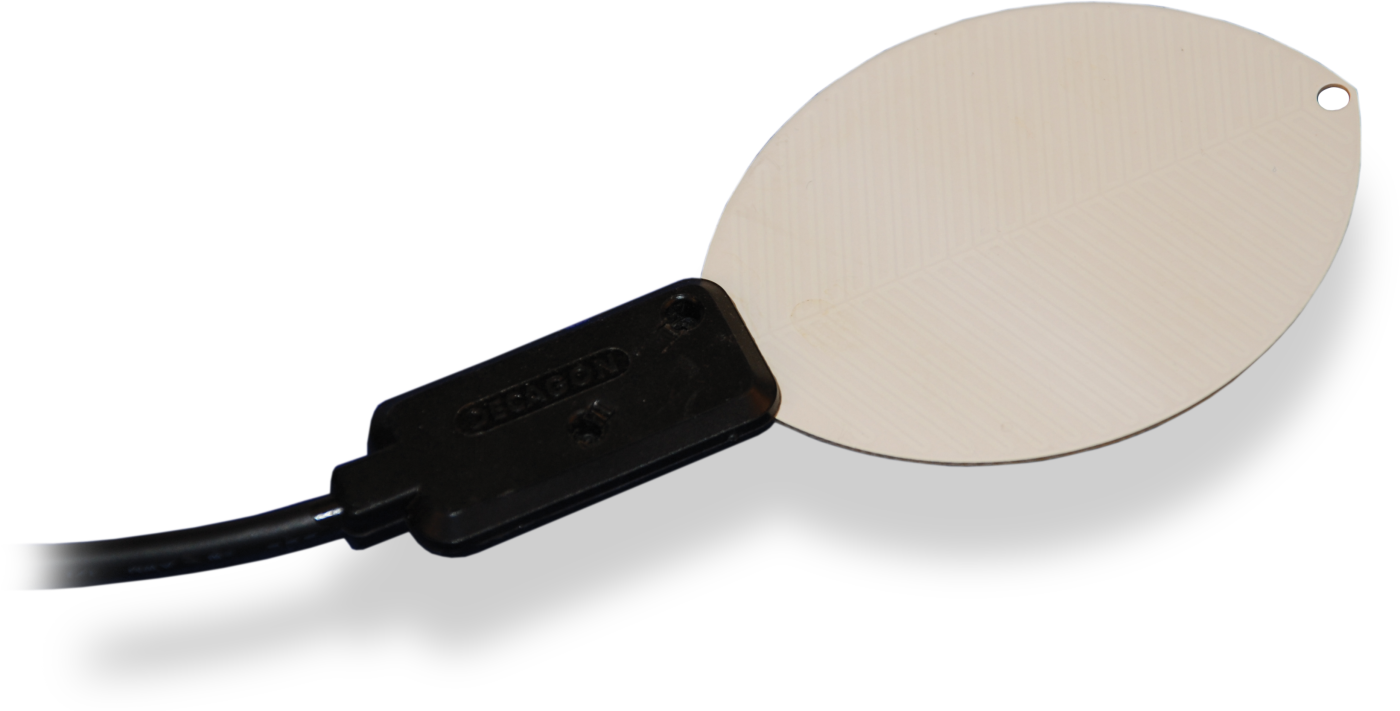

Meter Phytos 31 Leaf Wetness Sensor

The LWS, manufactured by METER Environment, can detect small amounts of water or ice on the sensor surface for leaf wetness applications. Because the LWS measures the dielectric constant of the sensor’s upper surface, it can detect the presence of water or ice anywhere on the sensor’s surface.

The LWS is designed to be deployed either in the canopy or on a weather station mast. Two holes in the non-sensing portion of the sensor body are provided for attaching the sensor to a pole or branch via twist ties or with 4-40 bolts.

Key Advantages

Sensitive yet Durable
Compatible with most Campbell Scientific data loggers

Benefits

  • Imitates characteristics of a leaf
  • Does not require painting or calibration of individual sensors
  • Detects trace amounts of water or ice on the leaf surface

Specifications

Measurement Description
Dry, frosted, wet
Signal Type/Output
Analog voltage
Measurement Time
10 ms
Power
2.5 Vdc @ 2 mA to 5 Vdc @ 7 mA
Output
250 to 1500 mV

(millivolt reading relates to moisture state)

Operating Temperature Range
-40° to +60°C
Life Expectancy
2+ years

(continuous use)

Painting
Does not require painting.
Dimensions
12.0 x 5.8 x 0.8 cm

(4.7 x 2.3 x 0.3 in.)

Weight
0.14 kg

(5 oz) with 4.57 m (15 ft) cable

Related Resources

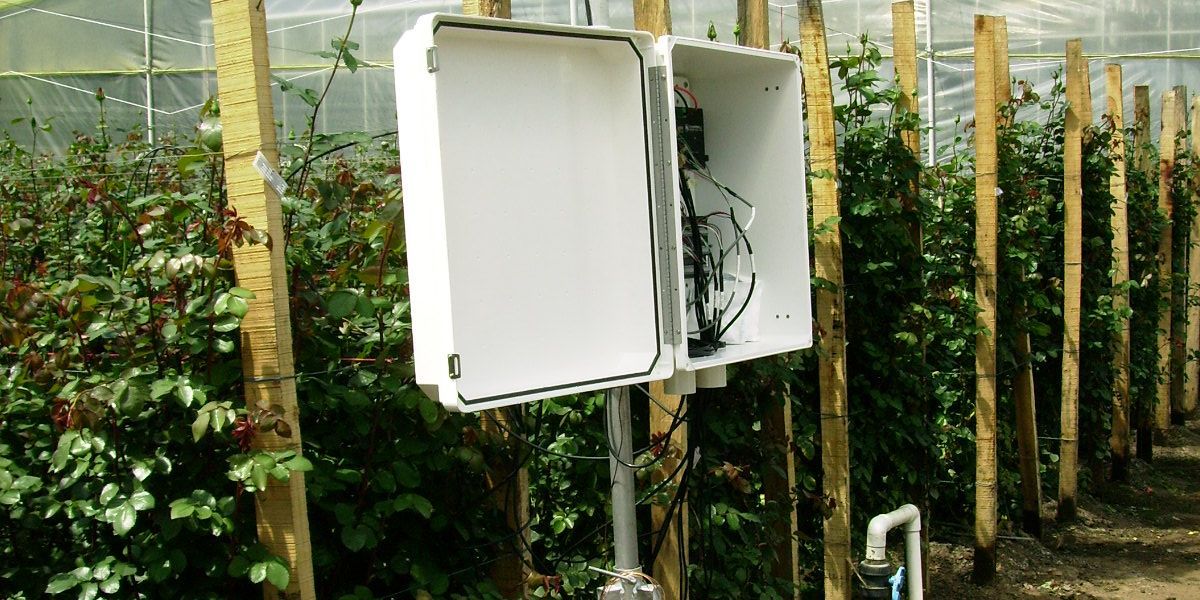

Case Studies
