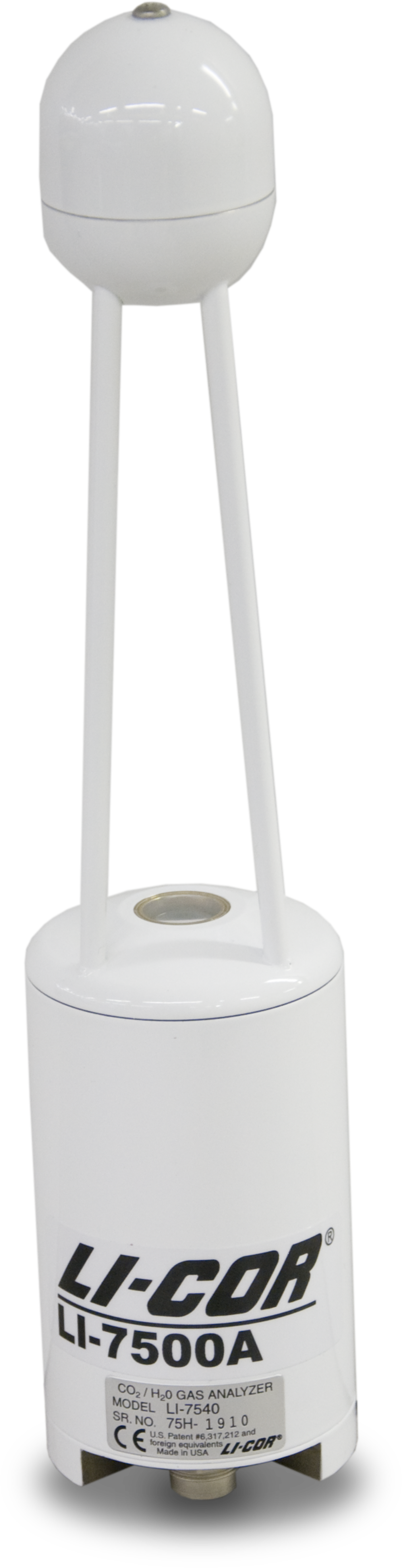

LI7500A
LI7500A
End of lifeConfigurableInfrared Gas Analyzer
Pricing
Pricing temporarily unavailable.
- Model:
- LI7500A
- Item Number:
- 26163
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview
Campbell Scientific's new EC150 Open-Path Gas Analyzer is recommended in place of the retired LI7500A.
The LI7500A is an open-path, nondispersive, infrared gas analyzer (IRGA). It has high speed and high precision, and accurately measures densities of carbon dioxide and water vapor in the air. In an eddy-covariance application, the LI7500A is used in conjunction with Campbell Scientific's CSAT3 sonic anemometer to determine CO2 and H2O fluxes.
Technical Description
The LI7500A is LI-COR's open-path, high-speed, high-precision, nondispersive-infrared gas analyzer (IRGA). It accurately measures the in-situ densities of carbon dioxide and water vapor in turbulent air structures. The LI7500A is typically measured with a CR800, CR850, CR1000, CR3000, or CR5000 datalogger.
In an eddy-covariance application, the LI7500A is used in conjunction with a CSAT3 Sonic Anemometer to determine CO2 and H2O fluxes. The primary components of the LI7500A are the sensor head and the electronics enclosure.
Benefits
- Compatible with CR800, CR850, CR1000, CR3000, CR5000
- Variety of connectors for more data-retrieval options
Specifications
- Type
- Absolute, open-path, nondispersive infrared gas analyzer
- Detector
- Thermoelectrically cooled lead selenide
- Bandwidth
- 5, 10, or 20 Hz, software selectable
- Operating Temperature Range
- -25° to +50°C
- Outputs
- RS-232
(20 Hz maximum)
- Outputs
- SDM
(> 40Hz)
- Power Requirements
- 10.5 to 30 Vdc
- Power Consumption
- 30 W
(during warm-up)
- Power Consumption
- 10 W
(in steady state)
- Path Length
- 12.5 cm
(4.72 in.)
- Head Diameter
- 6.5 cm
(2.6 in.)
- Head Length
- 30 cm
(11.8 in.)
- Control Box Dimensions
- 35 x 30 x 15 cm
(13.8 x 11.8 x 5.9 in.)
- Head Weight
- 0.75 kg
(1.65 lb)
- Control Box and Cables Weight
- 4.4 kg
(10.0 lb)
