LevelVueBCBL
Power and Communications Cable for the LevelVue B10
LevelVueBCBL
OrderableConfigurablePower and Communications Cable for the LevelVue B10
Pricing
Configuration
Sign in for option pricing- w/3m per Sensor -PF w/ Ferrules on WiresLEVELVUEBCBL-3m
- w/5m per Sensor -PF w/ Ferrules on WiresLEVELVUEBCBL-5m
- w/10m per Sensor -PF w/ Ferrules on WiresLEVELVUEBCBL-10m
Select a configuration to add to your quote
- Model:
- LevelVueBCBL
- Item Number:
- 45064
- Lead time:
- 21 days
Overview
LevelVueB10 Power & Communication Cable

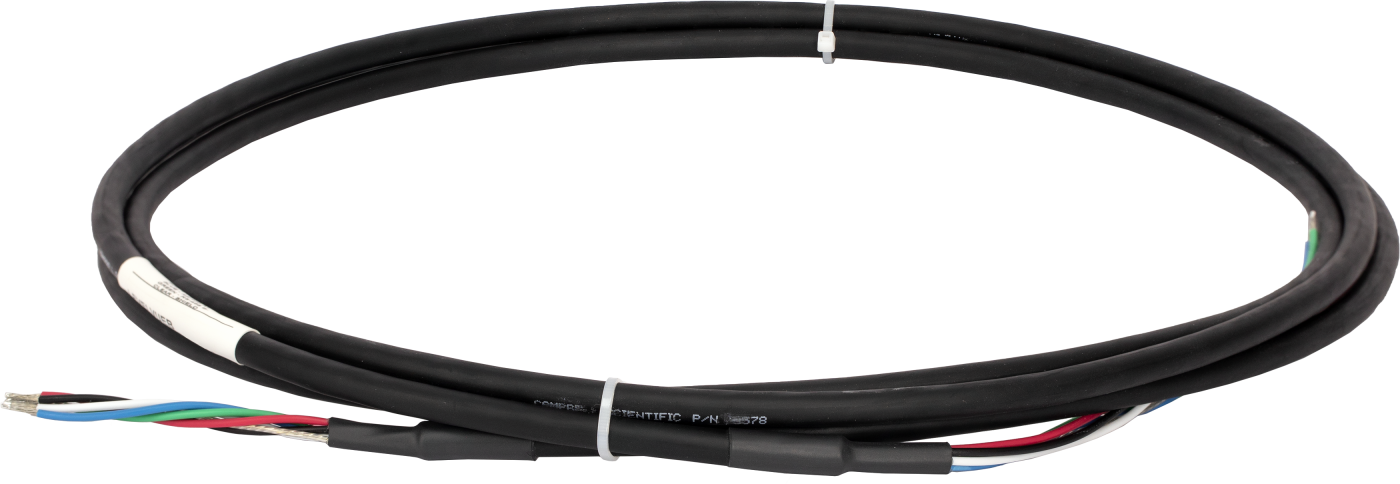

The LevelVue™BCBL is the power and communications cable for the LevelVue™B10 Water-Level Continuous Flow Bubbler. The cable consists of five shielded conductors (18 AWG) insulated in polypropylene with a drain wire. The cable jacket is made from black UV-resistant Thermoplastic Rubber (TPR). The cable terminates with 10.2 cm (4 in.) stripped and tinned wires on one end and 20.3 cm (8 in.) stripped and tinned wires on the other end.
Specifications
- Cable Jacket Material
- Santoprene
- Wire Gauge
- 18 AWG
(16/30)
- Number of Conductors
- 5
- Shield Material
- Aluminum Mylar
- Conductor Insulation Colors
- Red, black, white, green, blue
- Temperature Range
- -55° to +125°C
