ICEFREE3A
Anemometer
ICEFREE3A
RetiredAnemometer
Pricing
- Model:
- ICEFREE3A
- Item Number:
- 28047
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview
SENSOR WIND SPEED NRG ICEFREE3A, 26Ft (8M)

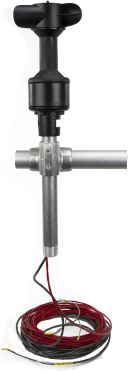

The ICEFREE3A anemometer is an electrically heated wind-speed sensor, designed for ice-prone sites. The sensor provides an electrical output signal with frequency directly proportional to wind speed.
The ICEFREE3A is manufactured by Renewable NRG Systems and has an 8 m (26 ft) cable.
Technical Description
The ICEFREE3A monitors wind speed using a three-cup anemometer. Rotation of the cup wheel produces a sine-wave that is directly proportional to wind speed. The frequency of the sine wave is measured by the data logger pulse count channel, then converted to engineering units (mph, m s-1, knots).
Wiring Information
Gray Cable
- Clear - Signal
- Black - Reference
- Shield - Shield
Red Cable
- Black - Heater
- White - Heater
Specifications
- Sensor
- 3-cup anemometer
- Measurement Description
- Wind speed
- Range
- 0 to 90 m s-1
(0 to 200 mph)
- Sensor to Sensor Variation
- 99.7% of sensors fall within 4.3% of stated transfer function
(based on over 800 samples)
- Distance Constant
- 7.6 m
(25 ft) for 63% recovery
- Sensor Output Signal Range
- 0 to 155 Hz
- Operating Temperature Range
- -40° to +60°C
- Operating Humidity Range
- 0 to 100% RH
- Supply Voltage
- 24 V ac/dc
- Supply Current Inrush
- 8 A
(maximum)
- Supply Current Steady State
- 1 A at 20°C, 4 A under maximum thermal load
(head frozen in clear ice then powered on)
- Body Diameter
- 7.0 cm
(2.75 in.)
- Swept Diameter of Rotor
- 12.7 cm
(5 in.)
- Cable Length
- 8 m
(26 ft)
- Overall Assembly Height
- 22.4 cm
(8.82 in.)
- Weight
- 1.45 kg
(3.2 lb)
