HYDRO-WIPER-D
OBS-3+ 12 Vdc Datalogger-Controlled Mechanical Wiper
HYDRO-WIPER-D
RetiredOBS-3+ 12 Vdc Datalogger-Controlled Mechanical Wiper
Pricing
- Model:
- HYDRO-WIPER-D
- Item Number:
- 20924
- Warranty:
- 1 year
- Lead time:
- 7 days
Overview

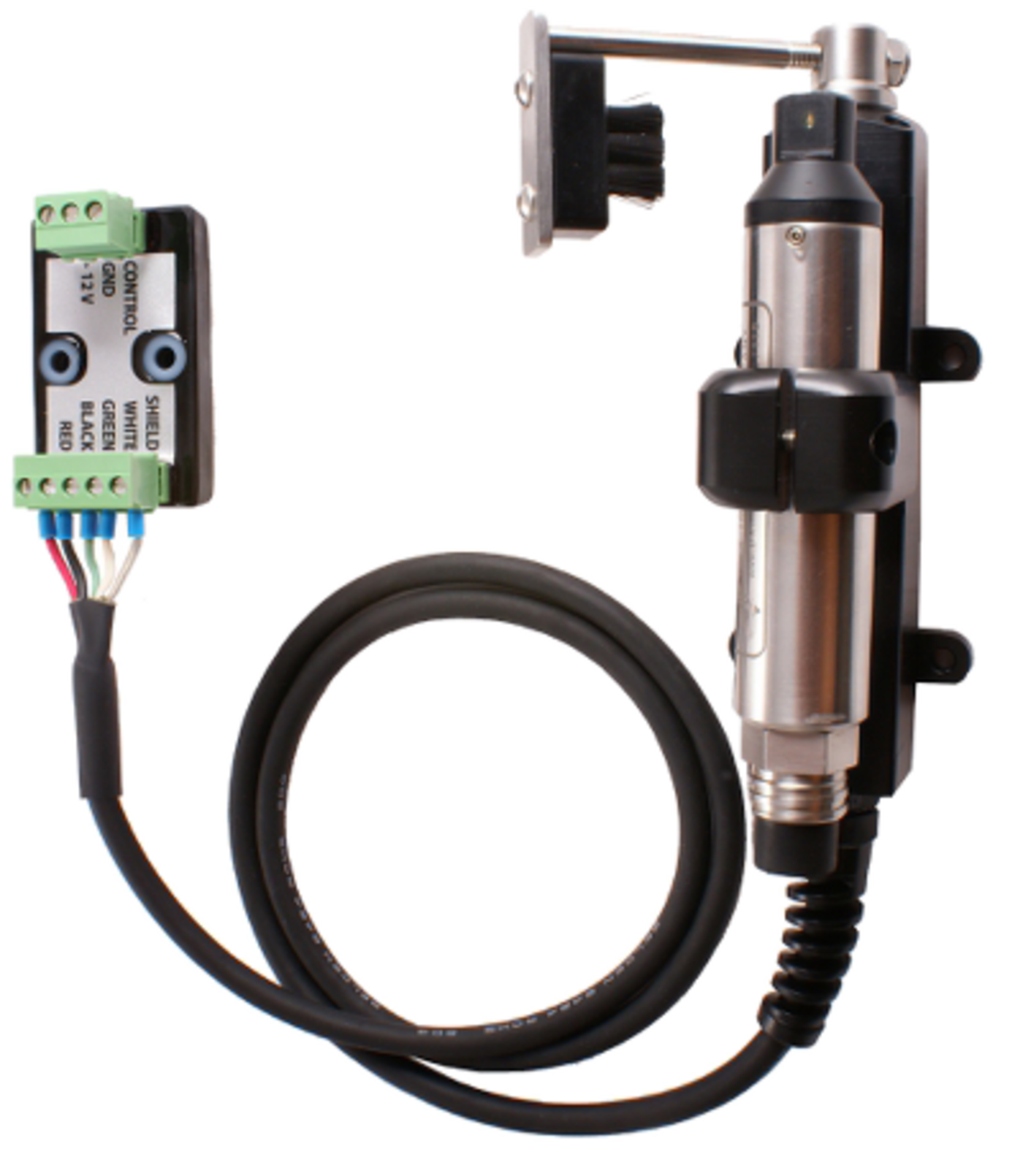

HYDRO-WIPER-D OBS-3+ 12Vdc Datalogger Controlled, Mechanical Wiper, 5m (16ft) Cable
The HYDRO-WIPER-D is a common accessory for the OBS-3+ Turbidity sensor. This data-logger-controlled wiper can be activated to remove algae and other fouling before each measurement. The HYDRO-WIPER-D uses the data logger's power supply and has a 5 m (16 ft) cable.
Specifications
- Control Input
- The wiper control module has an internal 10 k pull-down resistor.
The control line needs to be set high to +5 volts for a minimum of 10 ms to initiate a wipe.
- Power Supply
- 8 to 15 Vdc
- Power Consumption
- 0.05 mA
(between wipes)
- Power Consumption
- Typically 90 mA during a wipe.
If the wiper arm is jammed, power consumption can momentarily rise to about 500 mA.
- Construction
- Stainless steel, acetal
- Wiper Shaft
- Multiple bearing support with quad ring seal
- Cable
- EPDM jacketed cable
- Depth Rating
- 30 m
(98.425 ft)
- Cable Length
- 5 m
(16 ft)
- Weight
- 943.47 g
(2.08 lb)
