HUB-SDM8
8-Channel Hub for SDM Peripherals and Power Connections
HUB-SDM8
Orderable8-Channel Hub for SDM Peripherals and Power Connections
Overview

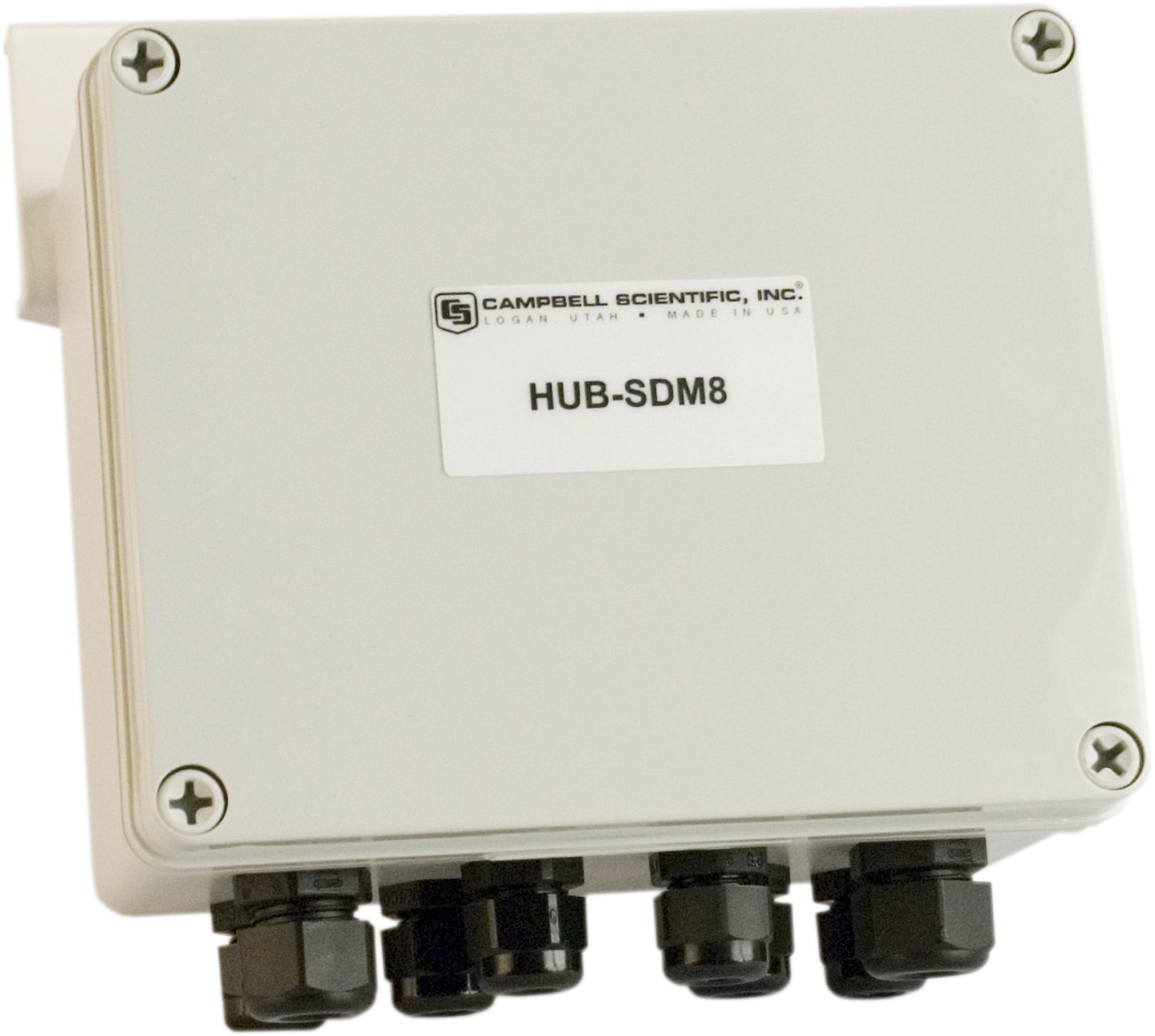

HUB-SDM8 8-Channel Hub for SDM Peripherals & Power Connections
The HUB-SDM8 is intended for customers who want to connect up to five external SDMs to the same data logger, as well as run multiple power connections using 16 AWG wire. The HUB-SDM8 comprises an environmental enclosure with eight compression fittings (two larger) and eight terminal strips.
Key Advantages
Weather-Tight
Ideal for the SDM and power cable extensions
Ideal for the SDM and power cable extensions
Benefits
- Spring-loaded guillotine terminals for easy wire connection
- Compression fittings for cable entry that provide a more water-tight seal
Specifications
- Compression Fittings
- 8
- Terminal Strips
- 3 spring-loaded guillotine connections per terminal
(Two terminals in common through a jumper create 8 banks.)
- Dimensions
- 17.78 x 20.32 x 12.7 cm
(7 x 8 x 5 in.)
- Weight
- 884.5 g
(1.95 lb)
Cabling
- Data Logger to HUB-SDM8
- CABLE5CBL-L connects the HUB-SDM5 to 12V, Ground, and control ports of the data logger.
- HUB-SDM8 to Individual SDM Devices
- For each SDM, one CABLE5CBL-L cable connects the HUB-SDM8 terminal to 12V, Ground, and control ports.
