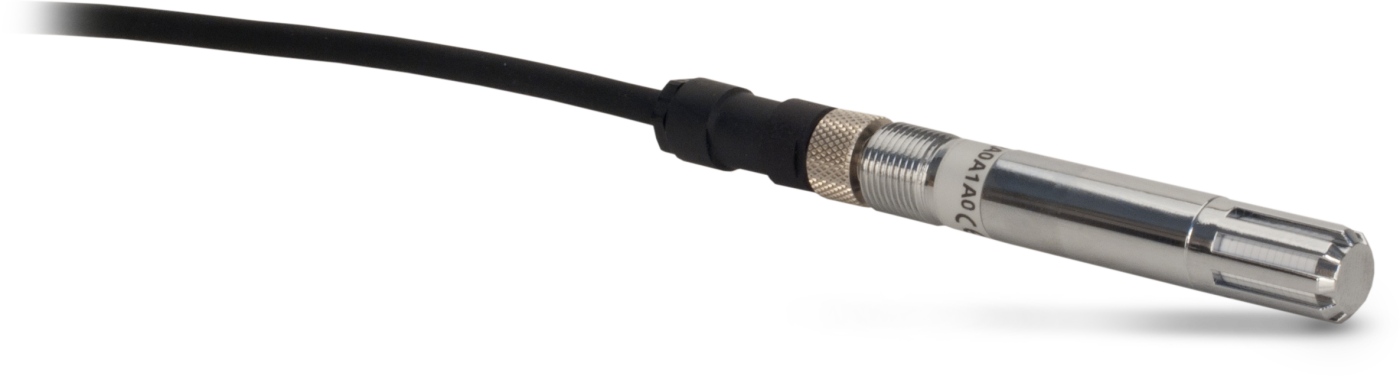

HMP60
HMP60
OrderableConfigurableAir Temperature and Relative Humidity Sensor
Pricing
- Model:
- HMP60
- Item Number:
- 26996
- Warranty:
- 1 year
- Lead time:
- 14 days
- Compliance:
- requires solar radiation shield for air temp
Overview
The HMP60, manufactured by Vaisala, probe measures air temperature for the range of -40° to +60°C, and relative humidity for the range of 0 to 100% RH. It uses the INTERCAP® capacitive RH chip. This field-replaceable chip eliminates the downtime typically required for the recalibration process.
Key Advantages
Ideal for long-term, unattended applications
Benefits
- Field-replaceable humidity chip eliminates recalibration downtime
- Compatible with most Campbell Scientific dataloggers
- Can be mounted to a tower/tripod mast or crossarm
Specifications
- Supply Voltage
- 5 to 28 Vdc
(typically powered by datalogger’s 12 V supply)
- Current Consumption
- 1 mA
(typical)
- Current Consumption
- 5 mA
(maximum)
- Filter Description
- 0.2 µm Teflon membrane
- Settling Time
- 1 s
- Housing Classification
- IP65
- Housing Material
- AISI 316 stainless steel
- Filter Cap Material
- Chrome-coated ABS plastic
- Field-Replaceable Chip or Recalibrate
- Field-replaceable chip
(RH only)
- Sensor Diameter
- 1.2 cm
(0.5 in.)
- Filter Diameter
- 1.2 cm
(0.5 in.)
- Length
- 7.1 cm
(2.8 in.)
- Weight
- 0.05 kg
(0.1 lb) with 1.83 m (6 ft) cable
Relative Humidity
- Sensing Element
- Vaisala’s INTERCAP capacitive chip
- Measurement Range
- 0 to 100% RH
(non-condensing)
- Typical Accuracy at -40° to 0°C
- ±5%
(0 to 90% RH)
- Typical Accuracy at 0° to 40°C
- ±3%
(0 to 90% RH)
- Typical Accuracy at 40° to 60°C
- ±5%
(0 to 90% RH)
- Typical Accuracy at -40° to 0°C
- ±7%
(90 to 100% RH)
- Typical Accuracy at 0° to 40°C
- ±5%
(90 to 100% RH)
- Typical Accuracy at 40° to 60°C
- ±7%
(90 to 100% RH)
- Output Signal Range
- 0 to 1 Vdc
Air Temperature
- Sensing Element
- 1000 ohm Platinum Resistance Thermometer (PRT)
- Measurement Range
- -40° to +60°C
- Accuracy
- ±0.6°C
- Output Signal Range
- 0 to 1 Vdc
Accessories
(6)RAD06
6-Plate Solar Radiation Shield
Orderable41303-5A
6-Plate Solar Radiation Shield
OrderableTS100SS
Aspirated Radiation Shield
OrderableRAD10
10-Plate Solar Radiation Shield for Small Sensors
Orderable41003-5
10-Plate Solar Radiation Shield
Orderable39124
DIN Rail Terminal Kit with 2 Terminals and 5 Wires
Orderable
