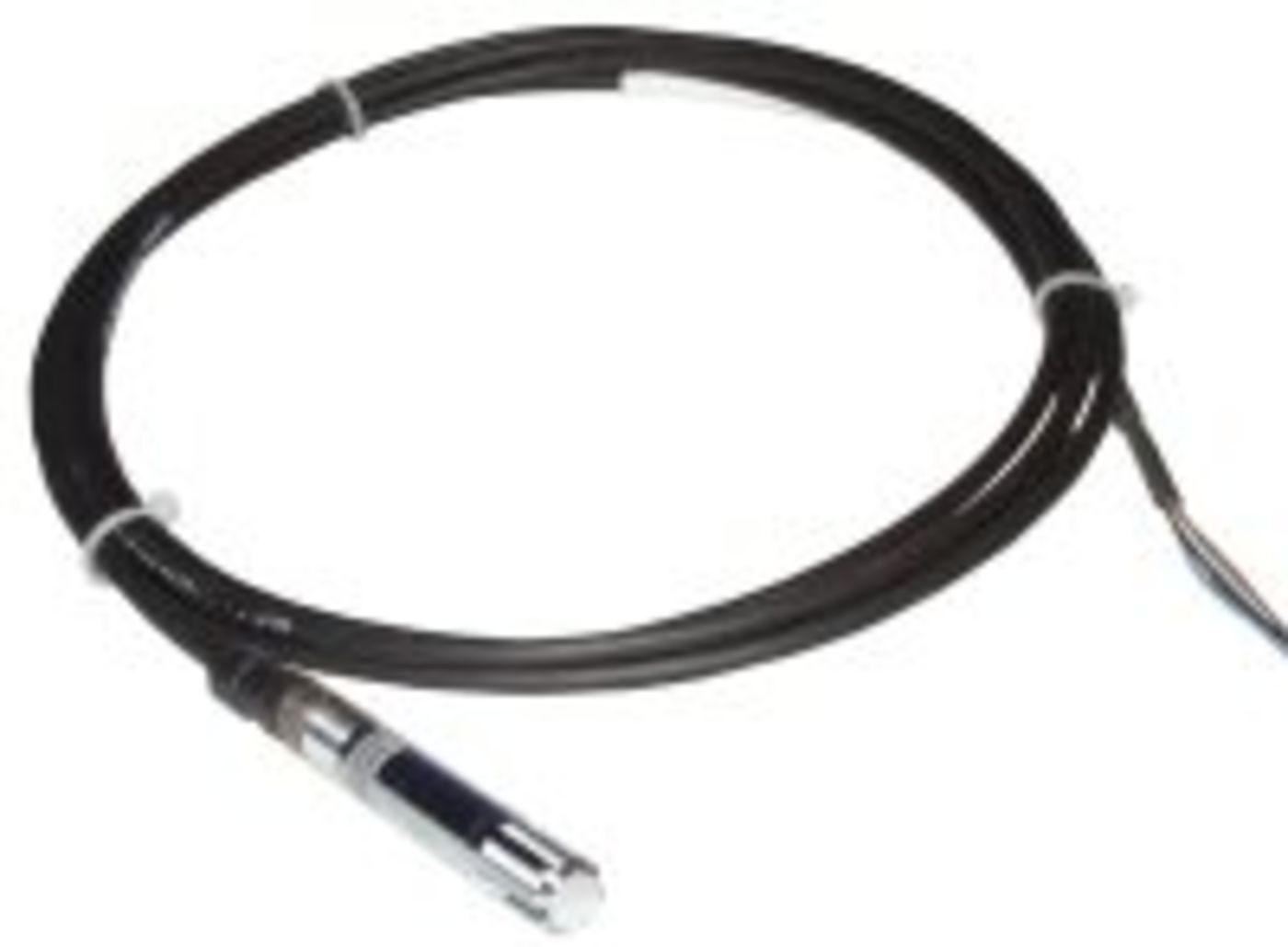

HMP50-L
HMP50-L
End of lifeConfigurableTemperature and Relative Humidity Sensor
Pricing
- Model:
- HMP50-L
- Item Number:
- HMP50-L
- Warranty:
- 1 year
- Lead time:
- 21 days
- Compliance:
- requires 41303-5A radiation shield
Overview
The HMP50 measures both temperature and relative humidity and is suitable for long-term, unattended monitoring. The humidity component features a field-replaceable chip, which eliminates downtime typically required for the recalibration process. The HMP50 is compatible with all Campbell Scientific data loggers.
Technical Description
The HMP50 measures temperature with a 1000 Ohm platinum resistance thermometer (PRT) and relative humidity (RH) with a 50Y Intercap capacitive chip. The chip is field-replaceable, which eliminates the downtime typically required for the recalibration process. This temperature and RH sensor is compatible with all Campbell Scientific data loggers.
The HMP50 should be housed in a solar radiation shield—typically the 41303-5A. The 41303-5A 6-plate naturally aspirated shield attaches to a mast, crossarm, or tower leg.
Benefits
- Field-replaceable humidity chip eliminates recalibration down time
- Can be mounted to a tower/tripod mast or crossarm
Specifications
- Supply Voltage
- 7 to 28 Vdc
(typically powered by data logger’s 12 V supply)
- Current Consumption
- 2 mA
(typical)
- Housing Material
- Chrome-coated aluminum and chrome-coated ABS plastic
- Operating Temperature Range
- -40° to +60°C
- Diameter
- 1.2 cm
(0.47 in.)
- Length
- 7.1 cm
(2.8 in.)
- Weight
- 0.05 kg (0.1 lb) with 1.83-m (6-ft) cable
Relative Humidity
- Sensor
- Vaisala’s INTERCAP capacitive chip
- Measurement Range
- 0 to 98% RH
(non-condensing)
- Accuracy
- ±3%
(0% to 90% range)
- Accuracy
- ±5%
(90% to 98% range)
- Temperature Dependence
- See graph in product brochure.
Temperature
- Temperature Sensor
- 1000 ohm Platinum Resistance Thermometer
- Measurement Range
- -40° to +60°C
- Accuracy
- See graph in product brochure.
