41005-5
14-Plate Solar Radiation Shield for the HMP155A
41005-5
Orderable14-Plate Solar Radiation Shield for the HMP155A
Overview

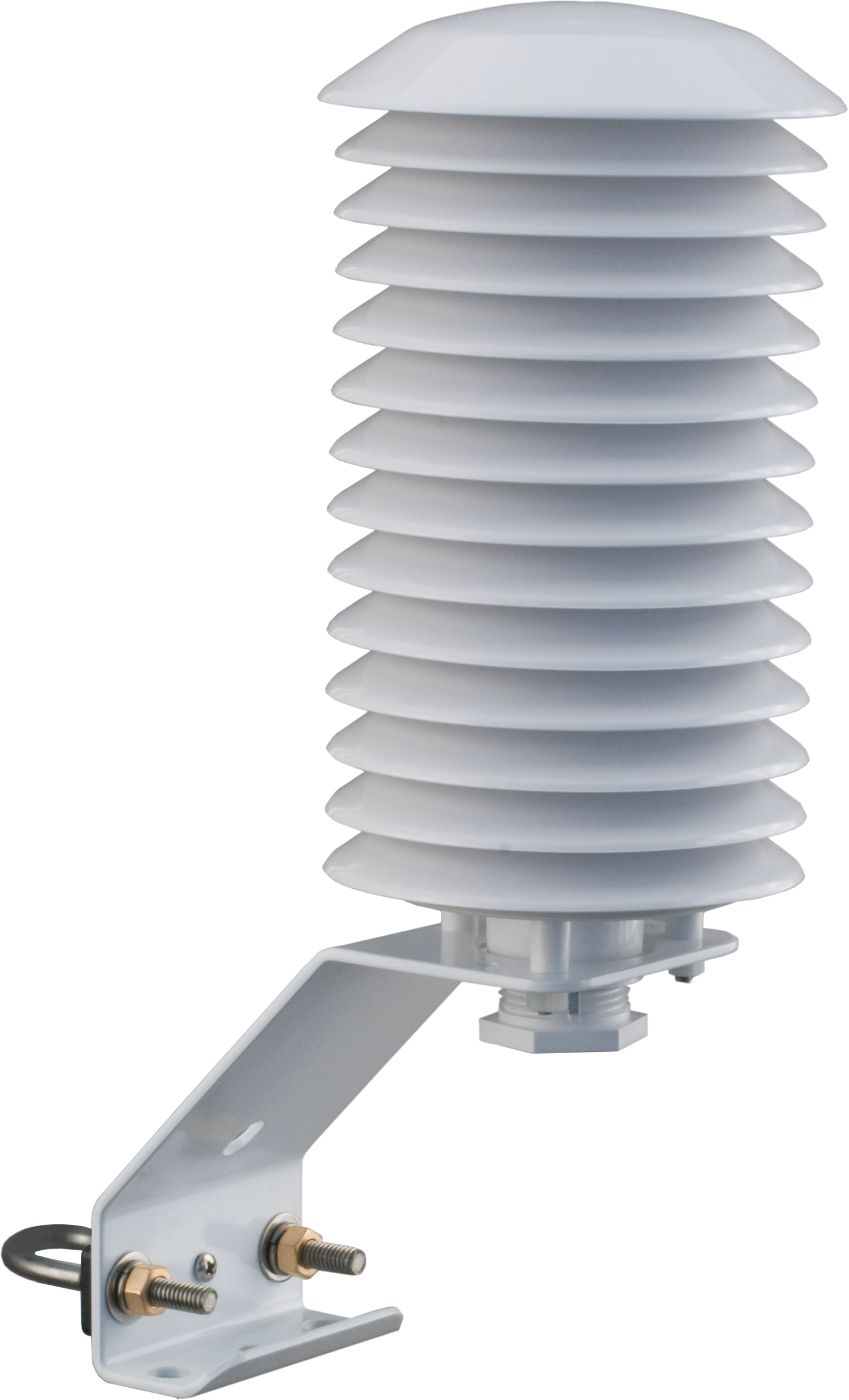

41005-5 RM Young 14-Plate Solar Radiation Shield for HMP155A
The 41005-5, manufactured by R. M. Young, houses and protects the HMP155A temperature and RH probe. Its louvered construction allows air to pass freely through the shield, thereby keeping the probe at or near ambient temperature. The 41005-5 is white, allowing it to reflect solar radiation. This shield includes the hex nut adapter for the HMP155A.
Key Advantages
Provides More-Accurate Measurements
Shades and protects sensor
Shades and protects sensor
Benefits
- Naturally shades and protects the sensor
Specifications
- Construction
- UV-stabilized white thermoplastic plates, aluminum mounting bracket, white powder-coated stainless-steel U-bolt clamp
- Plate Diameter
- 11.9 cm
(4.7 in.)
- Dimensions
- 35.56 x 27.31 x 13.97 cm
(14.0 x 10.75 x 5.5 in.)
- Weight
- 975.22 g
(2.15 lb)
