eosFD

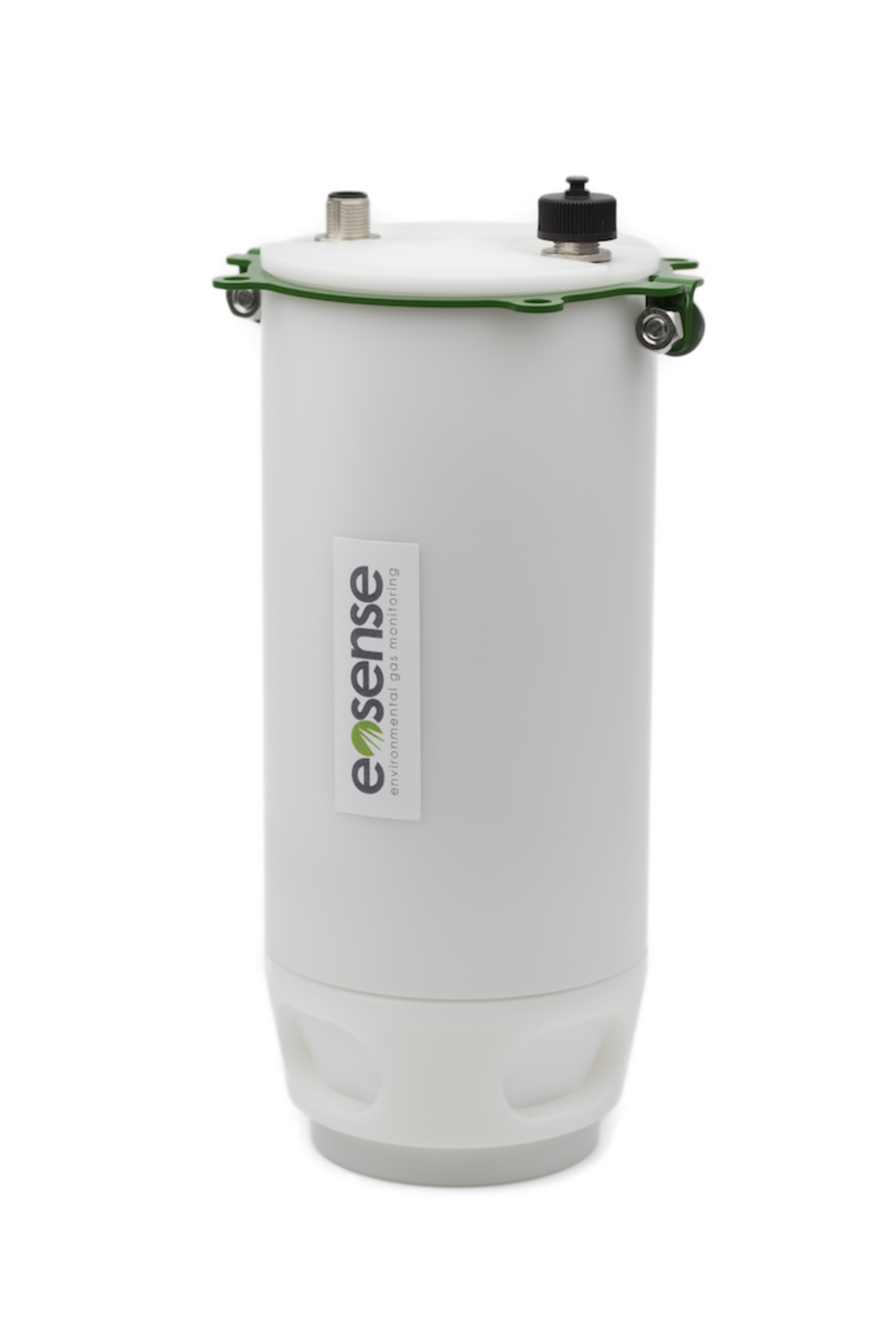

The eosFD, manufactured by Eosense, uses the patented Forced Diffusion (FD) technology to measure soil CO₂ flux directly using an NDIR sensor and small internal diaphragm pump. It features onboard data logging capabilities that enable it to be a stand-alone sensor; however, it can also deliver analog or serial data to Campbell Scientific data loggers. This sensor compliments a Campbell Scientific eddy-covariance system. The included eosLink software enables you to connect, configure, and collect data directly from the sensor.

The eosFD is a stand-alone soil CO₂ flux sensor containing a single NDIR sensor, an internal data logger, and a small diaphragm pump. The eosFD uses Eosense’s patented Forced Diffusion technology to measure soil CO₂ flux directly.

Traditionally, gas fluxes from the soil surface are measured using closed chambers systems, with these “accumulation chambers” trapping gas during the measurement period. Forced Diffusion is a membrane-based steady-state approach for measuring gas flux that establishes an equilibrium between gas flowing into the chamber and gas flowing out of the chamber through the membrane, without any external chamber movement.

By carefully characterizing the diffusive properties of the membrane used in the instruments, the eosFD chamber gas concentration can be correlated directly to the gas flux rate. Essentially, the amount by which this membrane limits the flow of gas out of the chamber is known, and thus, by comparing the internal concentration to that outside the instrument, the flux rate can be calculated. Unlike other automated chambers that lift and lower onto the soil surface, the Forced Diffusion approach does not require external moving parts, allowing it to be deployed in the harshest climates for extended periods without intervention.
