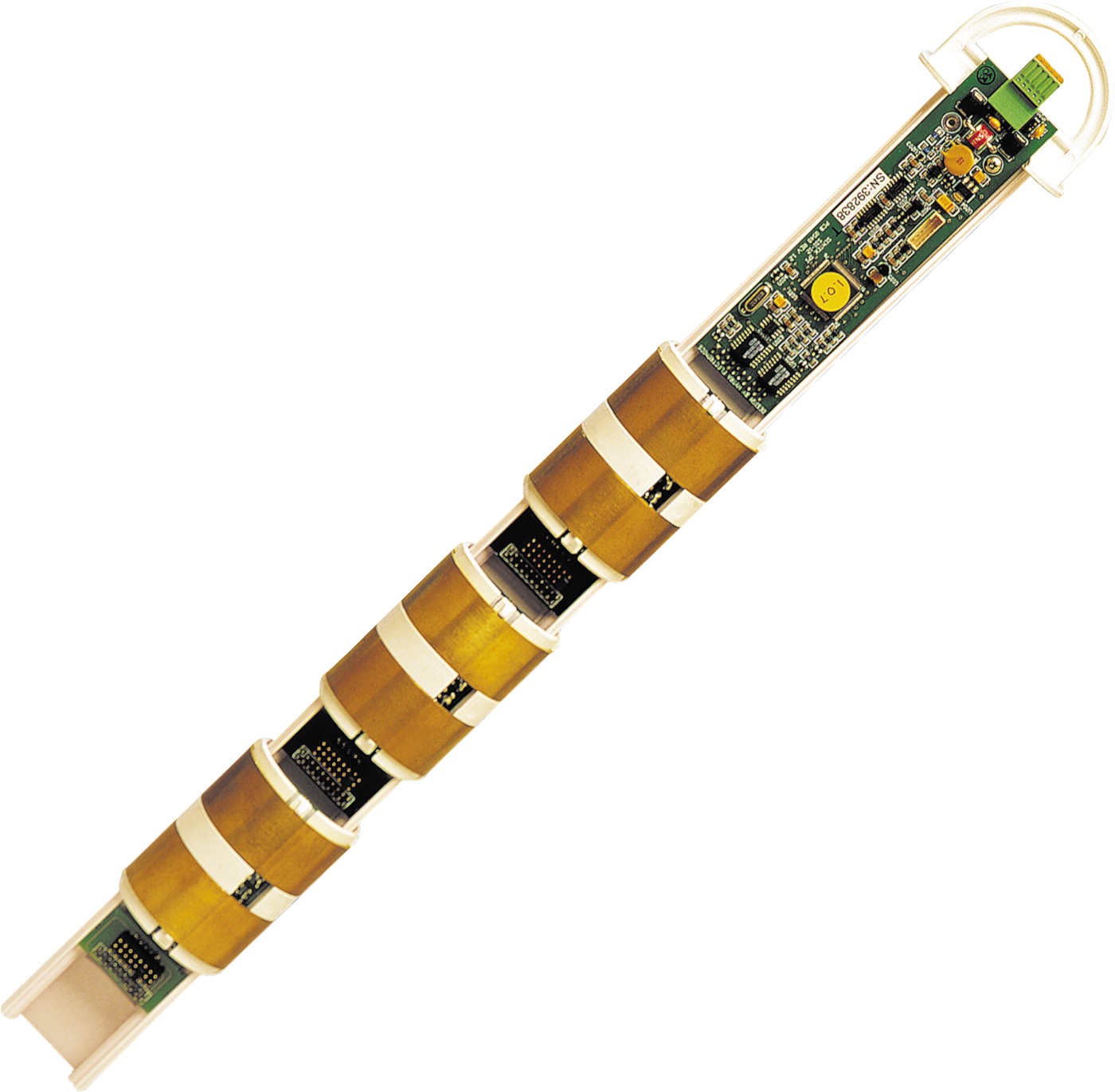

ENVIROSCAN
ENVIROSCAN
End of lifeConfigurableWater-Content-Profile Probe with SDI-12 Interface
Pricing
- Model:
- ENVIROSCAN
- Item Number:
- 16082
- Warranty:
- 2 years
- Lead time:
- 14 days
Overview
The EnviroSCAN probe provides soil-water-content profiles for irrigation scheduling or other water movement systems. The measurement range is oven dry to saturation. The probes measure soil moisture at multiple depths and are easy to install. Tools offered by Campbell Scientific allow the probes to be installed with minimal soil disturbance. EnviroSCAN is recommended for higher accuracy research measurements, measurements deeper than 80 cm, or stony soils. It is customizable by adding sensors at user-specified depths.
Key Advantages
Water content profile with minimal soil disturbance
Technical Description
The EnviroSMART probe has been renamed EnviroSCAN.
The EnviroSCAN includes several water content sensors that measure soil water at multiple depths. Around each sensor, the probe creates a high frequency electrical field that extends through the access tube into the soil. Electrical capacitance is then measured and soil water content is determined from those measurements.
Each water content sensor outputs an SDI-12 signal that our CR200(X)-series, CR800, CR850, CR1000, and CR3000 dataloggers can measure. This allows the probes to be integrated with a Campbell Scientific data logger or weather station. Integrating the probes into our data acquisition systems allows the data to be telemetered back to a field station or remote computer.
EnviroSCAN is customized for individual applications by adding sensors at user-specified measurement depths. The maximum measurement depth of the standard configuration is 2 m (6 ft); deeper measurements are possible with special provisions.
Specifications
- Maximum Sensors per Standard Probe
- 16
- Sensor Measuring Principle
- High-frequency capacitance
- Output
- SDI-12 version 1.2
- Total Current Consumption (per sensor)
- 250 µA
(sleep)
- Total Current Consumption (per sensor)
- 66 mA
(standby)
- Total Current Consumption (per sensor)
- 100 mA
(sampling)
- TriSCAN Current Consumption
- 130 mA
(sampling)
- Water Content Reading Range
- 0 to ~65%
- Temperature Effects
- ±3%
(5° to 35°C)
- Time to Read 1 Sensor
- 1.1 s
- Sphere of Influence
- 99% of the reading is taken within a 10 cm radius from the outside of the access tube.
- Operating Temperature Range
- -20° to +75°C
- Sensor Diameter
- 5.05 cm
(2.0 in.)
- Access Tube Diameter
- 5.65 cm
(2.2 in.)
- Probe Length
- 0.5, 1.0, 1.5, or 2.0 m
(1.6, 3.3, 4.9, or 6.6 ft)
Accessories
(6)SENSDI12CBL
Datalogger to SDI-12 Interface Cable
RetiredSENVOLTCBL-L
Datalogger to Voltage Interface Cable
End of lifeSEN70060
EnviroSCAN and EasyAG Installation Kit Part C (Normalization Container)
RetiredSEN80125
25 g Bag of Silica Gel (quantity of 10) for EnviroSCAN Installation
RetiredSEN06021
Programming Cable for an EnviroSCAN or EasyAG Probe
RetiredSEN80127
Ferrite Bead for EnviroSCAN and EasyAG Installation
Retired
