ENC14/16

Weather-Resistant Enclosure, 14 x 16 inches
Automated

ENC14/16

OrderableConfigurable

Weather-Resistant Enclosure, 14 x 16 inches

Pricing

Pricing temporarily unavailable.

Configuration

Select a configuration to add to your quote

Model:
ENC14/16
Item Number:
45228
Warranty:
1 year
Lead time:
14 days

Overview

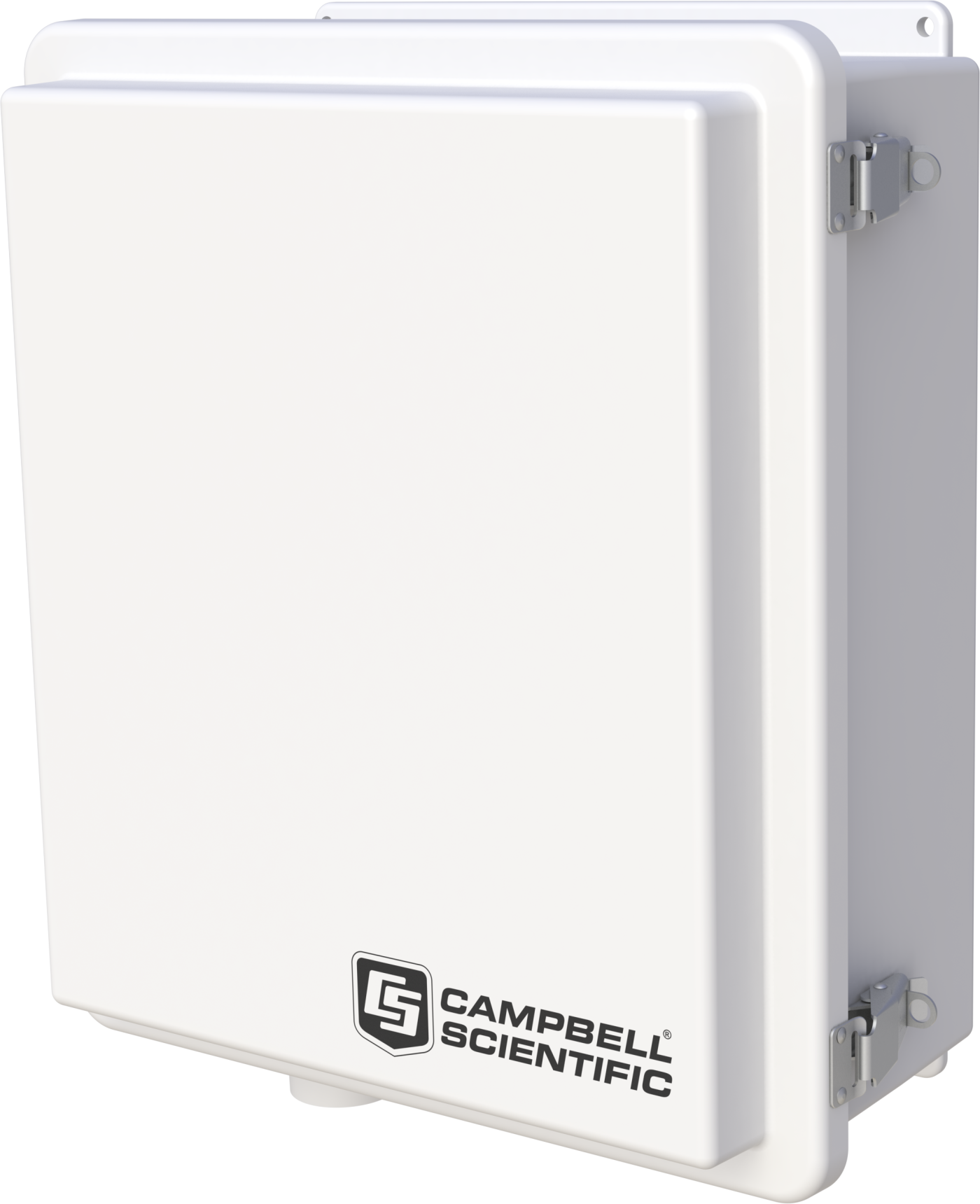

Weather-Resistant 14 x 16 Inch Enclosure

The ENC14/16 is a weather-resistant enclosure that is 14 in. wide and 16 in. tall. This medium-large enclosure can house a data logger, a power supply, and one or more peripheral—depending on the size of the peripherals. A common use for the ENC14/16 is to mount a larger enclosure to the leg base of a CM110, CM115, or CM120 tripod, because the larger ENC16/18 cannot be mounted to the leg base of these tripods.

Please note that a grounding wire is not included with the enclosure.

Key Advantages

Rugged, Versatile
Campbell components mount easily and securely

Technical Description

The ENC14/16's backplate is prepunched with half-inch-on-center holes suitable for attaching a data logger, power supply, and a communications or measurement and control peripheral.

This enclosure is shipped with the 7363 enclosure supply kit that consists of desiccant, a humidity indicator card, cable ties, wire tie tabs, putty, grommets, screws, and PVC coupling. Additionally, Campbell Scientific offers a CS210 Enclosure Humidity Sensor for monitoring relative humidity inside of the enclosure. (See Ordering Info on the web page.)

Benefits

  • Weather resistant to protect instruments
  • Backplate designed so that Campbell Scientific components mount easily and securely
  • White, UV-stabilized enclosure reflects solar radiation—reducing temperature gradients inside the enclosure without requiring a separate radiation shield

Specifications

Color
White

(Reflects solar radiation, reducing temperature gradients inside the enclosure without requiring a separate radiation shield.)

Construction
Fiberglass-reinforced polyester enclosure with door gasket, external grounding lug, stainless-steel hinge, and lockable hasps
Enclosure Classification
NEMA 4X

(before being modified for cable entry)

Number of Cable-Entry Seals
2 large, 2 medium, 2 small
Dimensions
40.6 x 35.6 x 14 cm

(16 x 14 x 5.5 in.) internal

Dimensions
38.63 x 33.66 x 17.6 cm

(15.21 x 13.25 x 6.93 in.) internal under the lid space

Dimensions
44.27 x 39.19 x 19.58 cm

(17.43 x 15.43 x 7.71 in.) external

Weight
6 kg

(13 lb)
