DC1765
Cellular Phone Package
DC1765
End of lifeCellular Phone Package
Pricing
- Model:
- DC1765
- Item Number:
- DC1765
- Lead time:
- 21 days
Overview

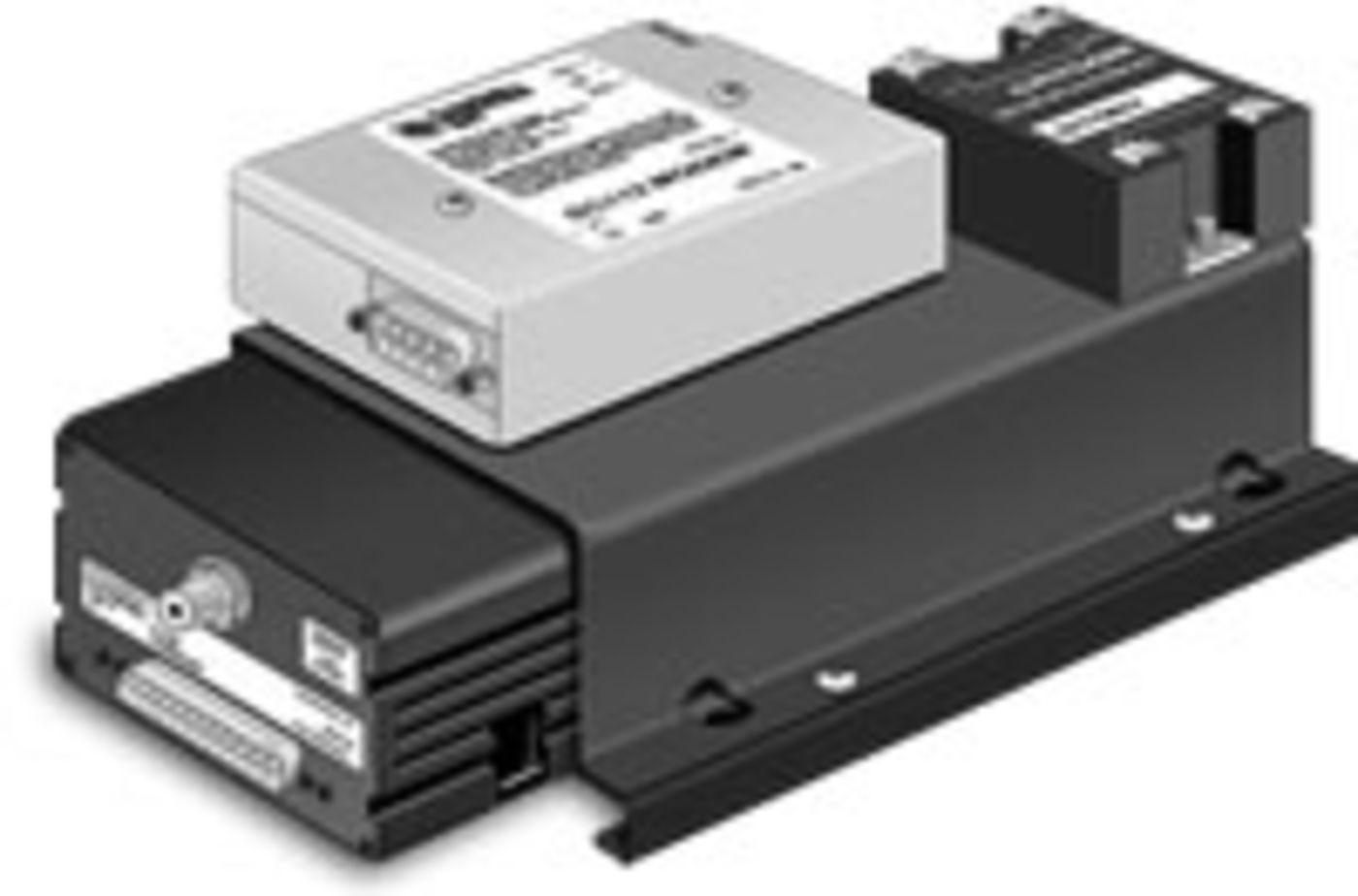

The DC1765 cellular package included a Motorola S1765 cellular connection 3-watt transceiver, RJ11C cable, DC112 Modem, SC12 cable, relay, and mounting bracket for enclosure backplate. A computer equipped with the PC208 Datalogger Support Software and a Hayes compatible phone modem connected to a standard phone line was used to call the cellular equipped stations.
Specifications
S1765 Transceiver
- Operating Temperature
- -30° to +60°C
- Average Current Drain
- 0.38 A
(standby)
- Average Current Drain
- 2.1 A
(online)
- Supply Voltage
- 10.9 to 16.3 Vdc
- Antenna Termination
- Mono UHF
Control Relay Crydom D07
- Control Voltage
- 3.2 to 32 Vdc
- Control Current
- < 1.6 mA
(@ 5 Vdc)
- Output Rating
- 7 A
(@ 100 Vdc)
