CSP100
Concentrated-Solar-Power Monitoring Package
CSP100
RetiredConcentrated-Solar-Power Monitoring Package
Pricing
- Model:
- CSP100
- Item Number:
- CSP100
- Lead time:
- 21 days
Overview

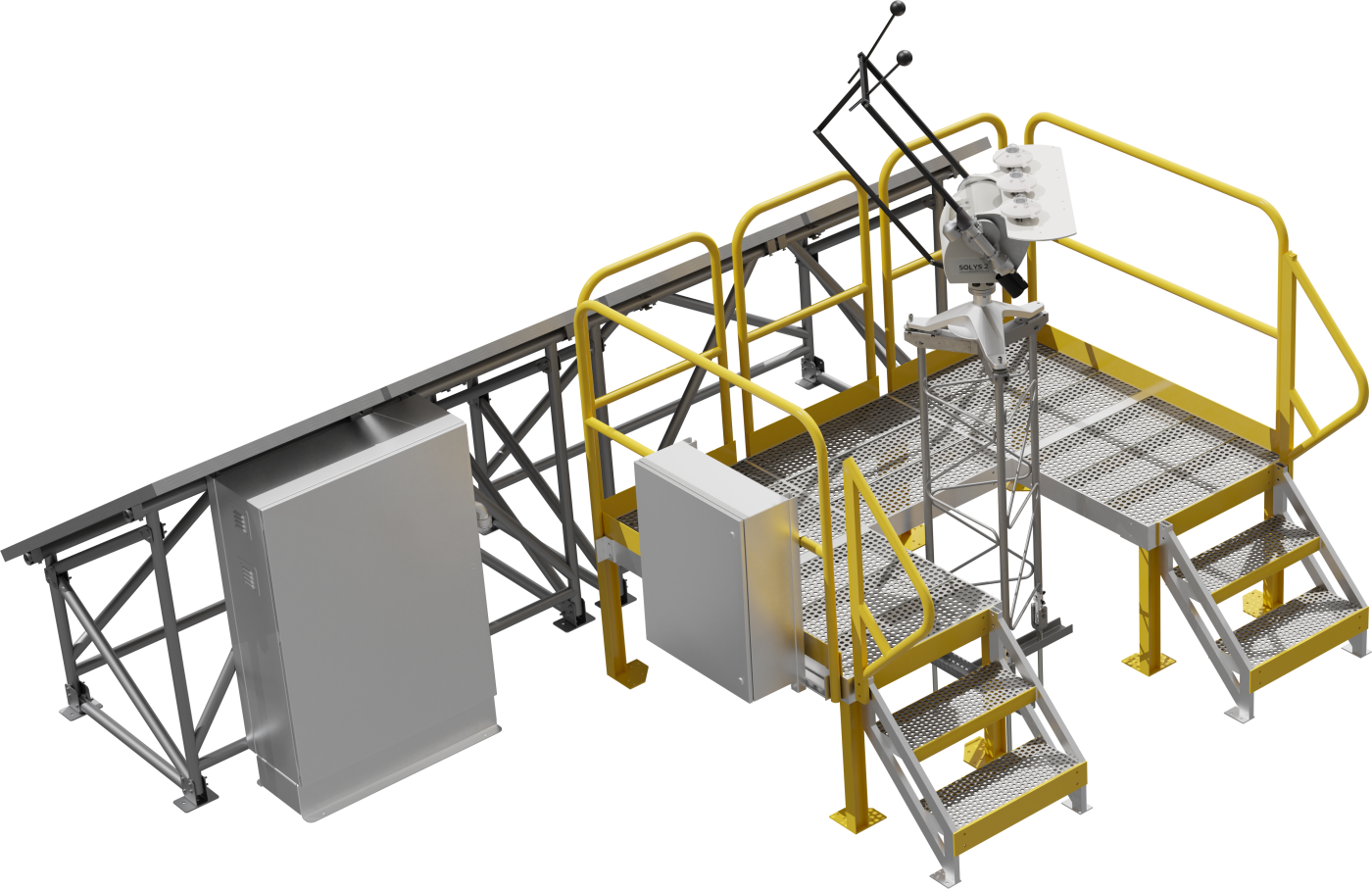

The CSP100 is a turn-key automated data-acquisition system specifically designed to meet CAISO meteorological station requirements of concentrated-solar-power generating facilities. It is recommended for assessing power-plant performance, which requires the best possible solar resource measurements.
The CSP100 is field-ready, with features to minimize installation time and field wiring errors. Though offered as a turn-key package, nearly every aspect of the system is customizable, including sensors, communications, mounting, and power supply.
Key Advantages
High Accuracy Monitoring with 2-Axis Sun Tracker
Benefits
- Contains a Campbell Scientific CR1000 Measurement and Control Datalogger
- Provides the lowest uncertainty of the GH, DNI, and DIFF solar radiation measurements
- Fast to field with industry-proven, high-accuracy sensors
- Factory fabrication, programming, and testing minimizes field wiring errors and reduces deployment time
- Meets CAISO required meteorological data points
- Approved California ISO Remote Intelligent Gateway (RIG) for secure encrypted information transmission to CAISO
- Complies with Modbus, DNP3, CANbus, and PakBus protocols
- Supports nearly all communication technologies such as RS-485, fiber, TCP/IP, cellular, or satellite
- Reference design: “Solar Resource and Meteorological Project (SOLRMAP)”, NREL
- Provides a modular, programmable, and customizable system
- Provides a battery back system that allows data collection during power outages and network failure
- Acts as single point data gateway for environmental, inverter, and meter data
- Supports TCP/IP functionality, including: HTTP Get, HTTP Post, FTP server and client, TelNet server, PING, Micro serial server, DHCP client, DNS client, email send and receive
- Supports Web Service API
- Supports individual module and string level power measurements
- Shipped with a quick-deploy installation guide and system schematics
