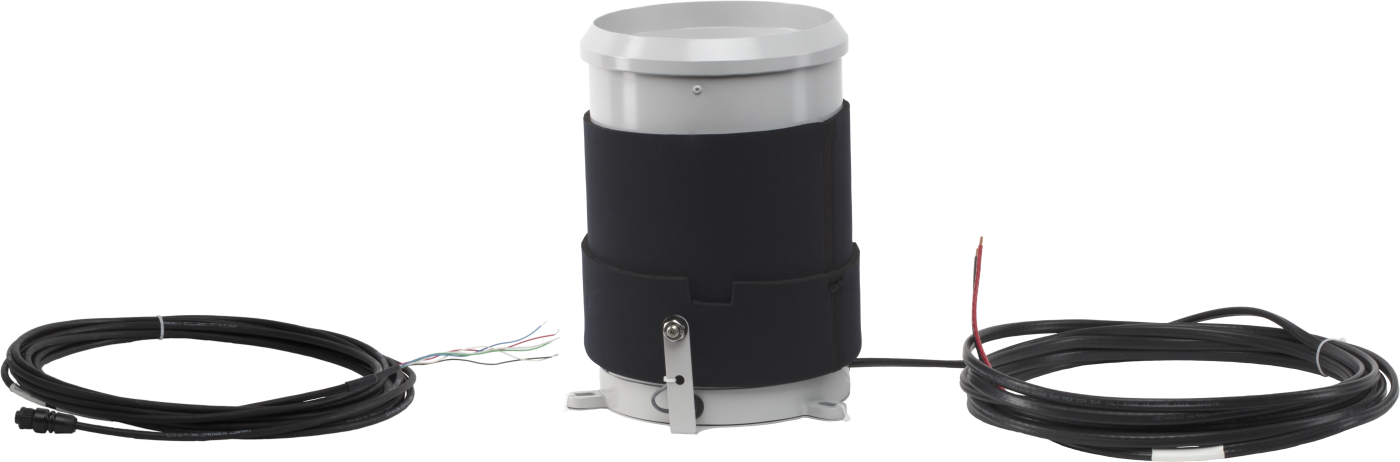

CS700H
CS700H
OrderableConfigurableHeated Rain Gage
Highest accuracy with a heater.
Pricing
Configuration
Sign in for option pricing- w/10m (33ft) per Sensor w/Ferrules on WiresCS700H-10m
- w/20m (66ft) per Sensor w/Ferrules on WiresCS700H-20m
- w/30m (100ft) per Sensor w/Ferrules on WiresCS700H-30m
Select a configuration to add to your quote
- Model:
- CS700H
- Item Number:
- 45161
- Warranty:
- 1 year
- Lead time:
- 45 days
Overview
The CS700H, manufactured by HS Hyquest Solutions, is a high-end heated tipping bucket rain gage with an 8 in. orifice and a heavy duty cast aluminum base. It measures precipitation in 0.01 in. increments at temperatures down to -20°C. This heated rain gage is ideal for locations where intense rainfall events may occur, and it is used in environmental monitoring applications.
Key Advantages
Ideal for high-intensity precipitation, even in freezing conditions
Technical Description
The CS700H funnels precipitation into a bucket mechanism that tips when filled to its calibrated level. Each tip is marked by a dual reed switch closure that is recorded by a data logger pulse count channel. After measurement, the water drains through two orifices (accepts 12 mm tubing) in the base, allowing the measured water to be collected in a separate container.
The CS700H contains an internal siphon mechanism that causes precipitation to flow at a steady rate to the tipping bucket mechanism (regardless of intensity). The siphon allows the sensor to make accurate measurements over a range of 0 to 50 cm per hour.
The CS700H includes an internal snow sensor that is activated when the air temperature drops below 4°C. If the snow sensor detects snow in the catch area (funnel), the heating elements automatically turn on and keep the funnel temperature at +10°C. To conserve power, the heater goes into a wait mode when snow has not been detected for 18 minutes. The heating element is also automatically deactivated when the air temperature drops below -20°C.
Benefits
- Extra-heavy metal construction for durability and long life
- Low power consumption
- More accurate measurement of high-intensity precipitation
- High precision—tips at 0.01-in. increments
- Accuracy is ±3 percent at high precipitation rates of 500 mm/hr
- Heater elements can run on either batteries or ac power
Specifications
- Sensor Type
- Tipping bucket with siphon and dual reed switch
- Measurement Uncertainty
- ±2% @ < 250 mm/h
(9.8 in./h)
- Measurement Uncertainty
- ±3% @ 250 to 500 mm/h
(9.8 to 19.7 in./h)
- Measurement Uncertainty
- 700 mm/h
(27.6 in./h) maximum rate per hour
- Rainfall per Tip
- 0.01 in.
(0.254 mm)
- Measurement Range
- 0 to 700 mm/h
(0 to 27.6 in./h)
- Operating Temperature Range
- -40° to +70°C
- Humidity Range
- 0 to 100%
- Cable Type
- Two-conductor shielded
- Operating Temperature Range
- -20° to +5°C
(for snow sensor and heater)
- Output
- SDI-12
- Total Current Consumption
- 6 mA @ 12 V, 0.072 W
(snow sensor off, heater off)
- Total Current Consumption
- 12 mA @ 12 V, 0.144 W
(snow sensor on, heater off)
- Total Current Consumption
- 5.8 A @ 12 V, 70 W
(snow sensor on, heater on)
- Main Power Voltage Requirements
- 10 to 30 Vdc or 12 to 28 Vac
- SDI-12 Power Voltage Requirements
- 9.6 to 16 Vdc
- Drain Tube Size
- Both filters accept 12 mm (0.47 in.) ID tubing.
- Orifice Diameter
- 20 cm
(7.9 in.)
- Height
- 34.2 cm
(13.5 in.)
- Weight
- 3.3 kg
(7.4 lb) with 7.62-m (25-ft) cable
CS700H-AC Option Only
- -NOTE-
- Additional specifications are provided in Phoenix Contact’s manual for the Quint-PS/1AC/24DC/10.
- Model Name
- Quint-PS/1AC/24DC/10
- AC Input Voltage Range
- 100 to 240 Vac
- Power Consumption
- ~2.77 A
(120 Vac)
- Power Consumption
- ~1.24 A
(230 Vac)
- Protective Circuitry
- Transient Surge Protection Varistor
- Integrated Input Fuse
- 6.3 A
(slow blow, internal)
- Normal Output Voltage
- 24 Vdc ±1%
